| Prod Model: |
WLD6200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld-6200 |
| External Size: |
7000*5450*3250mm |
| Internal Size: |
6900*3900*2600mm |
| Air Flow: |
20000m3/H |
| Air Speed: |
0.3-0.5m/S |
| Power: |
12kw |
| Vehicle Suited: |
Saloon Car/Jeep/SUV |
| Heating System: |
Diesel Burner |
| Voltage: |
220V/415V/380V/50Hz/60Hz |
| Basement: |
Powder Coating |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Condition: |
New |
| Type: |
Car Spray Baking Booth |
| Substrate: |
EPS |
| Brand: |
Weilongda |
| Paint Mist Treatment: |
Filtered |
Product Description

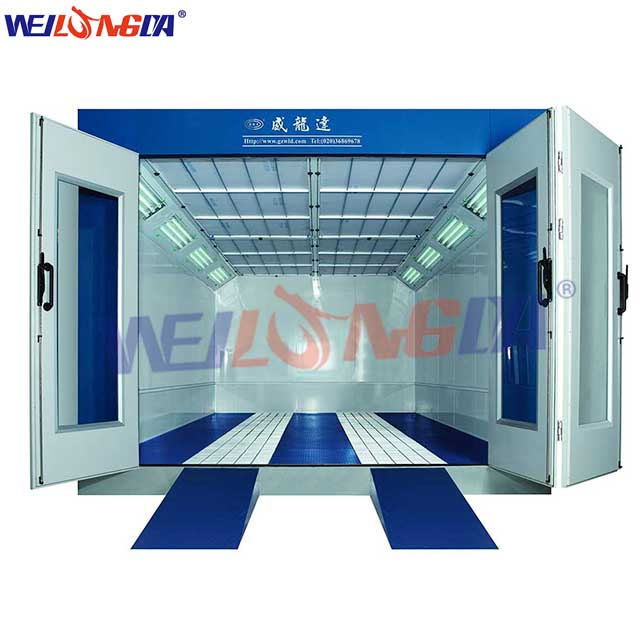

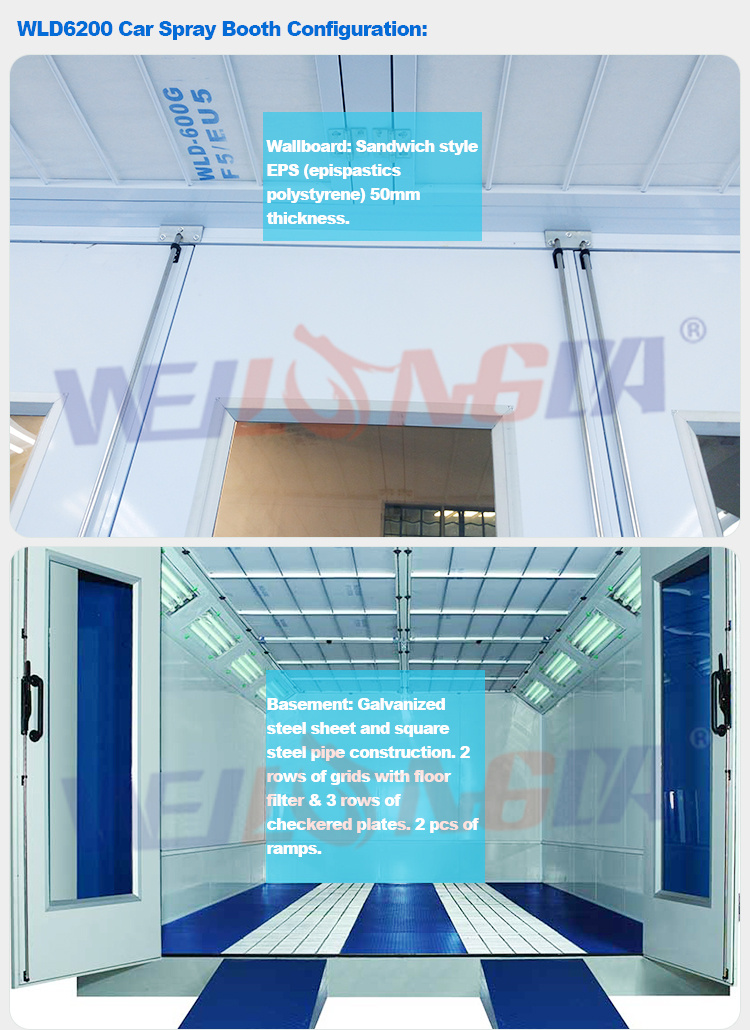

Wld6200 Economic Type Car Paint Spray Booth/Cabina De Pintura configuration: - wallboard: sandwich style eps (epispastics polystyrene) 50mm thickness. galvanized steel roof panel.
- basement: galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

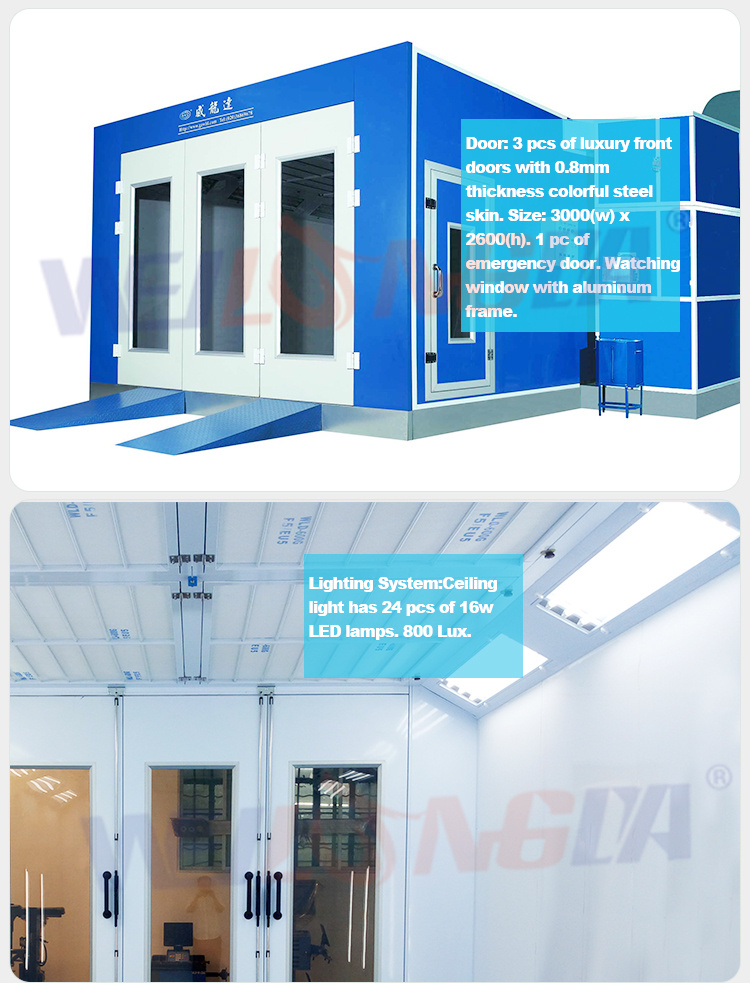

- door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. size: 3000(w) x 2600(h). 1 pc of emergency door. watching window with aluminum frame.

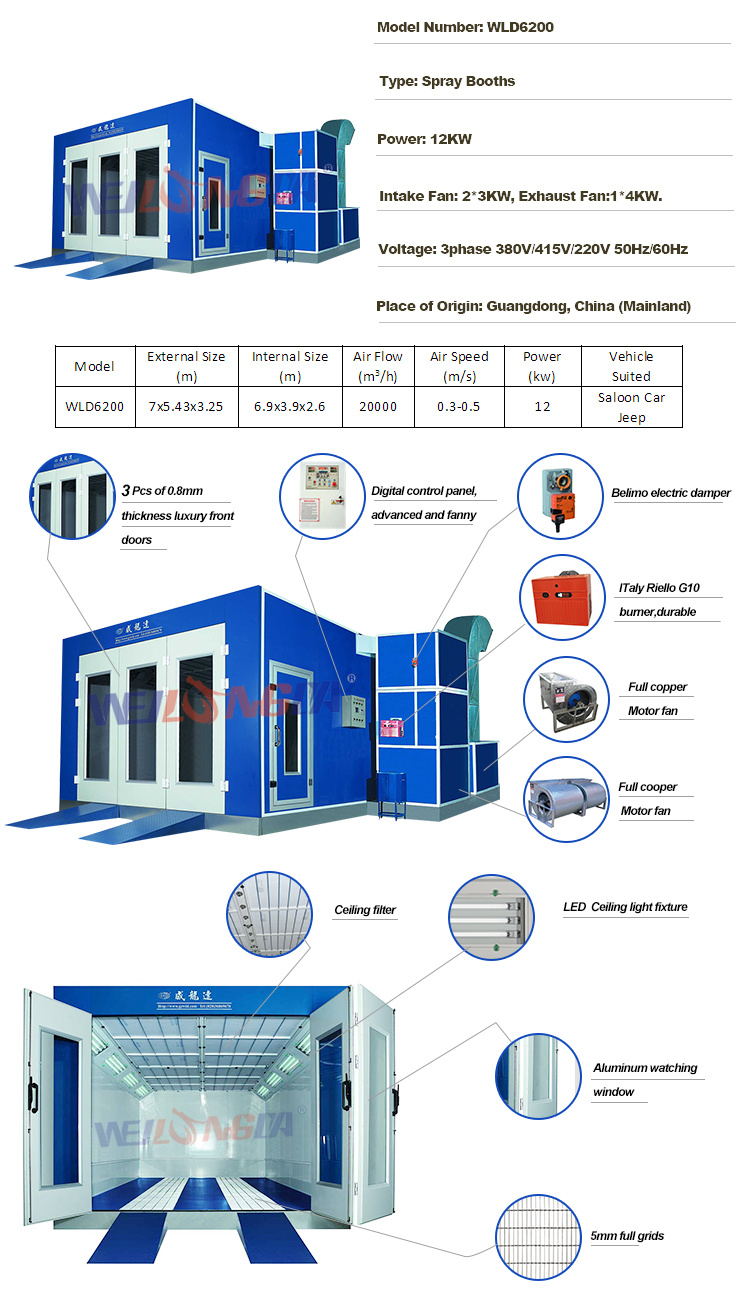

- air circulation system: 2x3kw intake fan,1x4kw exhaust fan. belimo 20n electric damper.
- burner: italy riello g10 diesel burner, 100000kcal/h. the heating time 7-9min(20-60.c). max. temperature
at 80.c. fuel consumption is 4-5kg/vehicle. - heat exchanger: made of stainless steel. the heat exchange rate reaches 85%.
- lighting system: ceiling light has 24 pcs of 16w led lamps. 800 lux.
- air purification: dual filtering structure. the primary filter can capture granules larger than 10μm. ceiling filter capture granules bigger than 5μm. the air cleanliness in the working environment can reaches 98%.
- pollution control system: multi-layer fiberglass filter.
| model | external size (m) | internal size (m) | air flow (m3/h) | air speed (m/s) | power (kw) | vehicle suited |
| wld6200 | 7x5.43x3.25 | 6.9x3.9x2.6 | 20000 | 0.3-0.5 | 12 | saloon car jeep |
why choose weilongda?
1. verified 17 years original big factory,covers more than 18,000 square meters. we don't rent a workshop or factory to manufacture. we built the factory by ourself,so we never move to other places,then you can find us very easily at any time.
2. quality first and service highest are the principle and belief in our weilongda members. we are sincere and honest in the business.
3. we own the biggest product showroom in china; welcome to visit our factory at any time.
4. professional engineer and technician team to make sure perfect product structure,design and layout.
5. with excellent attitude and service,our experienced export sales team members provide good solution for your standard or customized requirements and make sure smooth shipping for your goods.
6. powder coating technology is applied in the production for many parts of the our products,such as beams,frames,cabinets,and basement etc,very antirust,durable and beautiful.
7. high quality raw materials,good facilities and skilled workers to make sure high quality products in the production. quality control system is carried out in the whole production process.
8. good after-sales service.
9. specially verified by famous germany tuv rheinland,more reliable. please watch our tuv video and read tuv report to know more about us.

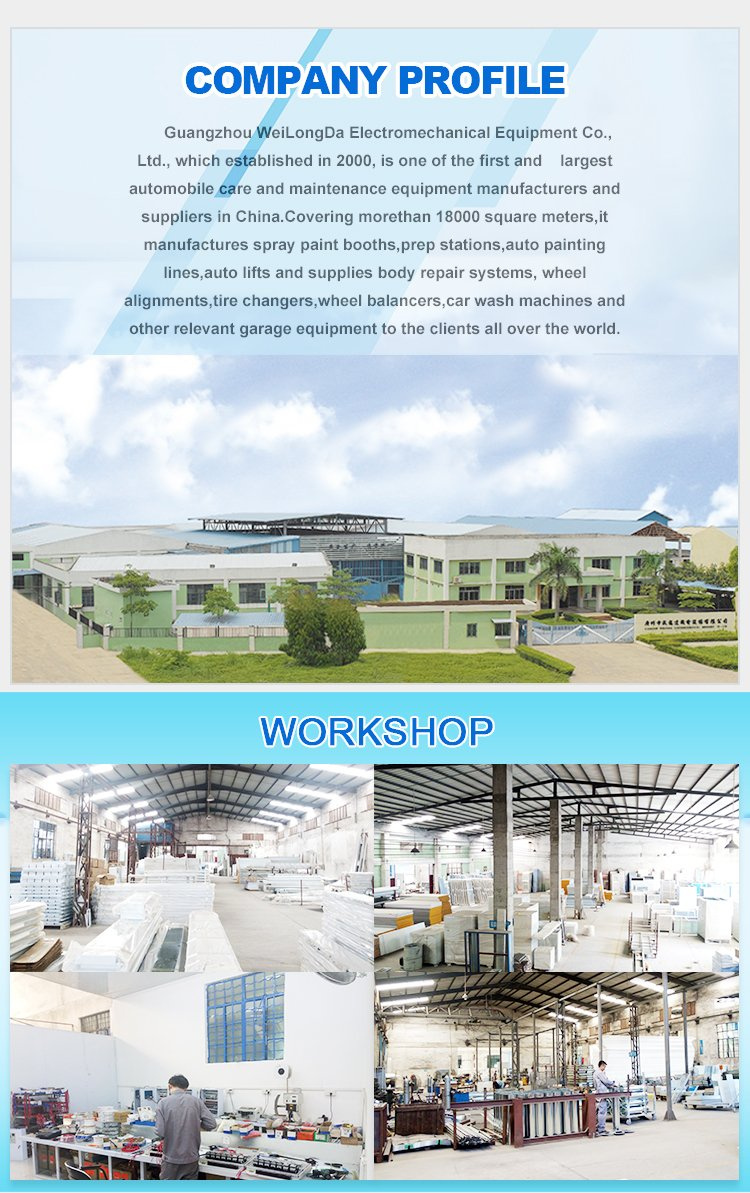

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
With your join, the future is better.
