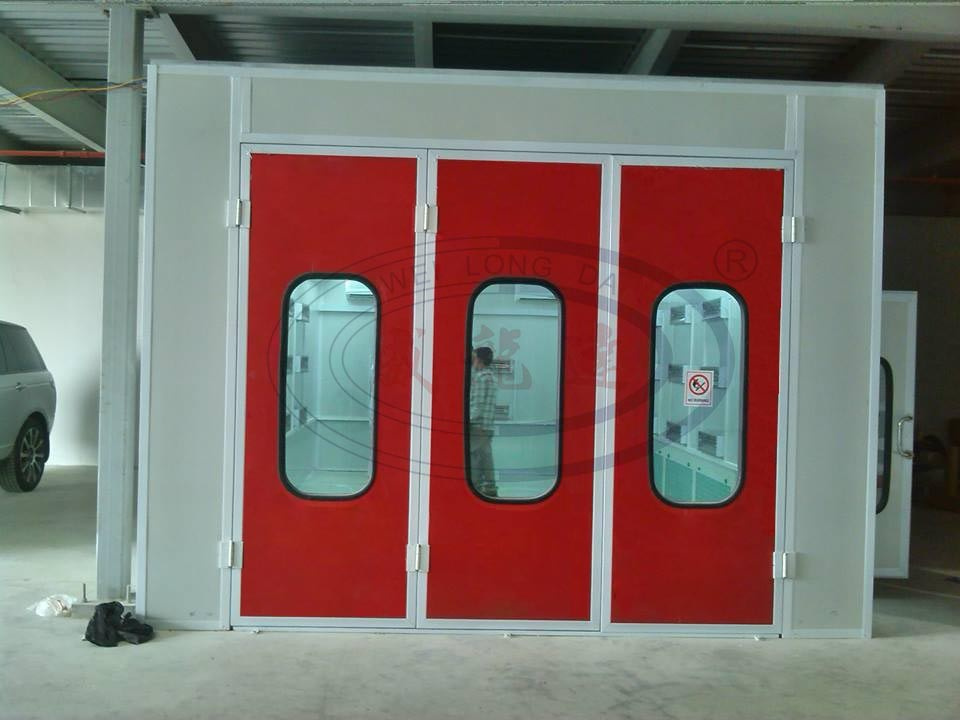

Prod Model: |
WLD6000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
6.9X3.9X2.6m |
External Size: |
7000*5450*3300mm |
Internal Size: |
6900*3900*2600mm |
Air Flow: |
24000m3/H |
Air Speed: |
0.3-0.5m/S |
Power: |
37kw |
Vehicle Suited: |
Saloon Car/Jeep/SUV |
Certification: |
UL |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Infrared Ray |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Substrate: |
EPS |
Brand: |
Weilongda |
Product Description
1. Infrared lamp hot sale car baking oven for paint
2. Real spray booth manufactory in China
3. Save energy, provide more health environment
4.1 year warranty spray booth

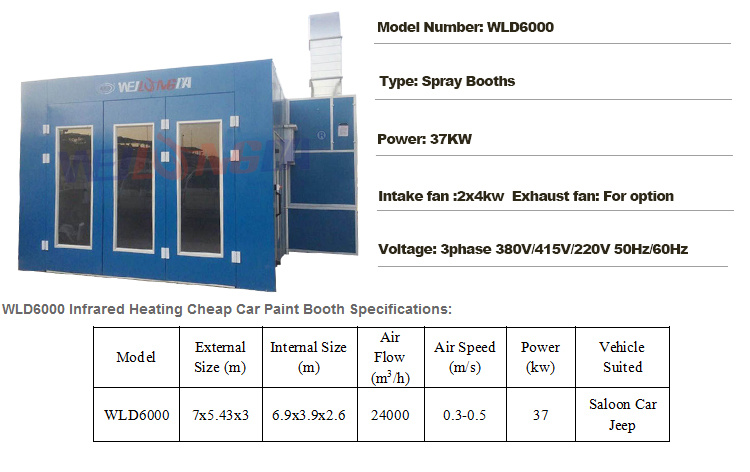

External Size:(mm) | 7000x5430x3000 | Front Door:(mm) Powder Coating Frame | 3000(w)x2600(h) |
Internal Size:(mm) | 6900x3900x2600 | Total Power:(kw) | 37 |

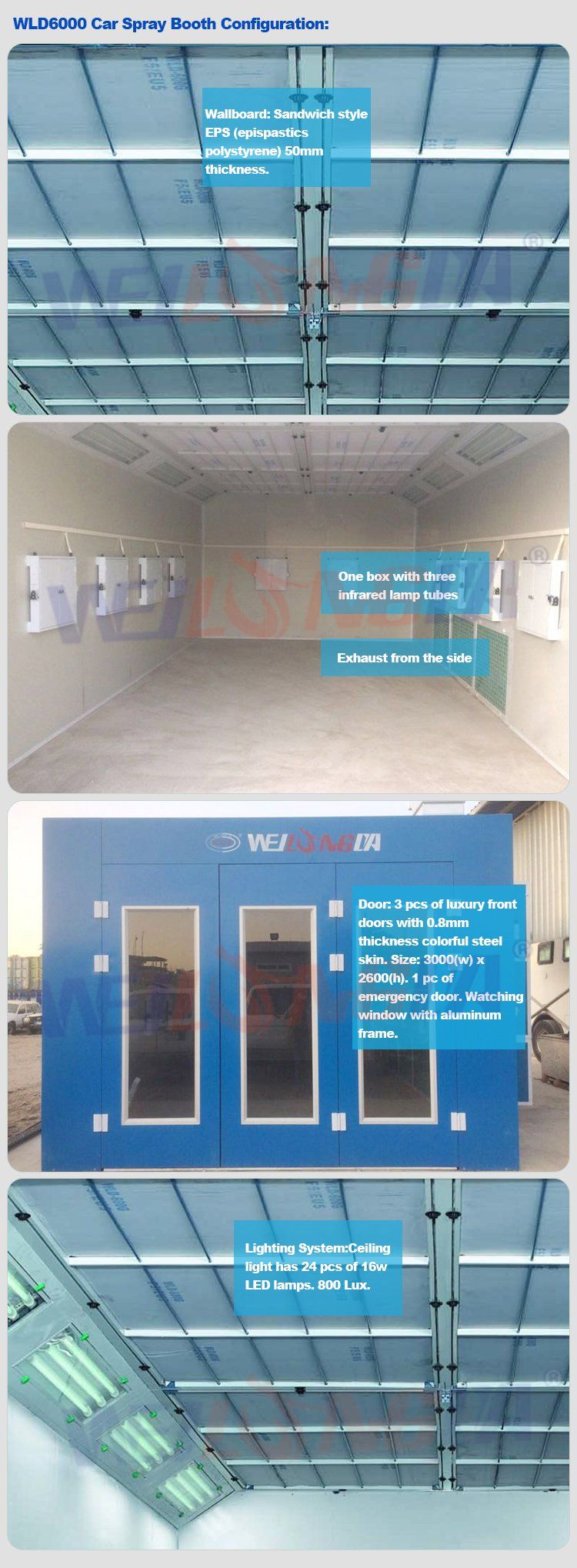

Cabin System | Wallboard | Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, High quality galvanized steel roof panel. |
Basement | No. |

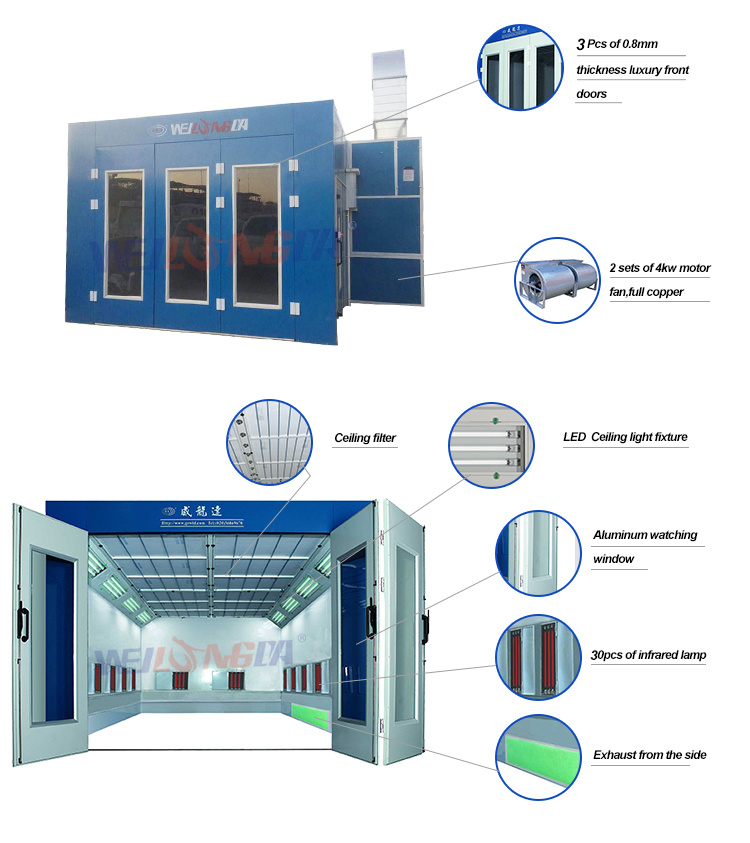

Door | 3 pieces of powder coating front doors. Size: 3000(w)*2600(h). 1 piece of emergency door. |
Air Circulation System | Intake Fan | 2x4kw intake fan. Manual damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h.No exhaust fan |
Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow. |
Heating System | Infrared lamp | Consist of 10 boxes,each set have a cover, a stainless steel mirror reflector and 3 tubes, total 30 infrared tubes. Infrared Heat radiation have a feature of high penetration, efficient, no noise, pollution free etc. |
LED Lighting System | Light tube | Ceiling light has 24 pieces of 16w LED lamps. 800 Lux. the grade of lighting box's dustproof and waterproof reach IP54 grade. |
Filtering System | Pre-filter | Grade G2 plate type fiber glass filter; Dual filtering structure. The Pre-filter can capture granules larger than 10μm. |
Ceiling filter | EU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%. |
Control system | Control panel | Microcomputer control system |
Function | Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication etc, especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe. |
