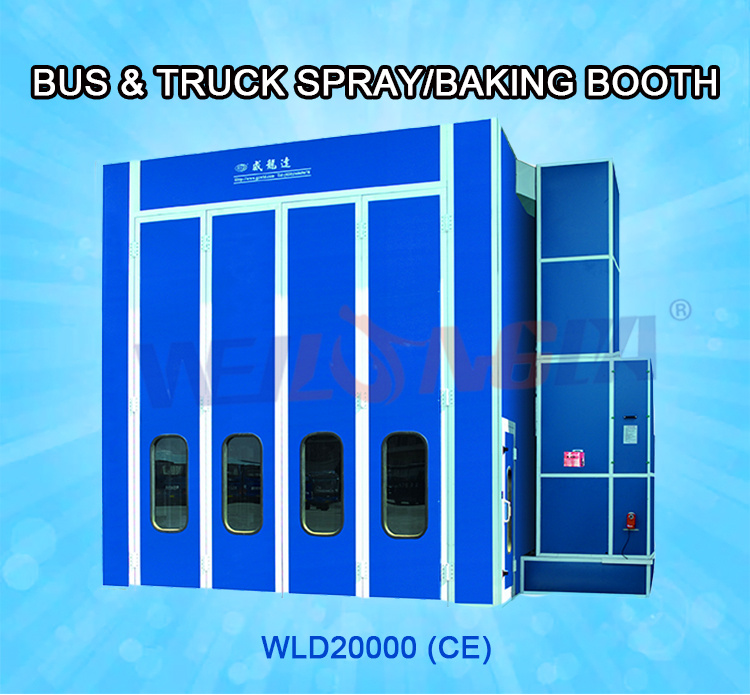

Wld20000 Big Bus and Truck Spray Booth with Ce Approval
| Price: |
US $ 39330-43400set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WLD20000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld-20000 |
| External Size: |
20200*6600*5600mm |
| Internal Size: |
20000*5000*4800mm |
| Air Speed: |
0.3-0.5m/S |
| Air Flow: |
24000m3/H*4 |
| Power: |
61kw |
| Vehicle Suited: |
Bus & Truck |
| Certification: |
CE |
| Airflow Direction: |
Lateral Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS |
| Brand: |
Weilongda |
Product Description
Wld20000 Big Bus and Truck Spray Booth with CE Approval Specifications: - Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
- Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pc of emergency door.

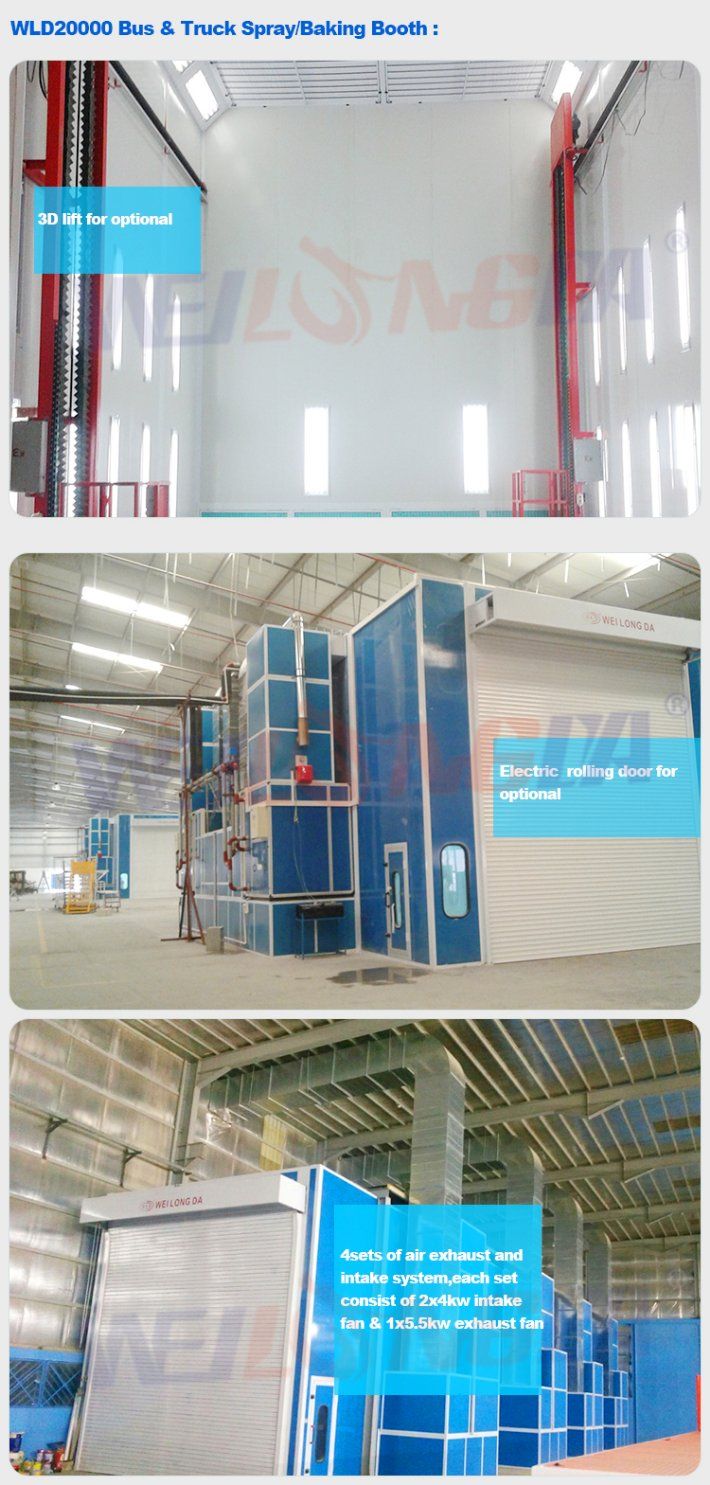

- Air Intake System (4sets): Each set consists of 2x4kw intake fan. Total 8 units of 4kw intake fan. BELIMO 20N electric damper.
- Air Exhaust System (4set): Each set consists of 1x5.5kw exhaust fan. Total 4 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
- Heating System (4set): Each set consists of 1 unit Italy Riello G20 diesel burner 200000Kcal/h. Total 4 units of burners,800000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.
- Lighting System: Ceiling light has 24units x 4pcs of 36w lamps. Side light has 31 unites x 2pcs of 36 w lamps. Total 158 pcs of 36 W lamps. 900 Lux.
- Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
| Model | External Size (m) | Internal Size (m) | Air Flow (m3/h) | Air Speed (m/s) | Power (kw) | Vehicle Suited |
| WLD20000 | 20.2x8.85x5.6 | 20x5x4.8 | 24000 x 4 | 0.3-0.5 | 61 | Bus&Truck |
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
With your join, the future is better.
