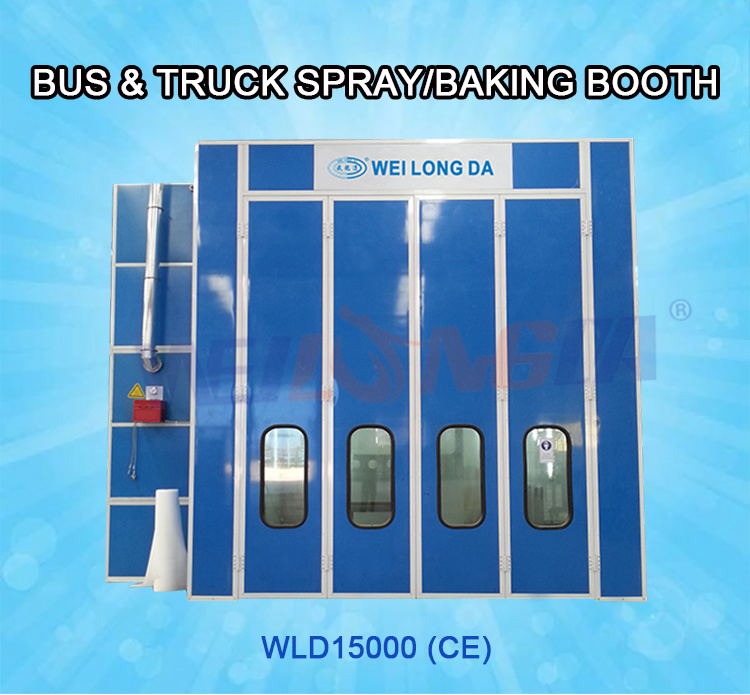

Wld15000 Autobody Bus Paint Booth Supply in Cananda
| Price: |
US $ 21974-25000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WLD15000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld15000 |
| External Size: |
15150*8850*5600mm |
| Internal Size: |
15000*5000*4800mm |
| Air Flow: |
24000m3/H*3 |
| Air Speed: |
0.3-0.5m/S |
| Power: |
47kw |
| Vehicle Suited: |
Truck and Bus |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS or Rock Wool |
| Brand: |
Weilongda |
Product Description
Wld15000 Autobody Bus Paint Booth Supply In Cananda Specifications: | External Size | L15150×W6600×H5600(mm) | Air Flow | 24000m³/h×3 |
| Internal Size | L15000×W5000×H5000(mm) | Air Speed | 0.3~0.5m/s |
| Main Door Size | W4000×H4800(mm) | Fuel Consumption | 4~5kg/vehicle |
| Total Power | 47KW | Application | Saloon Car/Jeep/Wooden/Furniture |

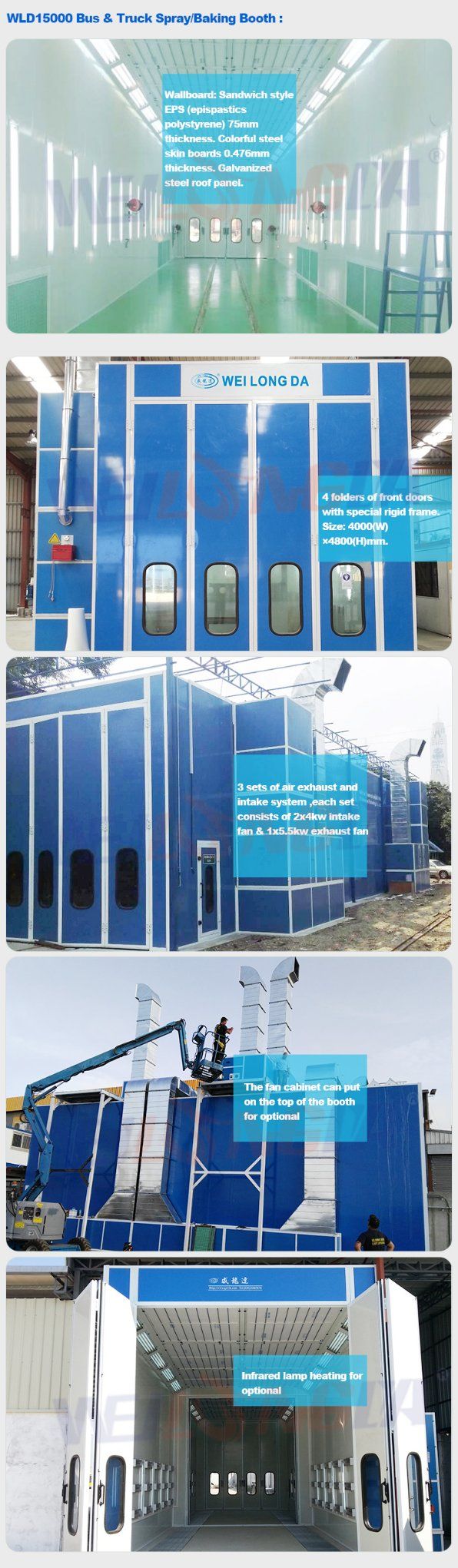

| Wallboard | 75mm EPS, foam density is 14kg/m³. 0.476mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight. |
No Basement
(alternative) | 1. exhaust from two sides of wall panels. |
| 2. dig a concrete pit (we will supply 2 rows of grids with floor filter and pit drawing). |
| Door | 4 folders of front doors with powder coating frame, size: W4000×H4800 (mm). 2pcs of service doors, size: W800×H2000 (mm). |
| Fan(3 groups) | Each group consists of 2×4KW centrifugal intake fans, 1×5.5KW centrifugal exhaust fan, totally 6 sets of 4KW centrifugal intake fans and 3 sets of 5.5KW centrifugal exhaust fans. Our centrifugal fans are introduced from Siemens technology, supply large air flow to the working environment at low noise. |
| Air Pipe | Made of galvanized steel sheet, consist of 4pcs of straight pipes 750*750*1000 and 1pc of elbow. |
| Air Purification | Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter captures granules larger than 5μm. The air cleanliness in the working environment can reach 98%. |
| Burner(3 groups) | Each group consists of 1 set of Italy Riello G20 diesel burner, 200000Kcal/h, totally 3 sets of burners. The heating time is 5~7min (20~60ºC). Max. temperature is 80ºC. |
Heat Exchanger
(3 groups) | Each group consist of 1 sets of heat exchanger, made of stainless steel, two layers and two wings for temperature rising quickly and dissipating more heat, the heat exchange rate can reach 85%. |
| Control Box | Micro-soft computer control box, use high quality electronic component, the temperature and the drying time is accurately shown. Equipped with overheat, overload & short-circuited protected, safe and reliable. |
| Damper | BELIMO 20N electric damper. |
| Ceiling Light | 18 units × 4pcs=72pcs of LED lamps. |
| Side Light | 22 units × 2pcs=44pcs of LED lamps. |

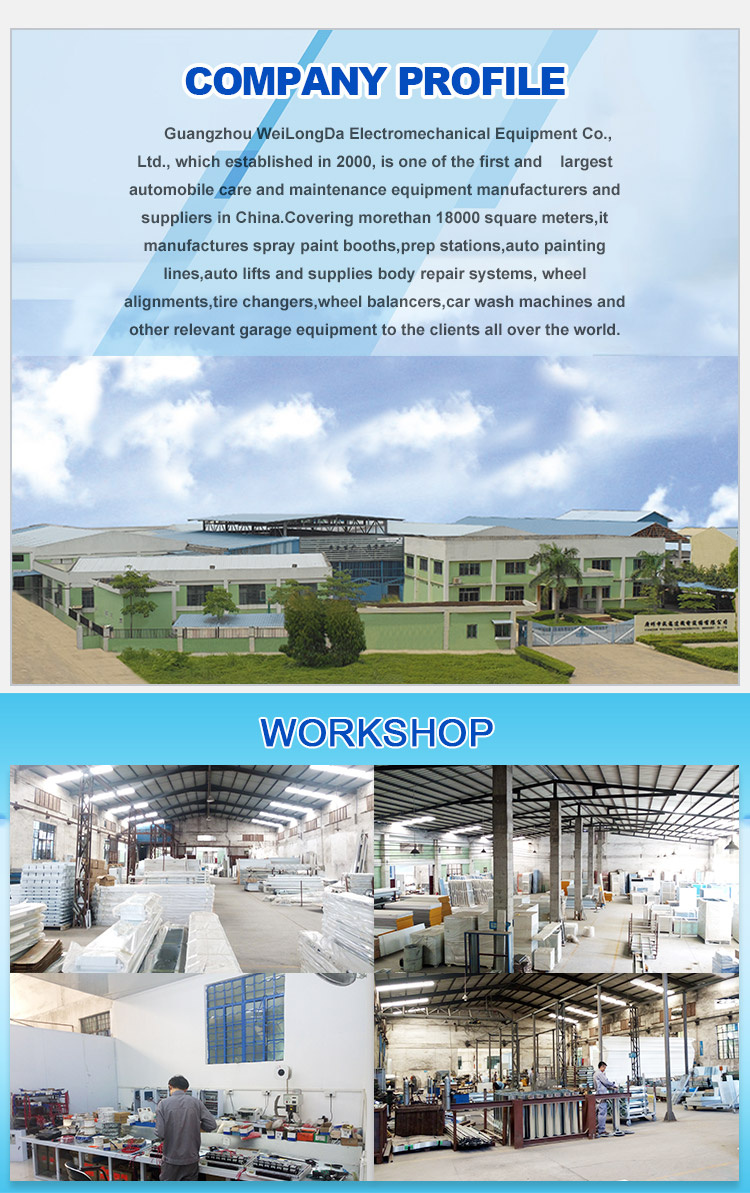

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
