Guangzhou Weilongda Electromechanical Equipment Co., Ltd. >> Wld-S-24t Automatic and Synchronized Heavy Duty Vehicle Scissor Lift

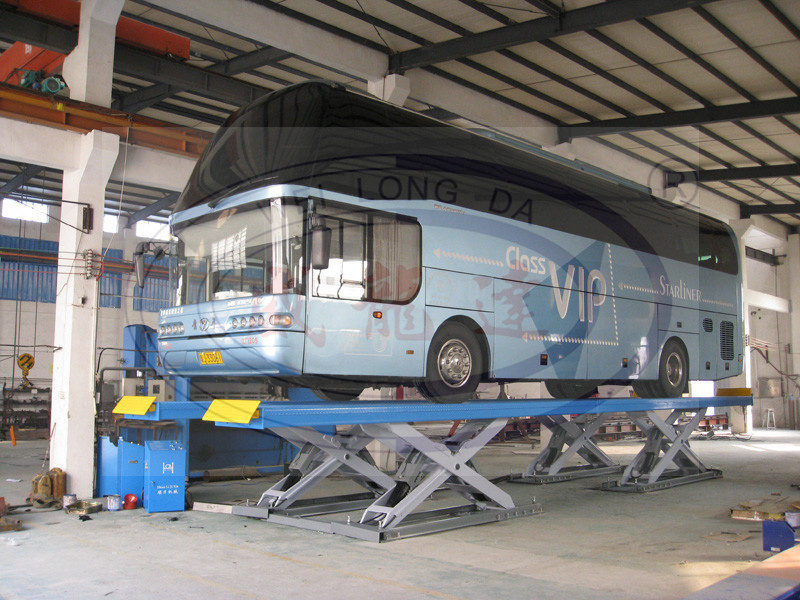

Wld-S-24t Automatic and Synchronized Heavy Duty Vehicle Scissor Lift

Wld-S-24t Automatic and Synchronized Heavy Duty Vehicle Scissor Lift
Price: US $ 39350-49350/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Prod Model: WLD-S-24T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Wld-S-24t
Capacity: 24000kgs
Lifting Height: 1980mm
Length Of Platform(Exclude The Ramp): 11720mm
Width Of Platform: 850mm
Original Height: 390mm
Motor Power: 380V/5.5kw
Pressure Of Air Supply: 0.4-0.6MPa
Type: Four Cylinder Hydraulic Lift
Certification: CE
Design: Scissor
Lifting Capacity: 24t
Brand: Weilongda

Product Description

Technical Parameter:

ModelWLD-S-24T
Lifting Capacity24000kg
Lifting Height1980mm
Platform Length11720mm
Platform Width850mm
Initial Height390mm
Motor Power380V 7.5KW
Air Pressure0.4-0.6Mpa

Features:

1. built-in anti-explosive equipment in the oil tank;

2. design and manufacture according to the introduction of Italy technology.

3. adopt four hydraulic cylinders and our insurance devices to make sure good synchronizationperformance.

4. the main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable;

5. conjoined and X structure, using high quality steel plate, made and designed by high precision CNC machine technology to overcome the defects of insufficient strength, easy rust and easy deformation etc.

6. the stable performance of the oil level regulating devices the requirement of high precision and better synchronization performance;

7. open the pneumatic rack insurance device automatically when declining. the structure is more reasonable and safe. oilless and ultra abrasive resistance slider;

8. adopts hydraulic and mechanical lock two insurance device;

9. the platform is made of ultra thick checkered plate and ultra thick high strength square tube to make sure its higher strength;

10. 20T/30T are customizable, the sub lift is optional.
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
