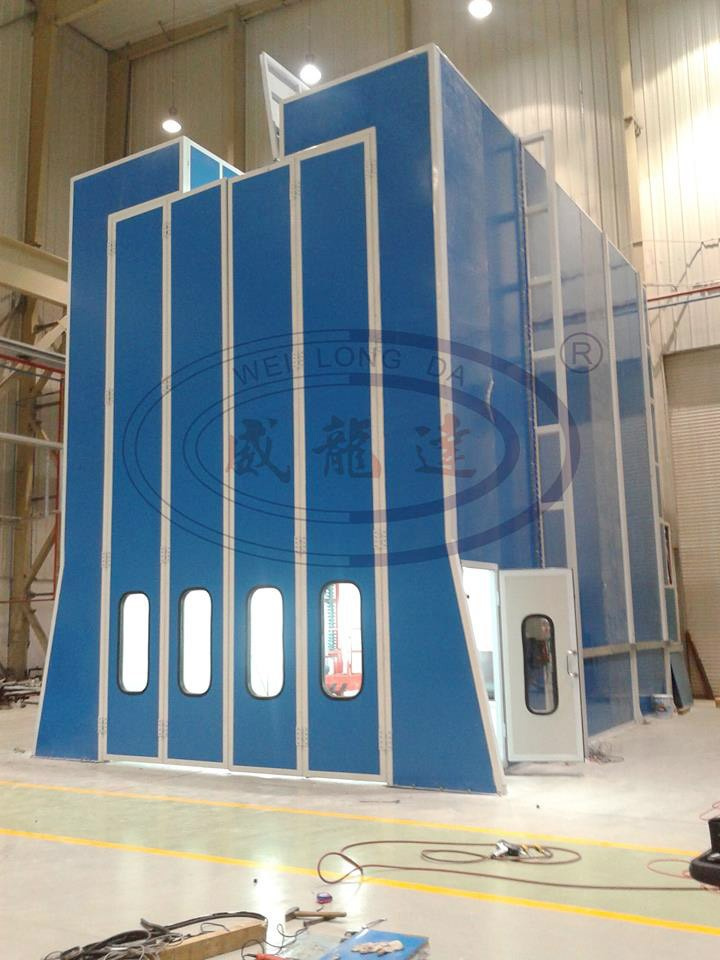

Wld-RS Industrial Transformer Roof Slot Roof Open Spray Painting Booth with 3D Lifter

Name: Wld-RS Industrial Transformer Roof Slot Roof Open Spray Painting Booth with 3D Lifter
Brand: ibuyautoparts.com
SKU: 753811615
Availability: InStock
Rating: 4.3 (82 reviews)

Price:	Negotiableset
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

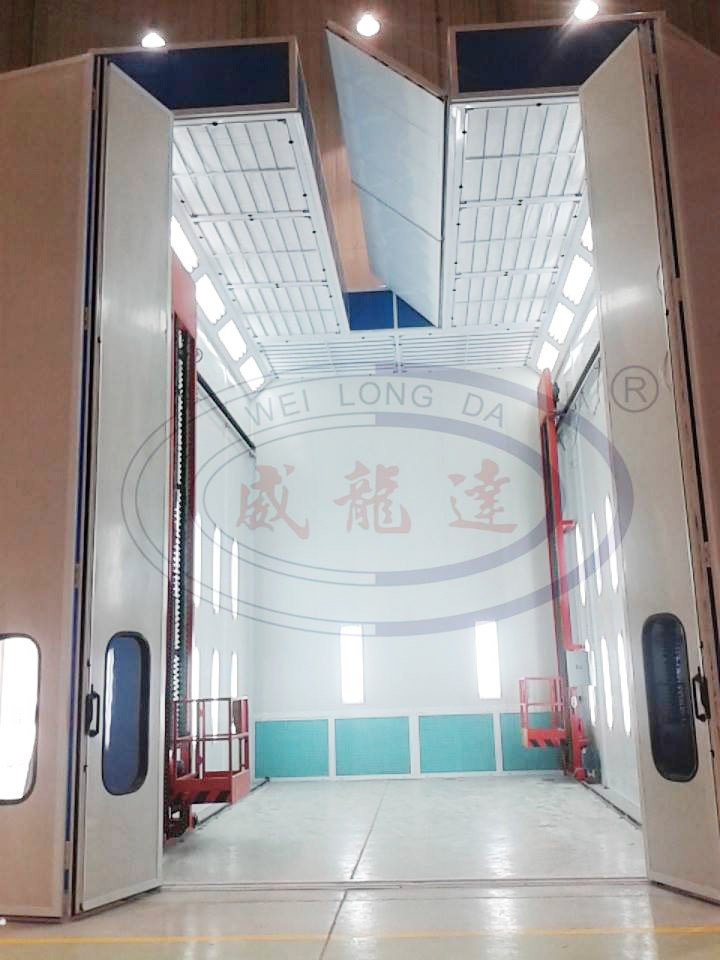

Top openable spraying booth,design for heavy workpiece

(CE)(TUV) Customized industrial 8m Spray Painting Booth For Transformer Specifications: (other sizes can be customized upon your requriement,3D lifter for option)

External Size:(mm)

9500x5650x7600

Front Door:(mm)

Aluminum Frame

4000(w)x7000(h)

Internal Size:(mm)

8000x5500x7000

Total Power:(kw)

Cabin System	Wallboard	Sandwich style EPS (epispastics polystyrene) 75mm thickness, Colorful steel skin boards 0.476mm thickness .Galvanized steel roof panel.
	Door	4pieces of front doors with special rigid frame,2 pieces of small doors,each size:0.8m*2m.
Air Circulation System	Air Intake system	Total 4 units of 4kw intake fan. Belino electrical damper.
	Air Exhaust system	Total 2 units of 7.5kw exhaust fan Multi-layer fiberglass filter. Exhaust air from two sides of wallboard
	Air Flow: 48000m3/h. Air Speed: 0.3-0.5m/s.
Air Purification System	Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Lighting System	Ceiling light has 10units×3pieces of 36w lamps .Side light has 24units×2pieces of 36w lamps .Total 116pieces of 36w lamps.900 Lux.

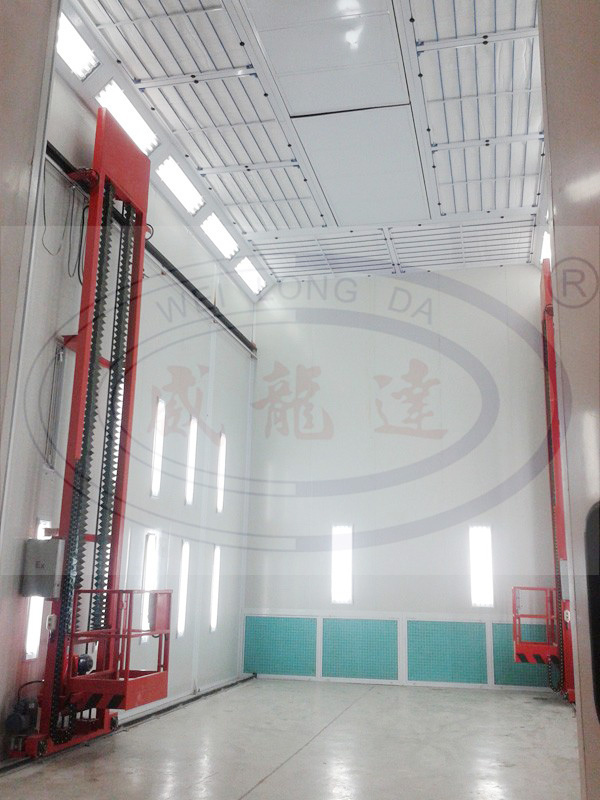

3D lift	Two side with 3D lifts

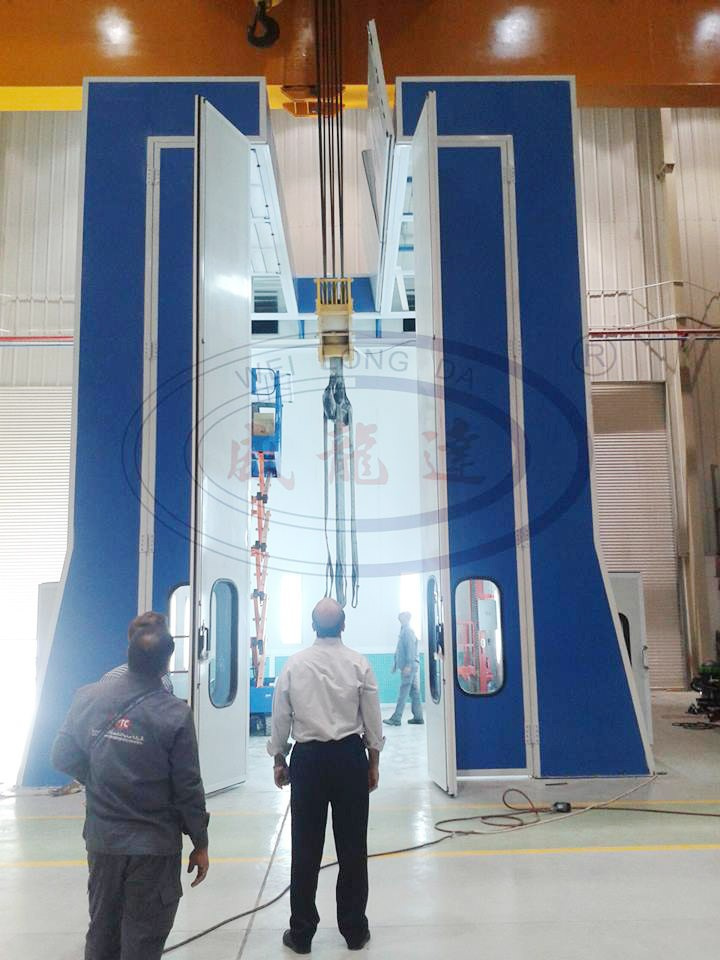

Top opening	L6m*W1.5m

Prod Model:	WLD-RS-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Paint Mist Treatment:	Dry-type
Condition:	New
Heating Mode:	Without Heating
Substrate:	Colorful Steel EPS
Airflow Direction:	Side Draft
Type:	Industrial Spray Baking Booth
Brand:	Weilongda

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
