Wld-B Economy Auto Car Body Frame Bench

Name: Wld-B Economy Auto Car Body Frame Bench
Brand: ibuyautoparts.com
SKU: 762712005
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 6180-8180/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

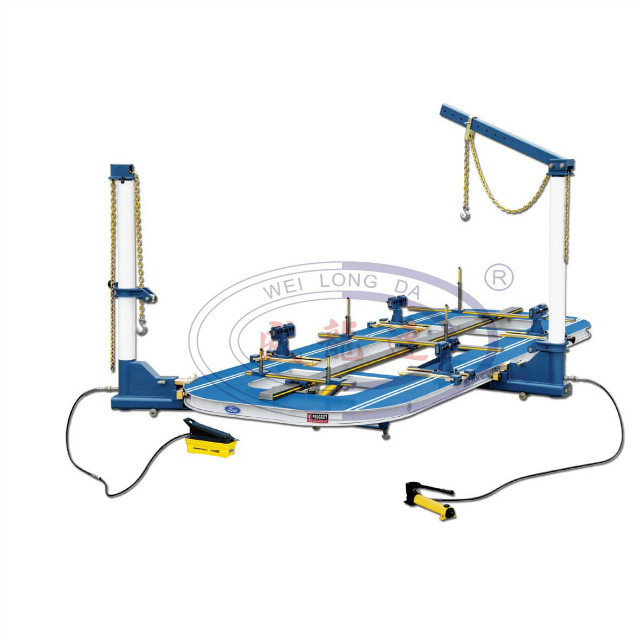

WLD-B Economy Auto Car Body Frame Bench

Factory costs supply. Good quality and very competitive price.

Technical Parameter:

Working-bench Length	5180mm
Working-bench Width	2000mm
Working-bench Height	530mm
Equipment Overall Weight	2200kg
Hydraulic Power	69MPa
Power Pulling capacity	10T
Radius of Pulling	360°
Measuring Accuracy	±2mm
Air Supply Required	0.6-0.8MPa
Equipment Overall Weight	2200kg
Lifting Capacity	3.5T

Features:

1. General vehicle body repairing system model WLD-B is an economic type developed by our company with strong performance.

2. Working bench is welded with steel sheet featured high strength and not easy to deformation, Hydraulic incline main lifting structure enable an easy and convenient vehicle's loading on ramp.

3. Equipped with the flexible and convenient moving structure of two drawing towers which enables an easy tower's move and fix in a circle along the bench 0-360 degrees.

4. Oil cylinder vertically mounted enables a strong pulling force without any component force.

5. Movable 3D mechanical measuring system featured a convenient operation and high accuracy.

6. General clamp is applicable on clamping of various cars of home and aboard.

7. Jig and auxiliary of different features can satisfy any repairing operation on distortion in any form.

8. Global-simultaneous car-body database ensure the providing of the latest and fastest car-body data.

Prod Model:	WLD-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	5180X2000X530mm
Hydraulic Power:	69MPa
Tower Pulling Capacity:	10t
Radius Of Pulling:	360°
Measuring Accuracy:	±2mm
Lifting Capacity:	3.5t
Weight:	2200kgs
Type:	Flatbed-type
Max. Lifting Capacity:	3.5T
Certification:	CE
Condition:	New

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
