Wl-D-880u Series Mobility Wheelchair Lifts for Van and Minibus and MPV
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Introduce :

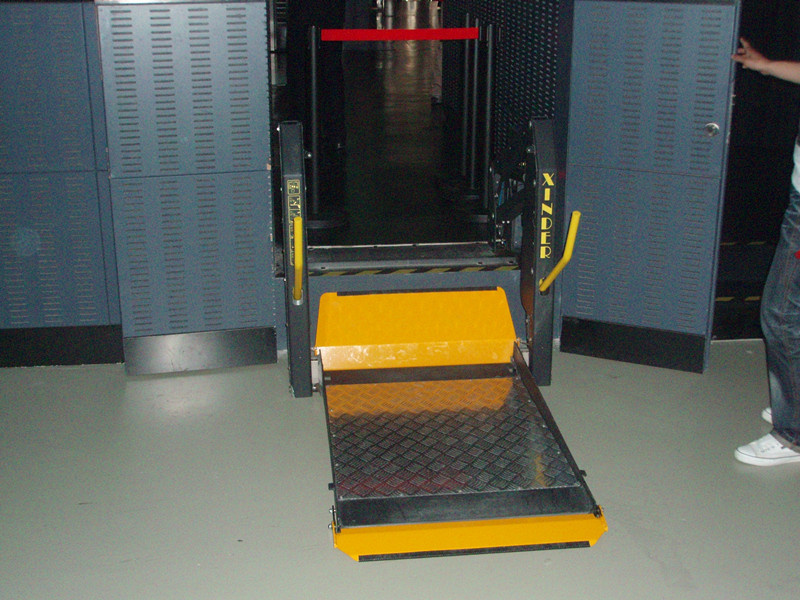

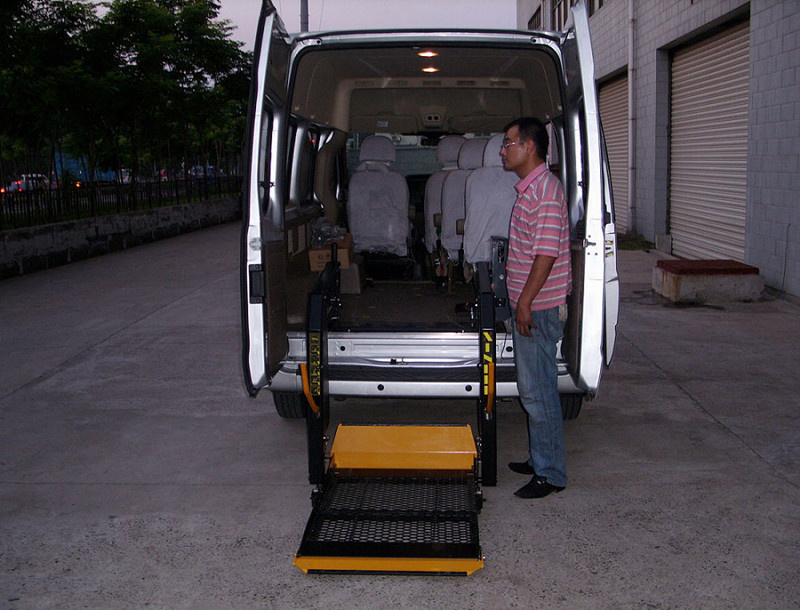

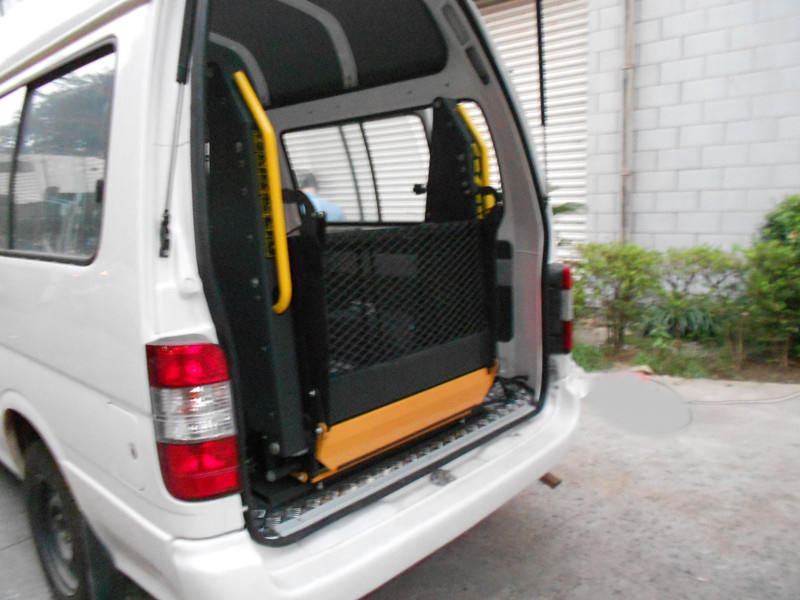

WL-D-880U wheelchair lift
This wheelchair life, with a unique "fold-in-half" design, provides an unobstructed view for the driver, helps to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Moreover, because the flatform folds when stowed, no raised-roof modification for your personal vehicle is required-even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy to maitain. There are so mang other advantages, such asadded safety benefit of minimized blind spots, unique folding platform accommodating longer platform scooters and wheelchair without requiring raised roof or door, automatic inboard/outboard rollstops, stable and compact when stowed, powerfulhydraulic pump, built-in manual back-up system and so on.
Advantages:
. Exclusive split-platform design allows clear access to the vehicle's interior
. Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
. All-steel frame features convenient handrails for increased comfort and security
. Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
. Pre-lubricated bearings at all major pivot points offer long-term durability
. High gloss, polyester powder coat finish resists corrosion
. Built in manual backup system
Details are as follows:
Loading capacity: 350 kg
Own weight: 134 kg
Electric system: 12-24 Volts
Max working pressure: 14 Map
Platform dimension: 1150*720mm
Max floor height: 880 mm
Auxiliary emergency hand pump
Technical specification:
Model | WL-D-880-1150 | WL-D-880S-1150 | WL-D-880U-1150 | WL-D-880-1250 | WL-D-880S-1250 | WL-D-880U-1250 |
| Platform size | 1150*720 | 1150*720 | 1150*720 | 1250*820 | 1250*820 | 1250*820 |
| overall width | 1135 | 1135 | 1135 | 1235 | 1235 | 1235 |
| overall height | 1225 | 1225 | 1130 | 1225 | 1225 | 1130 |
| overall length | 440 | 440 | 500 | 440 | 440 | 500 |
| max lifting height | 880 | 880 | 880 | 880 | 880 | 880 |
| Volt | 12-24V | 12-24V | 12-24V | 12-24V | 12-24V | 12-24V |
| max working pressure | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa |
| loading capacity | 350KG | 350KG | 350KG | 350KG | 350KG | 350KG |
| own weight | 134KG | 134KG | 134KG | 150kg | 150kg | 150kg |
For more detials information, please kindly contact us directly .
Warranty time : 1 year after delivery the products .
| Prod Model: |
WL-D-880U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Size: |
1150*720 / 1250*820mm |
| Loading Capacity: |
350kg |
| Volt: |
12-24V |
| Own Weight: |
134kg |
| Max Lifting Height: |
880mm |
| Packing Size: |
Wooden Case, 1.2*0.6*1.4m |
| Operation: |
Electric (Hand Pump Backup) |
| Working Temperature: |
-20~+50 |
| Operated By: |
Remote Control |
| Type: |
Double Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Two Post |
| Lifting Capacity: |
350kg |
| Brand: |
Xinder |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
