Wiring Car DVD TPMS Tire Pressure Monitor System Internal External Tn200 Tw200

Name: Wiring Car DVD TPMS Tire Pressure Monitor System Internal External Tn200 Tw200
Brand: ibuyautoparts.com
SKU: 810657055
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 46.5-50.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

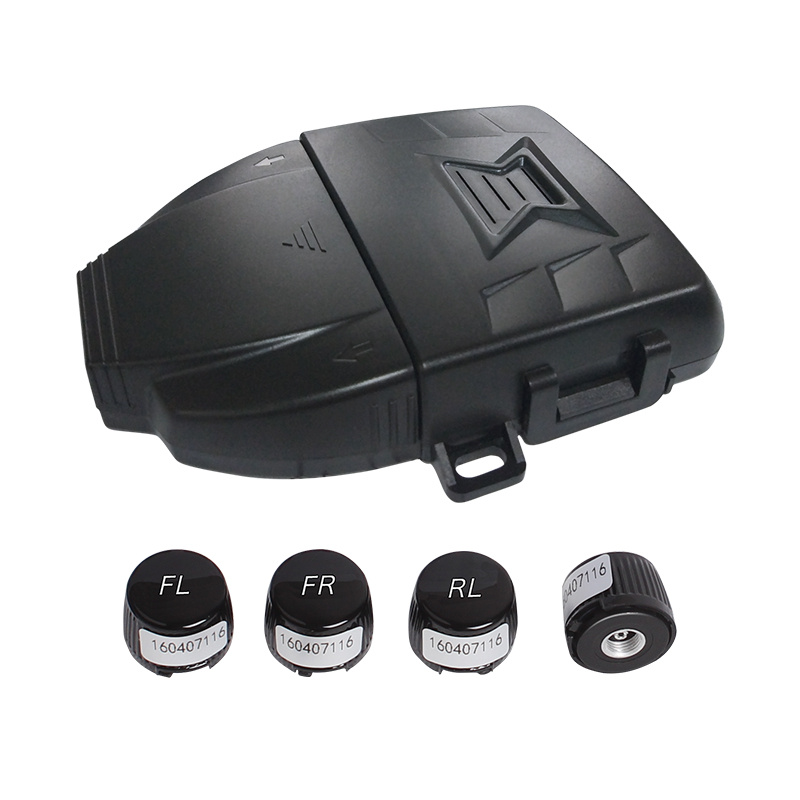

TN200 TW200

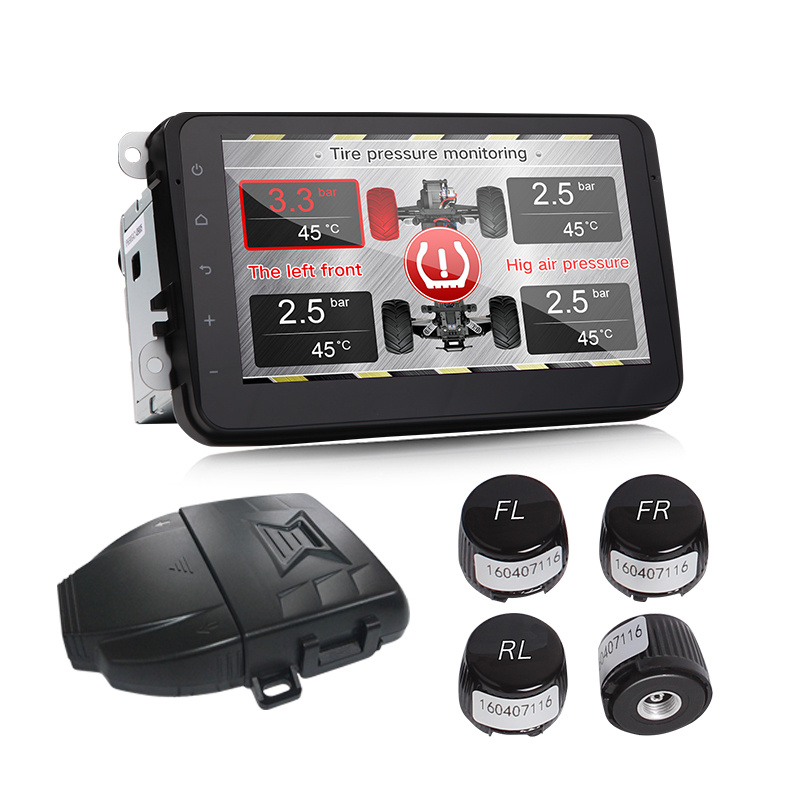

car DVD TPMS tire pressure monitor system
for Wince System

with 4 internal or external sensor.

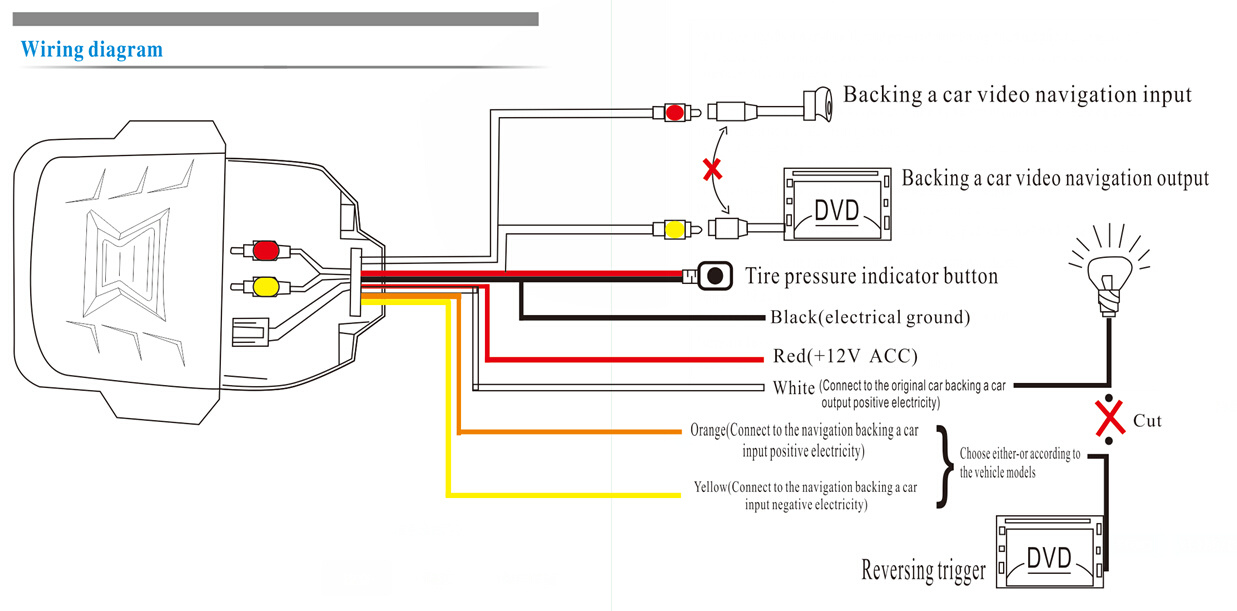

connection:cable

Receiver Technology Parameters
*Rated working voltage: DC12V
*Static average operating current: ≤ 20mA
*Receiving center frequency: 433.92MHZ
*Receiving sensitivity: ≤-110dB
*Operating temperature range: -20ºC - +85ºC
*Low pressure alarm value: 0-8Bar
*High pressure alarm value: 0-8Bar
*High temperature alarm value: 60-90ºC

External Sensor Parameters
*Operating temperature: -20 to 80ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 20mm*17mm (Diameter*Height)
*Battery life: 2 year
*Battery model: CR1632(Replaceable battery)
*Weight: 8 grams

Internal Sensor Parameters
*Operating temperature: -40 to 120ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 73*63*10mm (Length*Width*Height)
*Battery life: 5 years (Non-replaceable battery)
*Weight: 38 grams

Remarks:
1. 36 sets external type/carton; 20 sets internal type/carton
2. MOQ: 100 sets. Mix order avaliable. Sample test order accept. The unit price is more 5USD than 100 sets rate.
3. Quality Certification: CE, FCC, RoHS, NCC, ISO9001
4. Warranty: 1 years

Prod Model:	TW200
Product Name:	Android USB APP TPMS
Internal Sensor:	20X19X6cm
Carton Size:	413831cm
Carton For Internal Sensor:	20sets
Carton For External Sensors:	36sets
Warranty:	1year
Weight For Internal Sensor:	38g

Shenzhen Shenyongtong have been found in 2004, for 12years. A manufacturer with 44 employees; It was established in 2004, located in 5/F, Bbuilding Yufeng Industrial Park, Yanguang 6th Road, Xili Town, Nanshan District Shenzhen City, Guangdong Province, China.

Our company occupies an area of more than 1000 square meters. Our company has its obtianed test report and patent certificates.

We has successuful foreign trading experience in Europe, North America, South America, Southeast Asia and Mideast. Our customers come from all over the world.

It is a reliable and professional manufacture on auto part car aftermarket.

At present we focus on producing tire pressure monitoring system.

There are different models.

We have our own research and developing team.

Our sale team. And have our own brand.

Our product brand have been very famous in Chinese market.

We attend several exibition shows each year.

You are welcome to visit our factory and talk.

We are the best choice for you!
