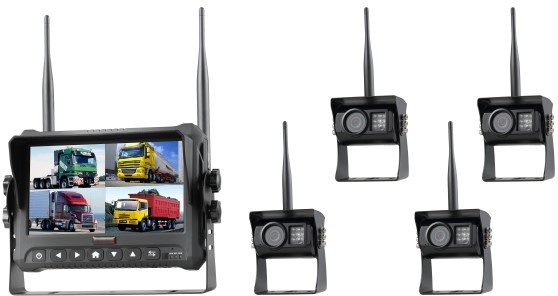

Wireless Backup Camera System with 7" Quad View Display with Built-in DVR

Price:	US $ 100-400/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

No interference digital signal
Frequency: 2400MHZ~2483.5MHZ
Auto scanning ,auto pairing

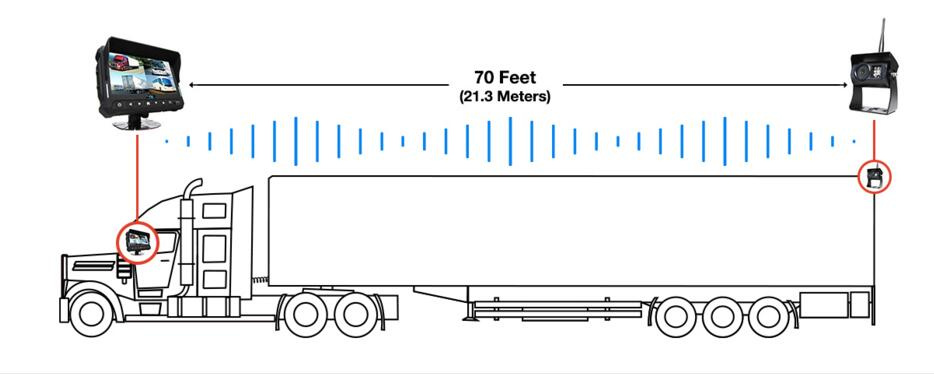

Distance: 30M ( barrier-free)
4CH video, quad screen/Dual screen With three triggers
Real time recording ,support 128G SD card,1 channel is 240 hours,4 channel is 90 hours.
1/2/3/4 channel recorder optional
With Video playback
Built to withstand the shock and vibration associated with industrial applications.
Dust and Waterproof design,all connectors are waterproof.
meet the requirements for hot,cold weather also shock and vibration.
20G force for vibration an 100G for shock.

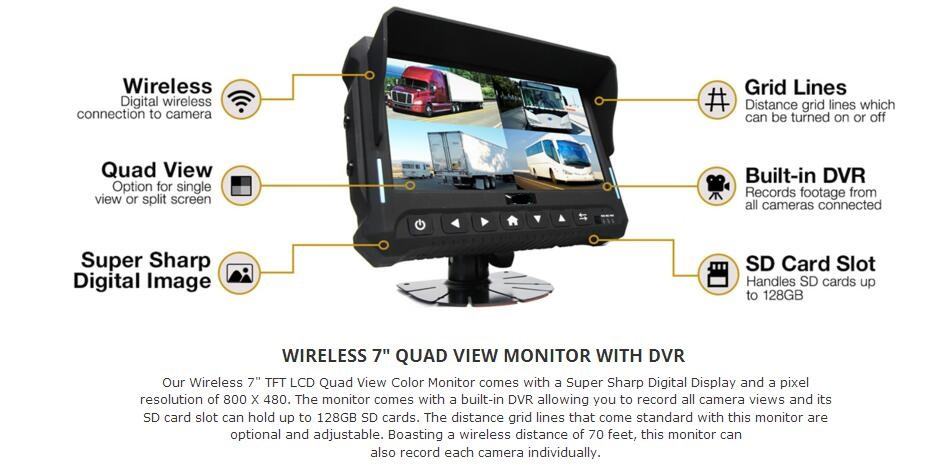

Specification of 7" LCD monitor: (LED digital panel)
1.Resolution: 800 X 3 (RGB) X480
2.Contrast: 500:1
3.Dot pitch:0.192 ( H) X 0.1805 (V )
4.Viewing angle U:50/D:60 L/R:70
5.input power: DC10-32V
6.system: PAL and NTSC
7.respond time: 30ms
8.Shock resistant, specifically design for mobile use
9.Brightness:450nits
10.operation temperature:- 30ºC~+70ºC
11.Operating voltage:DC10-32V

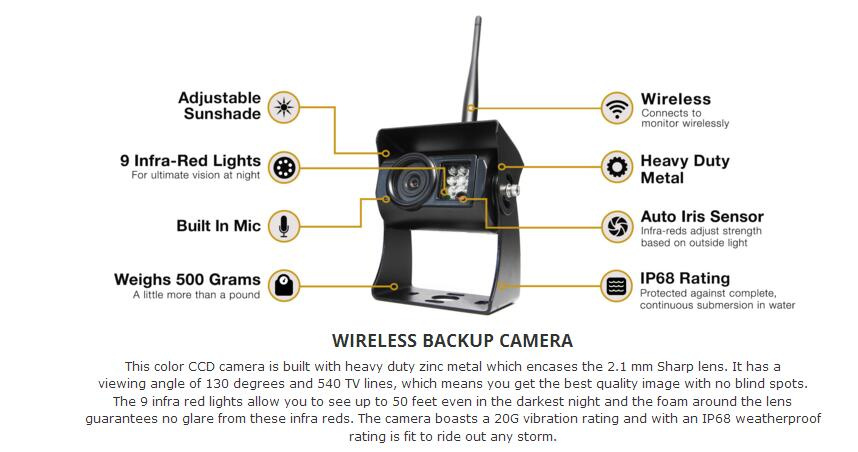

Specification of camera:
day and night camera
1.COLOR sensor
2.Waterproof: IP69K
3.System:NTSC:510x492,PAL 500X582
4.Resolution: 540 TV Lines
5.Minimum Light: 0 Lux(LED ON,18pcs IR)
6.Electron shutter: 1/100,000(s),ON/OFF
7.S/N ratio; More than 48 Db
8.Video output: 1Vp-p 75Ω
9.vibrations resistant, especial design for mobile use
10.120 degree
11.Operating voltage:DC10-32V

Why do you must choose Mingshang?

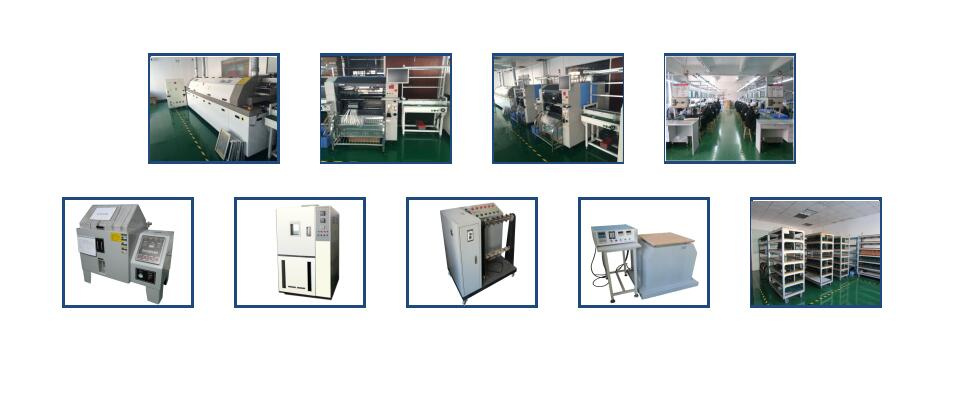

1. Having various test machines to ensure product quality and owning SMT line. More than 14years OEM and ODM experience.

2. Certificated with TS16949:2009&ISO9001:2008, passed CE, FCC, E-mark.etc and compliant with RoHs requirement.

3. We have a strong and enthusiastic team to support you at anytime. Competitive price, top quality, good warranty and after-service are provided.

Welcome to visit our website ----http://www.mingshang.com/

Prod Model:	MS-715RSM
Applicable Model:	Bus, School Bus

Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd

Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.

MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for

- Commercial and School Buse

- RV's and Motorhomes.

- Cargo and Delivery Vans.

- Trucks and Trailers.

Products:

1. Trailer camera system

2. Forklift camera system

3. HD heavy duty camera system in wired and digital wireless

4. Mobile DVR

5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat

6. Recordering 4CH wireless camera system

MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.

MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).

MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
