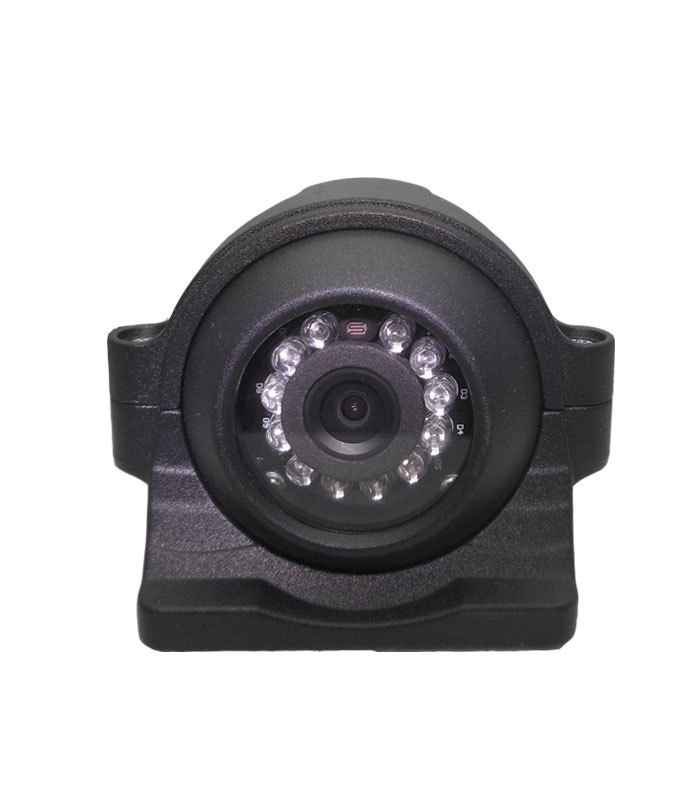

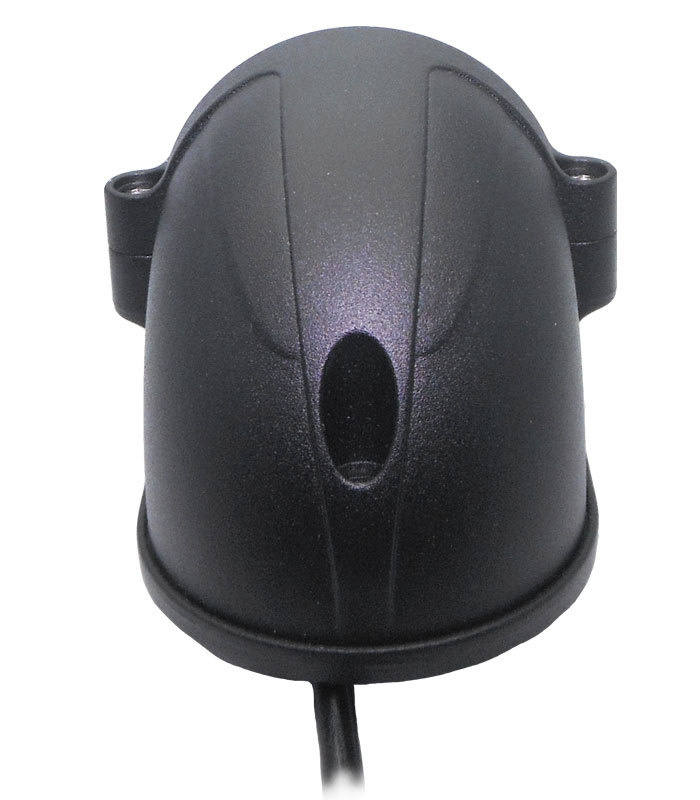

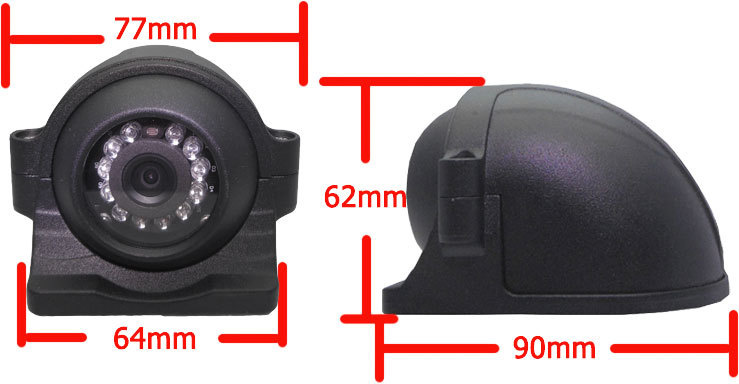

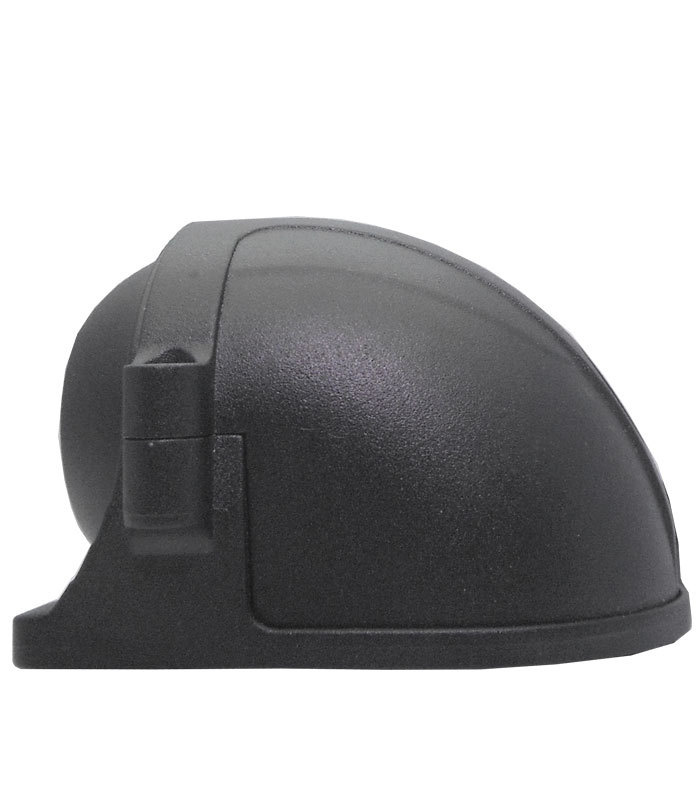

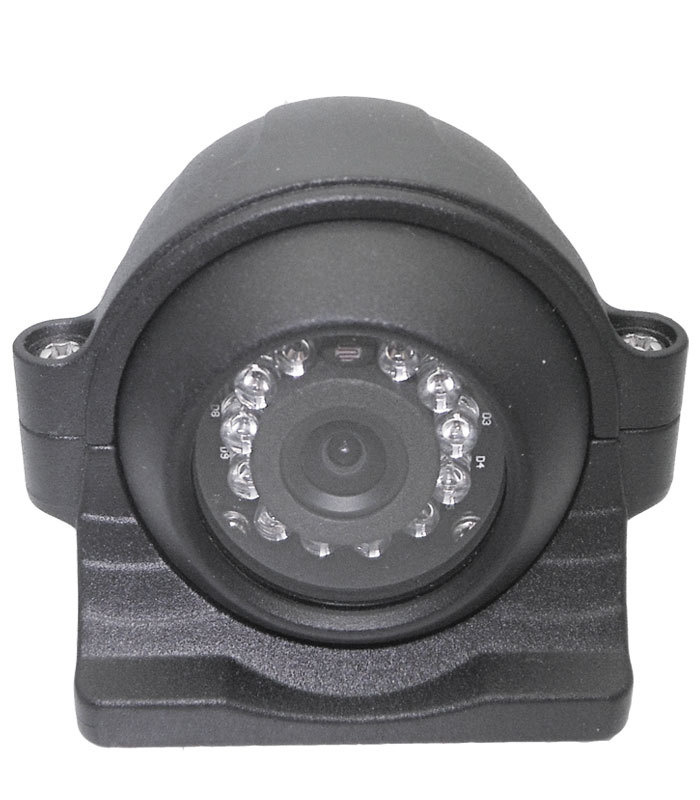

Wired Truck Rear View Camera System DC12V Infrared Night Vision Side View Truck Security Camera1.CMOS/CCD Sensor Optional
2.DC12V/DC12-32V Optional
3.Side view camera
4.4PIN or RCA connector Cable
5.Waterproof Case
Image Device | 1/3'' CMOS | Image Device | 1/3'' SHARP RJ2365 760H CCD |
TV System | PAL / NTSC | TV System | PAL / NTSC |
Effective Pixels | 976(H)*496(V)pixels | Effective Pixels | PAL: 752 (H) × 582 (V) / NTSC: 768 (H) × 494 (V) |
Minimum Illumination | 0.01 Lux / F1.0, B/W: 0.001 Lux / F1.0 |
Minimum Illumination | 0Lux IR ON | Video Output | Composite Signal (1.0 Vp-p, 75 ) |
Video Output | Composite Signal (1.0 Vp-p, 75 ) | White Balance | Auto/ATW1/ ATW2/AWC-SET/MANUAL |
White Balance | Auto | S/N Ratio | Better than 50 dB(AGC OFF) |
S/N Ratio | Better than 50 dB(AGC OFF) | Electronic Shutter | AOTO:1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
Electronic Shutter | AOTO:1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. | Day / Night | Color,B/W(IR SMART),AUTO ( Level Adjust ) , EXT |
Day / Night | AUTO ( Level Adjust ) | Mirror | ON/OFF |
Mirror | Yes | D-WDR | ON/OFF |
Current Consumption | Max. 300 mA | 2D-DNR | ON/OFF |
Power Supply | DC 12 V | Back Light Comp | ON/OFF |
Connection | 4 PIN | Current Consumption | Max. 90 mA |
Anti-vibration | 10 g | Power Supply | DC 12 V |
Operating Temperature | -20°C~70°C, RH 95% MAX. | Connection | 4 PIN |
Storage Temperature | -40°C~80°C, RH 95% MAX. | Anti-vibration | 10 g |
Lens | 2.8 mm, 3.6 mm Optional | Operating Temperature | -20°C~70°C, RH 95% MAX. |
Lens Angle | 120°, 92° | Storage Temperature | -40°C~80°C, RH 95% MAX. |
Sync. System | Internal | | Lens | 2.8 mm, 3.6 mm Optional |
Resolution | 700 TV Lines | | Lens Angle | 120°, 92° |
Microphone | Yes | | Sync. System | Internal |
BLC | Auto | | Resolution | 600 TV Lines |
AGC | Auto | Microphone | Yes |
| | BLC | Auto |
| | | AGC | On/off |
Images:
Package Information:One piece camera in one White box.20sets per carton GW:15kg per carton
Neutral white box packaging or customize color package
Payment Information:T/T, Western Union,Paypal,L/C
Leadtime:sample:within 5days.
Order for 100sets:10-12days.
Order for 200sets:15-18days.
MOQ:One Set The more quantity the lower price.
100sets for OEM
Our Service:
1.All goods will be inspected and test before shipment
2.All inquiry will be responded within 24 hours
3.Support high quality,competitive price and fast lead time
4.Provide lifetime technical support service
5.You can pay your order via T/T,WU,Paypal and so on
SHIVISION CO.,LTD is factory for vehicle rearview products in China.Our main products are

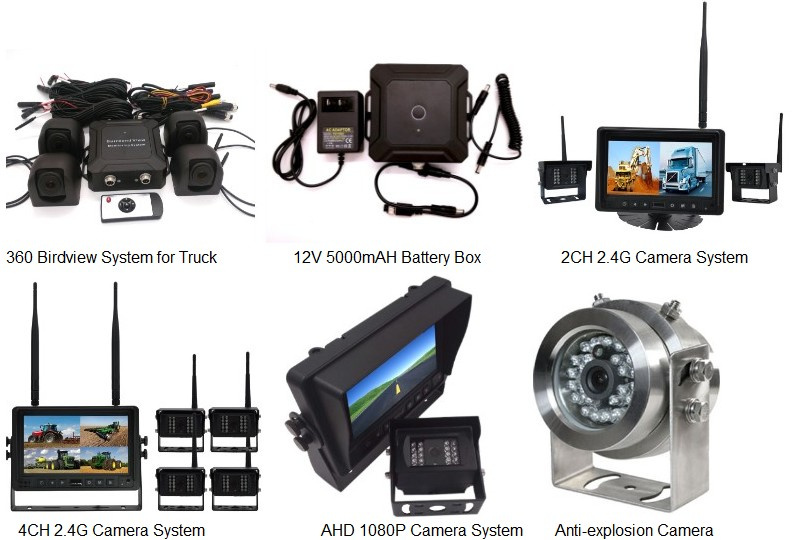

2.4G digital wireless reverisng camera system ,2.4G(120m)and 4G(3km)TX/RX, 360 Bird view camera system for car and truck ,battery box for camera system, installation Magnet for camera ,OEM and ODM also welcome.
Shivision Co., Ltd., located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Since founded in 2003, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers; The products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry_ISO/TS16949: 2009, and we are also in strict accordance with the EU RoHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
