WiFi327 WiFi OBD2 Eobd Scan Tool Support Andriod and Ios for Benz for Toyota for BMW

WIFI327 WIFI OBD2 EOBD Scan Tool Support  Andriod and IOS for Benz for Toyota for BMW

1. Brand: Hongjun

2. Part Name:ODB Scannner
3. Min. order: 50pcs
4. Leading time: 3~6 working days

Product name: wifi327 wifi obd2 eobd scan tool

Product description:

WIFI327 OBD2 scanner is the latest PC-based scan tool.It supports all OBD-II protocols and is dispatched with a number of compatible programs. The output protocol (connection to laptop) is USB cable.It is easy to use and very useful to diagnose cars. It use WIFI327 software.

New function: WIFI + USB

Function:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including: Engine RPM; Calculated Load Value; Coolant Temperature; Fuel System Status; Vehicle Speed; Short Term Fuel Trim; Long Term Fuel Trim; Intake Manifold Pressure; Timing Advance; Intake Air Temperature; Air Flow Rate; Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims; Fuel System status;Fuel Pressure.

Specification:

1. OBD-II Protocols:
ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM

2. Output protocol:RS232
Baud rate:9600 or 38400
Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage:12V, internal protection from short circuits/overvoltages
Nominal idle current:45 mA

3. Available cars:
for Benz 2001/02/03 W203 C200K (ISO)
for BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
for Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)
for Daihatsu YRV Turbo 2006 (ISO)
for Fiat Tipo 2002 (ISO)
for Ford New Focus 2006(CAN)

for Honda Accord 2006 JDM (ISO)
for Honda Accord Euro R 2004 JDM (ISO)
for Honda City GD8 (ISO)
for Honda Civic ES 1.6A (ISO)
for Honda Integra Type R DC5 JDM (ISO)
for Honda Jazz 1.4M (ISO)

for Hyundai Accent 2004 (ISO)
for Hyundai Getz 1.3A 2004 (ISO)
for Hyundai Getz 1.6M 2004 (ISO)
for Hyundai Matrix 2004 (ISO)
for Hyundai Santa Fe 2.4A (ISO)
for Hyundai Sonata GLS (ISO)
for Hyundai Sonata 2005 (ISO)
for Hyundai Tuscani FX (ISO)

for Kia Carens 2005 (ISO)
for Kia Magentis 2005 (ISO)
for Kia Rio LS (ISO)
for Kia Sorento SUV 2005 (ISO)
for Lexus es300 Mazda 2 (CAN)

for Mazda 5 (CAN)
for Mazda 6 (CAN)
for Mazda Premacy 2001 (ISO)
for Mazda RX8 (CAN)

for Mitsubishi Colt 2003 (ISO)
for Mitsubishi Colt Plus 2005 (ISO)
for Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000,RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)
for Mitsubishi Lancer Evolution IX 2006 (ISO)
for Mitsubishi Pajero 3.5 V6 2006 (ISO)

for Nissan Sunny B14 (ISO)
for Nissan Sunny VIP FB15 (ISO)
for Nissan X-Trail 2.0L 2004 (ISO)
for Nissan X-Trail 2.5L 2004 (ISO)

for Peugeot 206 2001 -Only can show RPM
for Peugeot 206 (ISO)
for for Peugeot 307 (ISO)
for Peugeot 407 (ISO)

for Renault Megane II 2005 (ISO)
for Renault Kangoo 2006 (ISO)

for Subaru Impreza 1.6TS 2002 (ISO)
for Subaru Impreza WRX 2005 (ISO)

for Toyota Camry 2.0A 2004 (ISO)
for Toyota Camry 2.4A 2005 (ISO)
for Toyota Corolla Altis 1.6A 2005 (ISO)
for Toyota Corolla GLXi G8 1999 (ISO)
for Toyota Corolla G9 2002 (ISO)
for Toyota Vios 2004 (ISO)

4. Not available veichles:

for Mazda 323 Protege 2003 (OBD-I)
for Mitsubishi Lancer 1.6M 2006
for Nissan Sunny (N16)
for Nissan Cefiro (Teana) 2005
for Nissan sentra 1.8 2000/2005
for Nissan Cefiro (Teana) 2005
for Proton Perdana V6
for Subaru Legacy GT 2005
for Toyota camry 2002
for Toyota Wish JDM (Missing Pin 5 in DLC)
for Toyota IST JDM (Missing Pin 5 in DLC)
for Toyota altis 1.8 2004
for Peugeot 206 2000
for Suzuki Jimny 1.3 2000

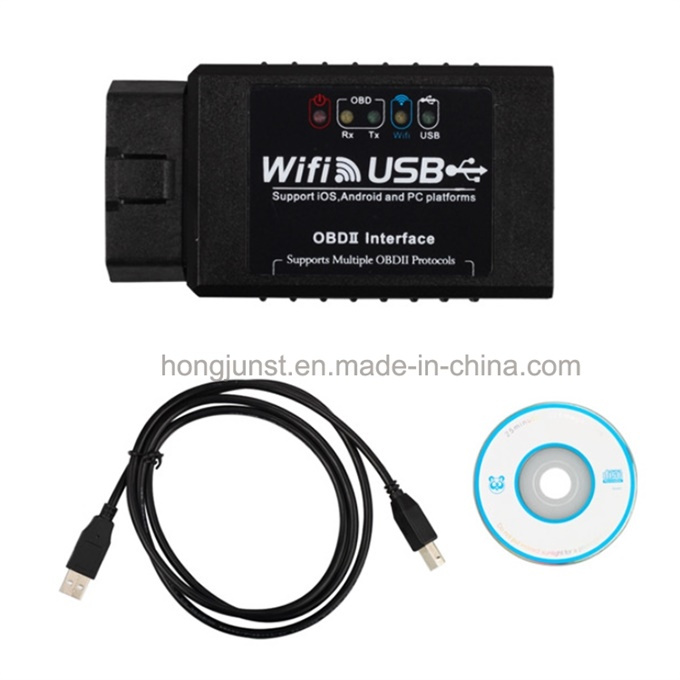

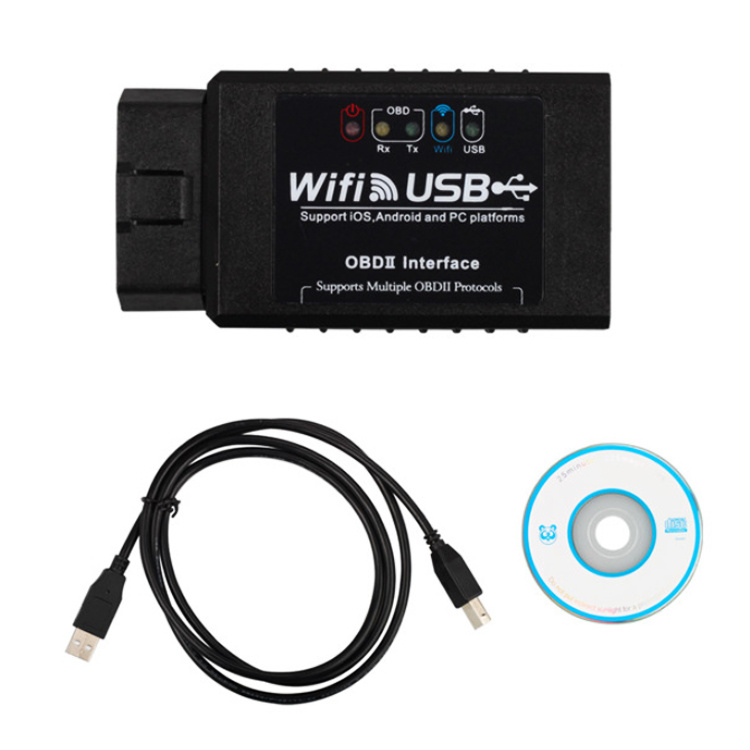

Package List:

1pc x WIFI327 OBD2 Scanner
1pc x CD Driver
1pc xUSB
