Web-based google map tracking GPS Car Anti-Theft Tracker Support Camera

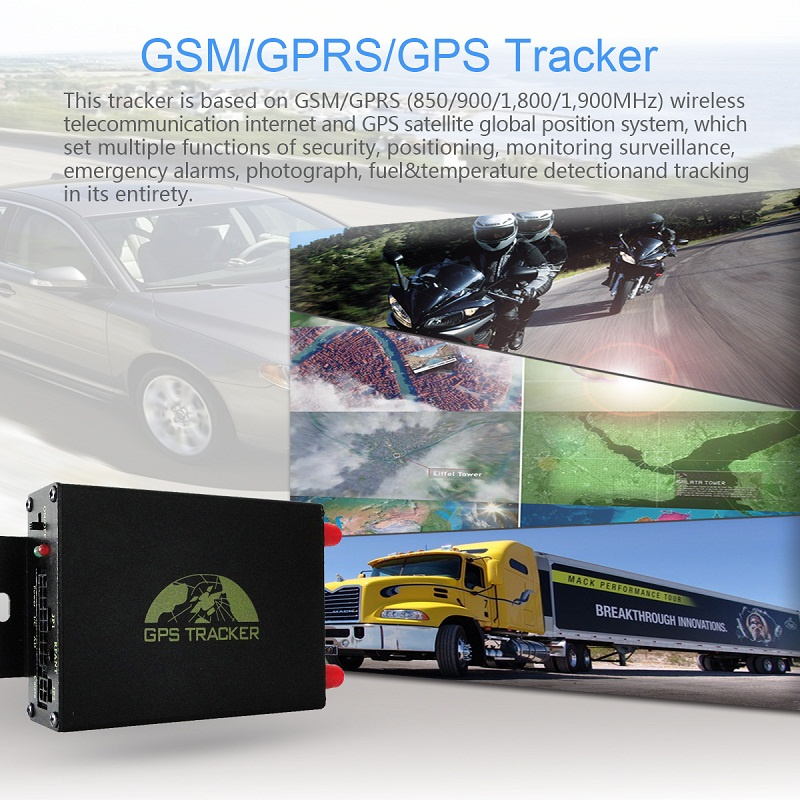

GPS-105 tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals.The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit.This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
1. Auto photograph
2. Auto tracking continuously
3. Auto store the tracking information with SD card
4. Support data upload to monitor platform
5, Geo-fence
6. Real-time tracking online
7. Support free PC platform and web-server
8. SOS panic
Basic Function:
1. Fuel detection alarm when the fuel decrease by 8% in three minutes.
2. Temperature detection alarm. You can set up a temperature to the tracker, once exceeded, it will send SMS alarm to your cell phone. The available temperature range is from -050C to +125C.
3. View photos on cell phone by sending SMS command and then you will get HTTP links to see photo.
4. Alarms in GSM Blind Area. The siren will sound in Non quite mode if DOOR/SHOCK SENSOR/ACC/OIL alarms are triggered
5. Power off alarm when the power be cut off or the voltage is 0V
6. ACC alarm, Door alarm, Shock sensor alarm when at ARM state.
7. Power -cut and restore alarm by SMS
8. Oil-cut and restore alarm by SMS
9. Anti-theft for 24 hours a day
10. SOS panic alarm
11. Voice Surveillance. When the tracker stay in "monitor" mode, you can call the tracker and hear the voice of remote target.
12. Geo-fence alarm. Set up a geo-fence for the tracker to restrict its movements within a district.
13. Movement alarm. (default distance is 200m)
14. Overspeed alarm. To restrict the speed of the tracker and control it well
15. Low battery alarm. It will remind you to charge the unit in time.
16. Single Locating by calling the tracker
17. Auto Track by sending SMS commands
18. Location based service (LBS), when there is no GPS signal, it will be located by LBS.
19. Get accurate street address by sending SMS "address+password".
20. SMS and GPRS two modes switch freely as you like
21. Setting local time of the unit by SMS
Optional Accessories:
Shock sensor;
Alarm siren;
Remote controller
Camera;
Fuel sensor;
RFID
package content :
1 x GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 x Harness
1 X Relay(12V)
1 X CD
1 X Manual
1 X Package Box
ontent |
specifications |
DIM. |
92*71*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V -24V
|
Backup battery |
Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
Applications:
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live fleet tracking systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost employee & vehicle efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto theft security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
