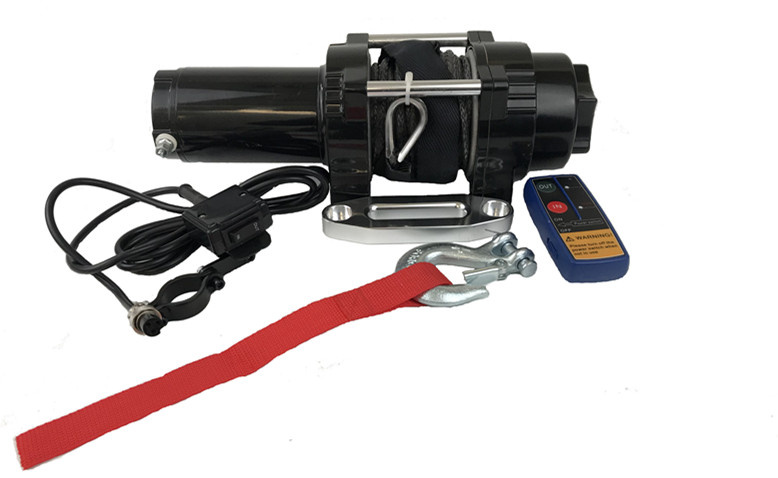

Waterproof Synthetic Rope ATV Winch with 2500 Lb Pulling

Name: Waterproof Synthetic Rope ATV Winch with 2500 Lb Pulling
Brand: ibuyautoparts.com
SKU: 839013355
Availability: InStock
Rating: 4.9 (81 reviews)

Price:	US $ 60-65/Piece
Min Order:	36/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-XA812
Size:	Compact Design
Weight:	Light Duty
Pulling:	2500lb
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All

Product Description

Specifications: 2500 LBS ATV electric winch
1) Rated Line Pull: 2, 500lbs. (1, 134kgs) single-line
2) Motor: 12V DC, 1.0HP (0.753kw) permanent magnet
3) Control: Handlebar mounted mini-rocker switch and corded remote (Wireless optional)
4) Geartrain: 3-stage planetary
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Cam activated
7) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm)
8) Synthetic Rope: 40', 7/32" diameter (12.25m, 5.5mm diam)
9) Cable management: Aluminum hawse fairlead
10) Recommended Battery: 12 AMP/hour minimum
11) Battery Leads: Color coded wiring
12) Mounting Bolt Pattern: 76 X 124mm
13) Finish: OEM colors

**PERFORMANCE DATA**
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	24 (7.3)	18	1 / 2500 (1134)
500(227)	19 (5.8)	51	2 / 2200 (998)
1000(455)	15 (4.6)	88	3 / 1930 (875)
1500(680)	11 (3.3)	125	4 / 1700 (771)
2000(907)	9 (2.7)	165
2500(1134)	7 (2.1)	204

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.
