Waterproof Night Vision Special Back up Camera for Benz Glk

Name: Waterproof Night Vision Special Back up Camera for Benz Glk
Brand: ibuyautoparts.com
SKU: 737295815
Availability: InStock
Rating: 4.9 (30 reviews)

Price:	US $ 4-12.5set
Trade Terms:	FOB
Min Order:	100set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WMR-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nigth Vision Car Camera:	Back View
Waterproof Car Camera:	Reversing Image
Interface:	RCA
Definition:	420TVL
Chip:	CMOS
Waterproof Grade:	IP68

Product Description

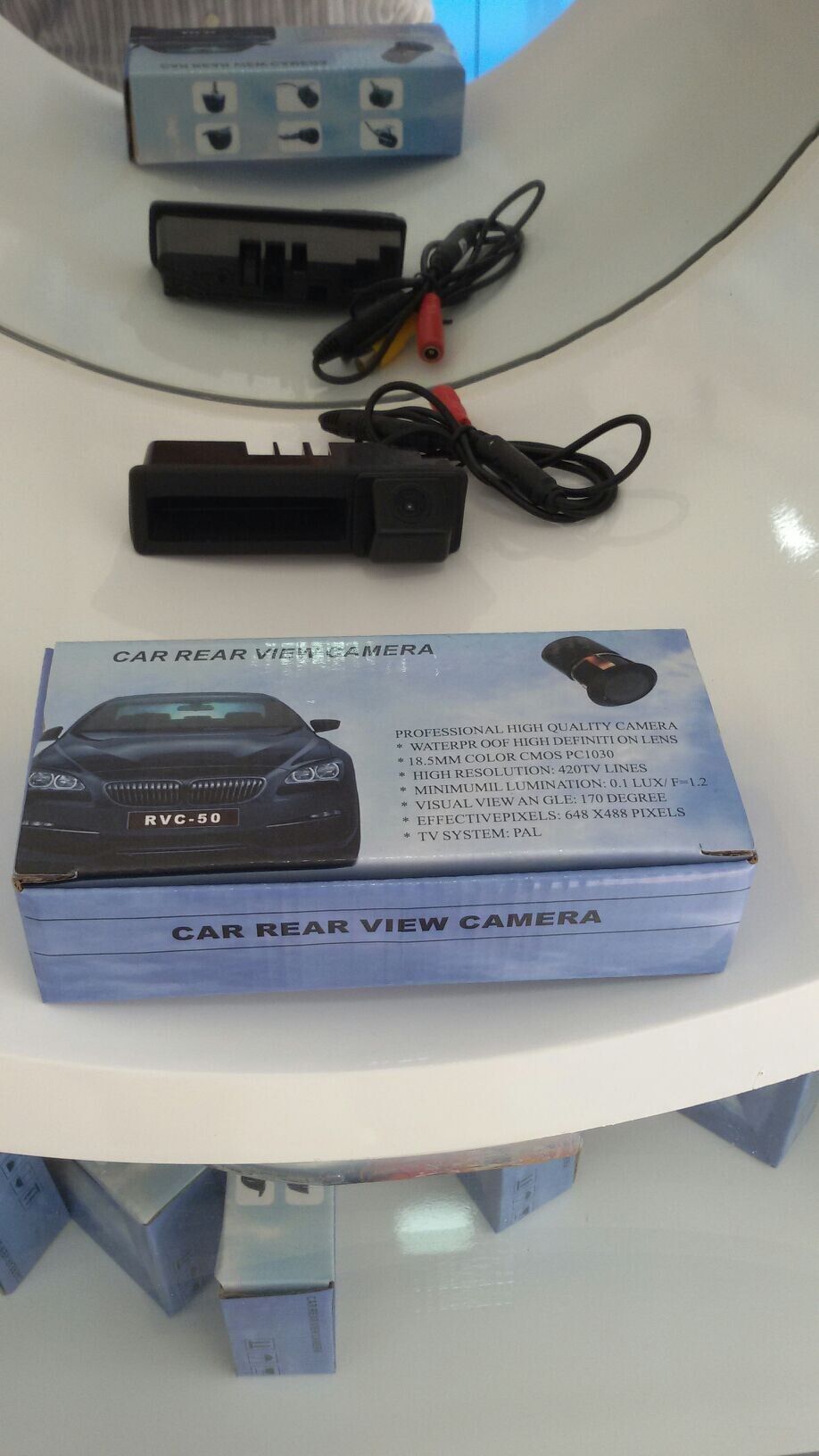

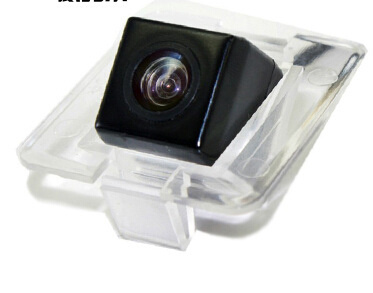

Waterproof Night Vision Special Back up Camera for Benz GLK

1. CMOS
2. Color image day & night
3. Effective pixels: 640*480
4. CE
5. RoHs

Product Features:
1. Original fitting by replacing the license light.
2. Smart size for hidden installation.
3. 1/4"CCD
4. Lens: 170 degrees
5. Waterproof and dust-proof (IP68)camera
6. With car reversing reference line(optional) camera.
7. License light available on partial models.
8. Night vision available and high definition camera.
9. Day/Night sensor for automatic adjustment, minimum illumination auto fill light.

Installation Guides:
1. Get out the cover of license light;
2. Get the rear view lens lines across the license light original position;
3. Fasten the camera with the buckle which place in the two sides of the camera;
4. Connect the lens built-in license light power lines to the original license light power lines;
5. Connect the reverse lens switching lines;
6. Connect the camera's signal line to the signal extension line;
7. Connect the car's reverse light line to camera's video cable;
8. Check if all lines are correct connected and arranged;
9. Debug the working effects of the camera and the license light;
10. Cover the car trunk. Finished.

Accessories:
1. AV cable 6 meters, DC wire 1.2 meters
2. User Manual

Technical Parameters:

Image Sensor 1/4" CCD

TV System NTSC/PAL

Sync System internal

Minimum illumination < 1 lux

White balance Auto

IR LEDs Optional

Video color Colorful

Waterproof class IP68

Effective pixels 640(H)*480(V)

Resolution 420 TV lines

Sensing area 3.5964*2.7084mm

Video output 1.0Vp-p, 75Ω

Electronic shutter 1/60S-1/5000S

S/N ratio Better than 48dB

Lens angle 170 degree

Operation temperature -20° ~+70°

Storage temperature -30° ~+80°

Warranty 12 months

Packing Box(Universal):
