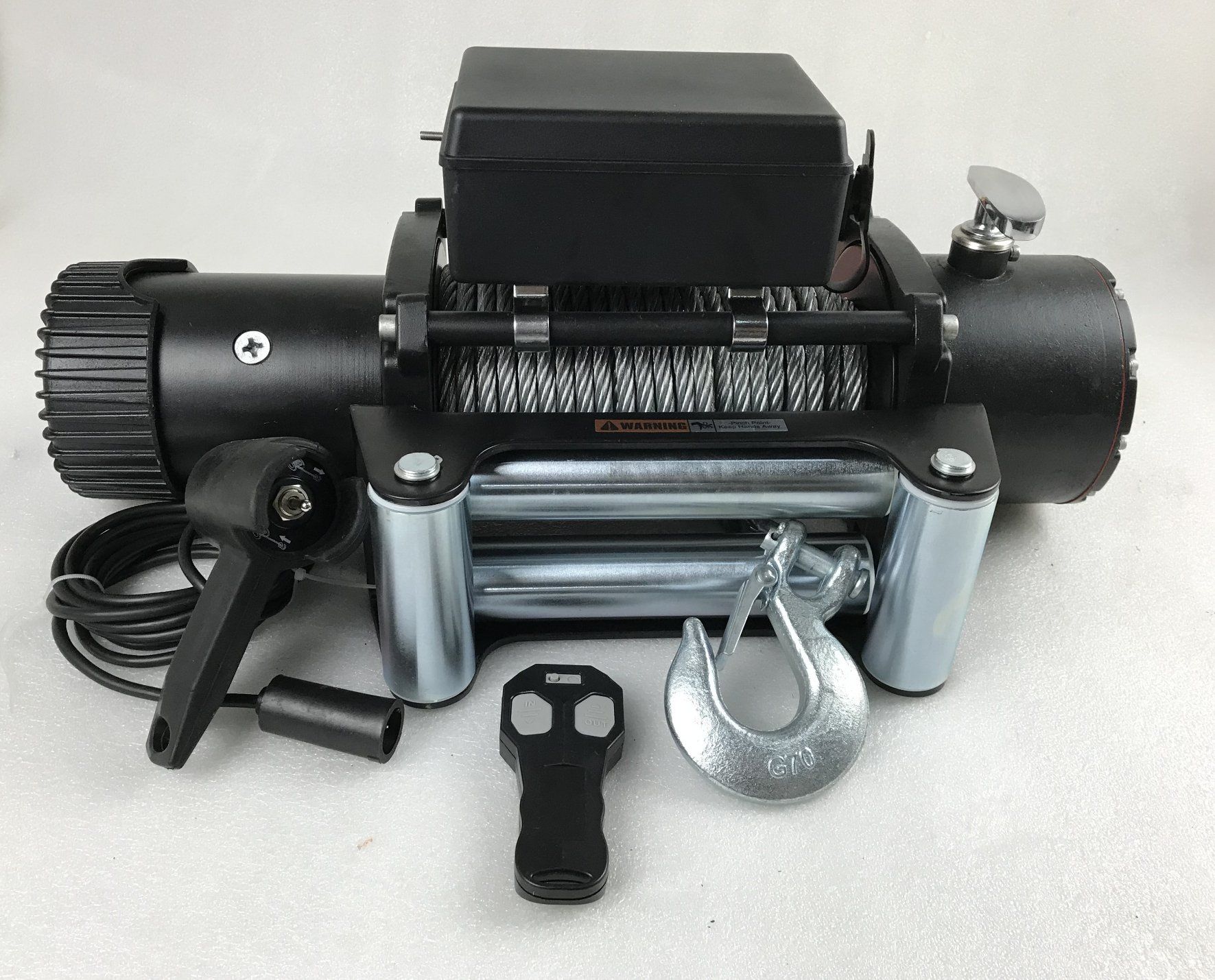

Waterproof Classic Design 12000 Lb 4X4 off -Road Winch with All Steel Gear

Classic design in the current market .Classic design ,excellent performance ,durable & big pulling ,but cheap price ,which are the top choice for customers .  brute torque  fast speed series wound motor sealed , 3 stage gear driven train with all steel gears , Sliding ring gear for "engage" and "disengage" though roating cluch lever . New design with no-interference wireless remote . Working at extreme hard condition , low noise ,small amps .Top recovery equipment for off-road . They are available of pulling ranges from 8500lbs-12500lbs . Welcome to further inquiries !

OEM is available

Synthetic rope & aluminum fairlead are available for this model !

12000LBS Features and Specifications :

Part number : XM-TE942

Performance: DC 12 V OR 24 V

Single line rated pull: 12,000lbs ( 5436kg)

Motor: 6.0hp/4.6kw  series -wound sealed

Braking action: mechanical

Clutch: Sliding ring gear

Gear train : 3 -stage planetary

Gear ratio: 265.2: 1

Remote Switch: 12ft ,wire remote control with black hand bar , wireless remote kits included

Battery: Recommended:650CCA minimum for winching

Battery Leads: 2 Gauge 72"(1.83m)

Fairlead: 4-way roller fairlead (Aluminum Hawse available )

Synthetic rope: Ф9.5 x 85 ft (Ф9.5x 25 m )

Weight: 86 pound (39kg )

Overall dimension: 21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm)

Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
