Tianjin U-ideal Instrument Co., Ltd produces various level measuring instruments such as magnetic level gauges, glass tubular level gauges, reflex level gauge, transparent level gauge, various level transmitters and level switches.

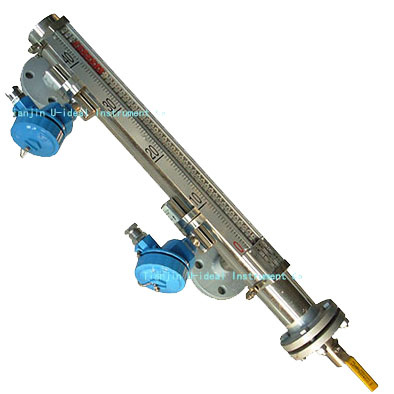

Magnetic Level Gauge' outstanding features: Bi-color local indicating, remote control, wide working range, Economic price, long service time, and little maintenance.
Magnetic level gauge divided into top mounted and side mounted type.
Level measurement methods
Components: Tube body, floater, installed flanges, indicator panel, and drain and vent valves.
Indicate color: White and Red flag.
Our Bi-color Magnetic Floater Level Indicators have produced more than 20 different type's suit for various application. Such as side mounted, buried tank top mounted, side-top mounted type, thermal type (steam insulating sheath, electric thermal insulation), anticorrosion type fuel level measurement.
Anticorrosion type: Glass fiber reinforced plastic, ABS, UPVC, TA2, PP material selectable.
Technical parameter
1, measure ranges: 20-15000mm
2, measure accuracy: ± 5mm
3, working pressure: 1.0, 1.6, 2.5, 4.0, 6.4, 10.0, 16, 0MPa
4, fluid temperature: -40~450º C
5, fluid viscosity: ≤ 14m/s
6, fluid density: ≥ 0.5g/cm3
7, body or cage material: 1Cr18Ni9Ti, 304SS, 316SS, 301SS, Carbon steel; Floater material: 304SS, 316SS, Titanium
8, flange: Side flange, tank top flange; ANSI, JIS OR DIN form.
9, Transmitter output 4~20mA signal, add level switches (HH, H, L, LL) to realize remote control
If H2SO4 98%, we will supply with PP Polypropylene material magnetic level gauge or SS 201 material level gauge/ PTFE material level gauge according to customers require.
UHZ type Side Mounted Bi-color Magnetic Level Gauges
UHZ type Top Mounted Bi-color Magnetic Level Gauges
UHZ type Steam Jacket heating Bi-color Magnetic Level Gauges
UHZ type anticorrosion type Magnetic Level Gauges
| measure ranges | 20-15000mm |
| measure accuracy | ± 5mm |
| working pressure | 1.0, 1.6, 2.5, 4.0, 6.4, 10.0, 16, 0MPa |
| fluid temperature | -40~450º C |
| fluid viscosity | ≤ 14m/s |
| fluid density | ≥ 0.5g/cm3 |
| flange | Side flange, tank top flange |
| Transmitter output | 4~20mA signal |
| | |
| Name | floating level transmitter |
| output | 2-wire 2~20mA, switching alarm, LCD, Hart optional |
| Load | 0~500 |
| Level range | H=0.1~30m(special assemble if longer than 6m) |
| Accuracy | A:+/-5mm, B: +/-10mm, C: +/-20mm |
| Fluid temperature | -20~150ºC |
| Electric Power | DC 24V |
| |
| Model selection |
| UQK-B | floater level transmitter |
| Accuracy | A | 5mm |
| B | 10mm |
| C | 20mm |
| structure | | 1 | float ball diameter:45mm. H1=40mm, H2=30mm |
| 2 | 76mm, H1=50mm, H2=40mm |
| 3 | 125mm, H1=80mm, H2=65mm |
| Insallation | | F | flange | |
| P | angle plate bracket | |
| S | screw | |
| A | adjustable screw is optional |
| Other function | | P | pressure <0.6MPa |
| E | explosion-proof |
| S | Digital display |
