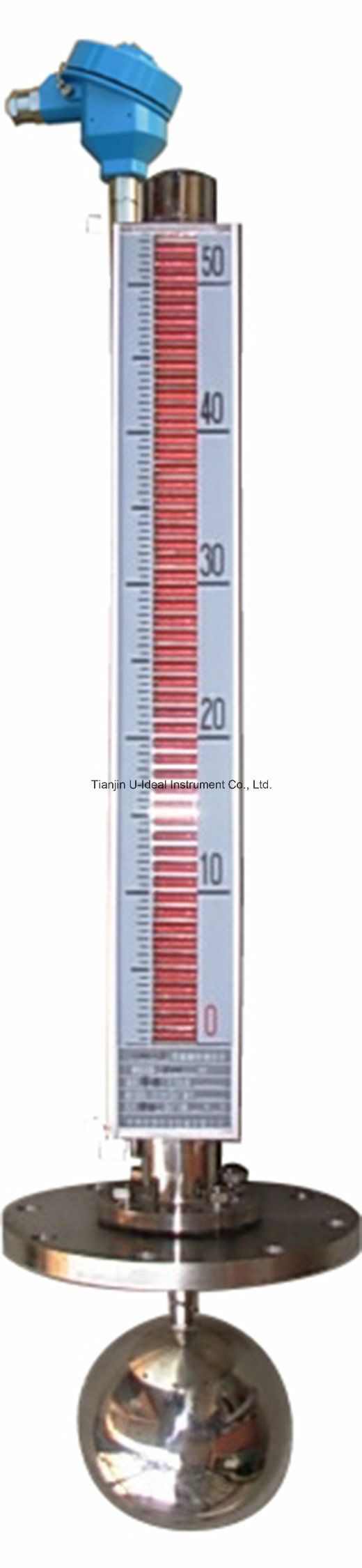

Water Level Indicator-Water Level Sensor-Float Switch
| Price: |
US $ 280/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Series UHC type magnetic level gauges have been used by many enterprises of all walks of chemical, industries, petroleum, electricity, food, light, medicine, metallurgy, papermaking etc to measure the fluid level in pressure container and flammable and toxic liquid in opening container. Not only can display directly in field by two colors, but also can added upper and lower point alarming and control equipments, and that can realize the control and alarm function to the liquid in boiler automatically. This type level gauges can also connect with UR type transducer to realize remote digital analogy display and 4~20mA output signal.
They are of simple function, firm, secure and reliable products. Highlighting and directly display, easy to install, long service time, easy to maintaining are their characteristics. The fluid contacting part adopts anticorrosive material (ICr18ni9T1). Magnetic indicator is separated from the measured fluid, can display continuously, and have long viewable distance and wide viewable range.
UHC-C type Side Mounted Bi-color Magnetic Level Gauges
UHC-D type Top Mounted Bi-color Magnetic Level Gauges
UHC-B type Steam Jacket Bi-color Magnetic Level Gauges
UHC-F type Glass Fiber Reinforced Plastic Bi-color Magnetic Level Gauges
UHC-G type Boiler Special Using Bi-color Magnetic Level Gauges
UHC-Y type Electric Remote Reading Bi-color Magnetic Level Gauges
1. Vent valve: to prevent the false liquid level, vent valve can be installed to the meter. And for the boiler specially using type it is not necessary to install the vent valve.
2. Blowout valve: in order to vent, sampling, drain and clean, other type valves also can be installed.
3. Up and low limit point alarming system: to control the limit level of upper point and low point.
4.heating and cooling system : in the circumstances of high temperature or low temperature, inlet steam or cooled water to control the flowing fluid temperature.
5.insulating sheath tube connecting size ;
1/2 " tube tread; steam heater pressure: ≤ 0.39
|
| Prod Model: |
UHZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Magnetic Flap |
| Structure: |
All in One |
| Range: |
0-15m |
| Principle: |
Magnetic Sensors |
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
