Water Hose Reel with Gray Powder Coating Spring Driven

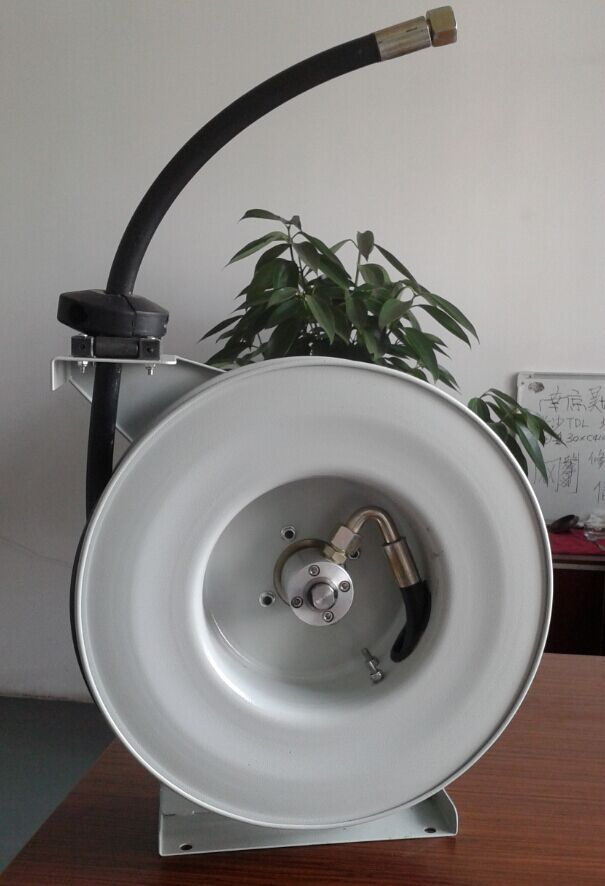

Name: Water Hose Reel with Gray Powder Coating Spring Driven
Brand: ibuyautoparts.com
SKU: 808670975
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	US $ 95/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Automotive Service
our reels are durable, dependable and are ideal for fleet maintenance operations. The reels can be used for air, water, oil or grease and power, light applications.
Applications:
· Pneumatic tools
· Power and light electric cable
· Pressurized tire air
· Quick transmission Lubrication oil

Fluid path: 1/4", 5/16", 3/8", 1/2"

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reel outlet	Pin No. (with hose)	Pin No. (without hose)
Air/Water/Anti-freeze	2(300)	6 (1/4)	10(33)	1/2"	1/4"	300020110	300020100
Air/Water/Anti-freeze	2(300)	6 (1/4)	15(50)	1/2"	1/4"	300020115	300020100
Air/Water/Anti-freeze	2(300)	8 (5/16)	8(25)	1/2"	1/4"	300020208	300020200
Air/Water/Anti-freeze	2(300)	8 (5/16)	12(40)	1/2"	1/4"	300020212	300020200
Air/Water/Anti-freeze	2(300)	10(3/8)	10(33)	1/2"	3/8"	300020310	300020300
Air/Water/Anti-freeze	2(300)	12(1/2)	10(33)	1/2"	1/2"	300020410	300020400
Oil/Water	19(2780)	6 (1/4)	12(40)	M20×1.5	M14×1.5	300190112	300190100
Oil/Water	15(2280)	10(3/8)	10(33)	M20×1.5	M18×1.5	300150310	300150300
Oil/Water	14(2030)	12(1/2)	8(25)	M20×1.5	M22×1.5	300140408	300140400
Grease	35(5075)	6 (1/4)	10(33)	M20×1.5	M14×1.5	300350110	300350100

Prod Model:	series 300
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red

Our company is a Japanese-owned enterprise, which was established in June, 2001, located besides the overhead, in Longjiang Road, Economic Development Zone, Zhong building, covering about 10, 000 square meters. It is a high-tech enterprise specializing in the development, design, manufacturing, sales and service of small mower and gear.

Our main equipment: A large number of high precision machines, such as multifunctional gear manufacturing machine, multi-axis CNC lathe, automatic feed lathe, high precision CNC lathe, multifunctional cylindrical grinding machine tool, precision thread rolling machine, precision grinding machine, precision grinding lathe, automatic knurling machine, spline broaching machine, precision chamfering machine, three times detector, gear bear detector, gear meshing detector, and CASE detector, etc.

Gear has played the common role in current society structure and machines, especially one important role in human relations and social order. If the gears are out of control, then the society will be full of chaos. Besides, gear has played the role in the machine like the heart in human body. Therefore, gear should be very solid and precise, otherwise it is valueless. The motto of our company is "harmony", we have been strived for manufacturing gears of high performance, to make the city and town cleaner and safer. We expect you can support and encourage us as usual.
