Water Flow Sensor/ Mass Flow Rate Calculator/Mass Air Flow Censor
| Price: |
US $ 2300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
UIDMF Coriolis mass flow meter
Introduction
UCMF-1-Series Coriolis Mass Flow Meters' measuring principle is based on the controlled generation of Coriolis forces. The measurement would not be affected by the pressure, temperature, viscosity, density, etc. And the compensation calculation is not required. The structure contains two parts: Sensor & Transmitter. The Coriolis Mass Flow Meters are designed and manufactured based on the national standard of safe explosion proof. The Explosion- proof standard is EX d ib II C T5 Gb. The mass flow meter does not measure the volume per unit time (e.g., cubic meters per second) passing through the device; it measures the mass per unit time (e.g., kilograms per second) flowing through the device. The accuracy of the Coriolis Mass Flow Meters is ±0.1%~ ±0.2%. The application range is large. (It could be used to measure all sorts of all sorts non-newtonian fluid, slurry, suspensions, high viscosity fluid, etc.) The requirements for the installation are low. (The straight pipe requirements in front of and behind the Coriolis Mass Flow Meters are low.) They are more reliable, stable, and the maintenance level is low.Technical Parameters
Applications | Suitable for Liquid, Gas, Liquid- Solid, Gas- Solid, Liquid- Gas Mass Measurement or volume measurement |
| Material of the Measurement Pipeline | SS 316L/ HC Hastelloy |
| Pressure | Please refer to the chart shown above. Special orders would be placed for high pressure. |
Medium Temperature | -50ºC~+150ºC; (Highest Temperature: +350ºC;
Lowest Temperature: -300ºC could be special ordered.) |
| Environment Temperature | Sensor:-40ºC~+150ºC; Transmitter:-20ºC~
+70ºC |
| Flow Rate Measurement Accuracy | ± 0.2% ,± 0.1% optional |
| Density Measurement Accuracy | ±0.002g/cm³,±0.001g/cm³ optional |
| Repeatability | ±0.10% Flow Rate ±[½(Zero Point Stability/Flow Rate)×100]% Flow Rate |
Output Signal | 4~20mA Load Resistance <500Ω(Instantaneous
or Density optional); 0~10kHz Instantaneous Flow Rate Pulse Signal; Standard RS 485 Communication |
| Explosion- Proof Symbol | EX d ib II C T5 Gb |
Model selectionMicro Flow Meter- DMF-1-1; DMF-1-2
Model | DN | Measurement scope ( kg/h ) | Work Pressure ( MPa ) | Connection type (mm) |
| DMF-1-1-AB | 1.5 | 0~4 | 0~32 | Weld Joints Φ6×1.5 |
| DMF-1-1-A | 3 | 0~40 | 0~32 | Weld Joints Φ6×1.5 |
| DMF-1-1-B | 6 | 0~100 | 0~25 | Weld Joints Φ10×2 |
| DMF-1-2-A | 8 | 0~200 | 0~20 | Weld Joints Φ10×1 |
Medium-Small Flow Meter: DMF-1-3; DMF-1-4; DMF-1-5-A
Model |
DN | Measurement scope (kg/h) | Work Pressure (MPa) |
Connection Type(mm) |
| DMF-1-3-A | 10 | 0~500 | 0~25 | Weld Joints Φ20×4 |
| DMF-1-3-B | 15 | 0~1000 | 0~25 | Weld Joints Φ20×3 |
| DMF-1-4 | 20 | 0~3000 | 0~25 | Weld Joints Φ20×2 |
| DMF-1-5-A | 25 | 0~10000 | 0~25 | Weld Joints Φ31×3 |
Large-scale Flow Meter: DMF-1-3; DMF-1-4; DMF-1-5; DMF-1-6 High pressure could be special ordered. (4~70MPa)
Model |
DN | Measurement scope (t/h) | Work Pressure (MPa) |
Connection Type(mm) |
| DMF-1-3-A | 10 | 0-0.5 | 0~4 | Flange 10 |
| DMF-1-3-B | 15 | 0-1.0 | 0~4 | Flange 15 |
| DMF-1-4 | 20 | 0-3.0 | 0~4 | Flange 20 |
| DMF-1-5-A | 25 | 0-10 | 0~1.6 | Flange 25 |
| DMF-1-5-B | 40 | 0-20 | 0~1.6 | Flange 40 |
| DMF-1-6-A | 50 | 0-30 | 0~1.6 | Flange 50 |
| DMF-1-6-AB | 65 | 0-50 | 0~1.6 | Flange 65 |
| DMF-1-6-B | 80 | 0-100 | 0~1.6 | Flange 80 |
| DMF-1-6-C | 100 | 0-150 | 0~1.6 | Flange 100 |
| DMF-1-6-CD | 125 | 0-200 | 0~1.6 | Flange 125 |
| DMF-1-6-D | 150 | 0-300 | 0~1.6 | Flange 150 |
| DMF-1-6-E | 200 | 0-500 | 0~1.6 | Flange 150 |
UICMF Coriolis mass flow meterIntroductionUICMF Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. UICMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.Features1.Unchallengeable UICMF performance on liquid mass flow, volume flow, and density measurement
2.Unique design delivers unparalleled measurement sensitivity and stability
3.Guarantees consistent, reliable performance over the widest flow range
4.Designed to minimize process, mounting, and environmental effectApplication | Low Flow Precision Measurement | Precision Measurement & Process Control | High Capacity Precision Measurement |
| Starting at 9.6kg/hr to120kg/hr | Kg/min - tons/hr | Up to 1,000 tons/hr |
| Flavoring | Truck loading | Custody transfer |
| Vials | Internal allocation | Ship loading |
| Chemical injection | Leak detection | Railcar loading |
| | Produced fluids with | Pipeline measurement |
| | chlorides | Marine bunkering |
| | | Feedstock and fuel blending |
Model selection
Model | Nominal Size (mm) |
Flow rate (kg/hr) | Stability zero, kg/h | Rated Pressure (MPa) | NW (KG) |
GW (KG) |
| 0.2% | 0.15% | 0.1% |
| UICMF-003 | 3 | 0~96~120 | 0.018 | 0.012 | 0.012 | 40 | 8 | 19 |
| UICMF-006 | 6 | 0~540~660 | 0.099 | 0.066 | 0.066 | 20 | 12 | 22 |
| UICMF-008 | 8 | 0~960~1200 | 0.18 | 0.12 | 0.12 | 20 | 12 | 23 |
| UICMF-010 | 10 | 0~1500~1800 | 0.27 | 0.18 | 0.18 | 20 | 11 | 24 |
| UICMF-015 | 15 | 0~3000~4200 | 0.63 | 0.42 | 0.42 | 20 | 12 | 25 |
| UICMF-020 | 20 | 0~6000~7800 | 1.17 | 0.78 | 0.78 | 16 | 20 | 34 |
| UICMF-025 | 25 | 0~10200~13500 | 2.025 | 1.35 | 1.35 | 16 | 21 | 35 |
| UICMF-032 | 32 | 0~18 000~24 000 | 3.6 | 2.4 | 2.4 | 16 | 27 | 45 |
| UICMF-040 | 40 | 0~30 000~36 000 | 5.4 | 3.6 | 3.6 | 12 | 35 | 55 |
| UICMF-050 | 50 | 0~48 000~60 000 | 9 | 6 | 6 | 12 | 40 | 60 |
| UICMF-080 | 80 | 0~120 000~160 000 | 24 | 16 | 16 | 8 | 90 | 150 |
| UICMF-100 | 100 | 0~222 000~270 000 | 40.5 | 27 | 27 | 8 | 170 | 245 |
| UICMF-150 | 150 | 0~480 000~600 000 | 90 | 60 | 60 | 6 | 255 | 360 |
SENSOR SPECIFICATIONS1. Accuracy: ±0.1~0.5% Repeatability: ±0.1~0.25%2. Density measurement range: 0.5~2g/cm3, Accuracy: ±0.002 g/cm3
3. Operating temperature: -50~+200ºC(standard), -200~+300ºC Ambient temperature: -20~+60ºC or -40~+60ºC4. The measuring tube material: SS316L; The housing material: SS304

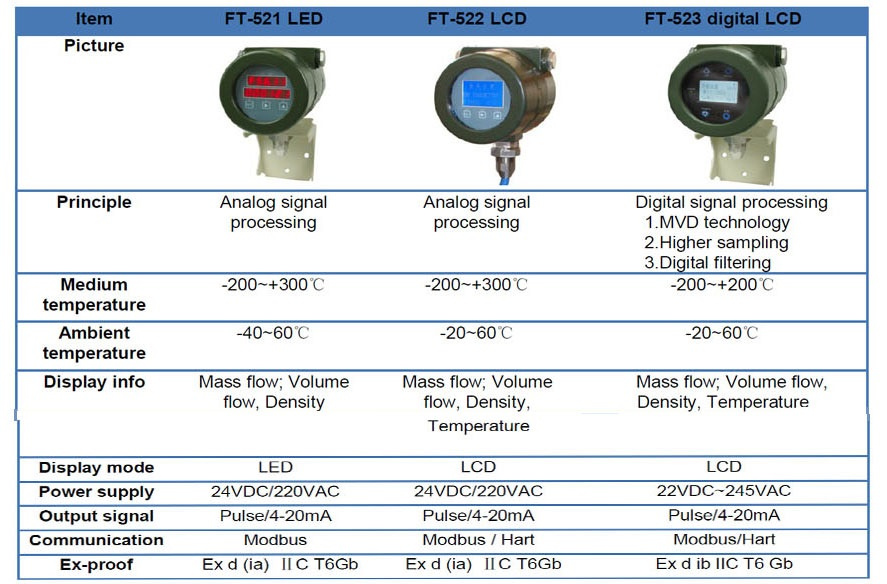

5. Nominal pressure: 4.0MPa (standard)6. Ex-proof: Exd (ia)iiC T6GbTRANSMITTER SPECIFICATIONS
| Prod Model: |
LZM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rangablility: |
500:1 |
| Sensor: |
Tube/Flange |
| Accuracy: |
±0.2-0.5% |
| Measuring Media: |
Gas |
| Size: |
Dn15~Dn300 |
| Measuring Principle: |
Electrical Principles |
| Type: |
Variable Area Flow Meter |
| Measuring Medium: |
Gas, Liquid, and Gas-Liquid Mixture |
