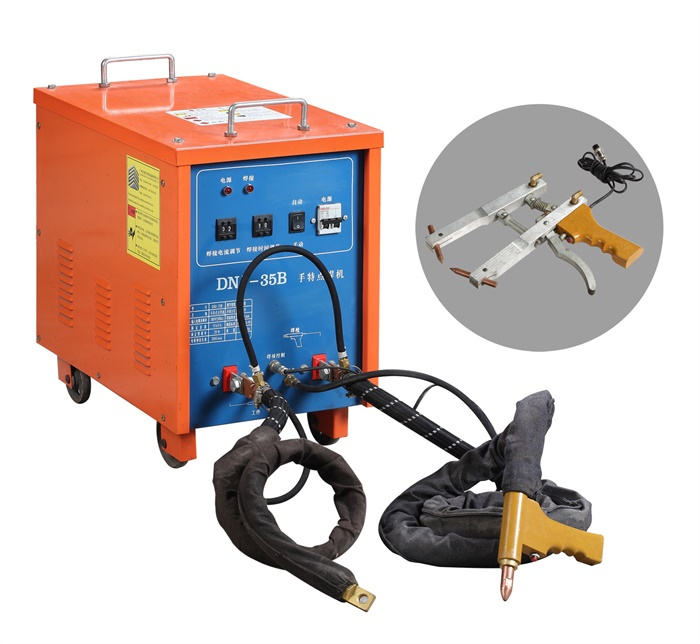

Water Cooled Handheld Movable Spot Welder

Name: Water Cooled Handheld Movable Spot Welder
Brand: ibuyautoparts.com
SKU: 778201985
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	US $ 700.3000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

DN3 Series Portable Spot Welding Machine

Main Application Characteristic
1.The device belongs to one kind of resistance spot projection welding machine, it is composed of the machinery frame structure, welding transformer, control system, water-cooling welding cable and welding torch, etc. The main electrical circuit adopts the diode thyristor(SCR) contactless switch, to make sure the circuit switch time rapidly, accurately. The control system can adjust the welding time precisely,welding repeatability and welding consistency are both very good,also easy maintenance.
2.Compare to the DN Series Resistance Spot Welding Machine,DN3 Series Portable Spot Welder has the advantages of small volume, light weight and other characteristics,install four rollers to the machine to make sure it can move conveniently,furthermore no need air pressure to operate it.
By the 2meters length water-cooling welding cable and hand-held spot welding gun,the operation is quite flexible, convenient.Using different welding guns,it can realize portable clamp type spot welding, single spot welding etc.
3.Generally for low carbon steel, steel, galvanized steel, stainless steel and other metal,Its welding range is 0.1mm---4.0mm.
It is widely used in all kinds of sheet metal,steel box and cabinet,iron furniture,stainless steel kitchen products,stainless steel door manufacturing and steel wire mesh reweld for leakage welding etc.

Technical Parameter

Model Parameter	DN3-16K	DN3-25K	DN3-35K	DN3-45K	DN3-50K
Rated Power(KVA)	16KVA	25KVA	35KVA	45KVA	50KVA
Rated Input Voltage(V)	380V-420V,50/60HZ
Rated Primary Current(A)	45A	70A	85A
Welding Cable Length(m)	Standard is 2meters or any other special length
Max Welding Thickness(mm)	1.2mm+1.2mm	1.8mm+1.8mm	2.3mm+2.3mm	3.2mm+3.2mm	3.8mm+3.8mm
Cooling Way	Transformer---Air Cooling, Welding Electric Cable---Water Cooling			Water Cooling
Weight(KG)	85KG	95KG	130KG	140KG	150KG

Prod Model:	DN3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

GUANGZHOU DUROWELDER LIMITED is founded by WELDING TECHNOLOGIES, USA and serves as its Manufacturing Plant in order to bring latest achievements in various equipment science and technology to the biggest market of Welding Equipment, Induction Heating Equipment, and Wire & Tube Processing Machine in the world - China with a goal to support a demand for high quality of various equipment in the region and beyond.

Quality oriented design is produced by US trained technicians using state of the art facility in Guangzhou City, China.

Our products include full line of Standard and Custom Made Resistance Welders, Various Arc Welding and High Degree Automated Systems; Medium Frequency Induction Heating Equipment, Ultrasonic Frequency Induction Heating Equipment and High Frequency Induction Heating Equipment, Super-high Frequency Induction Heating Equipment, Portable Type Mini-Inductor, Flameless Easy Induction Heater, Automatic Tube Straightening & Cutting Machine, Tube End Forming Machine, Automatic Wire Bending Machine, and so on.

Our Company is a certified ISO9001: 2000 facility and holds various quality and safety Certificates, such as National Mandatory Safety System certificate of CCC, UL, European CE and others.
