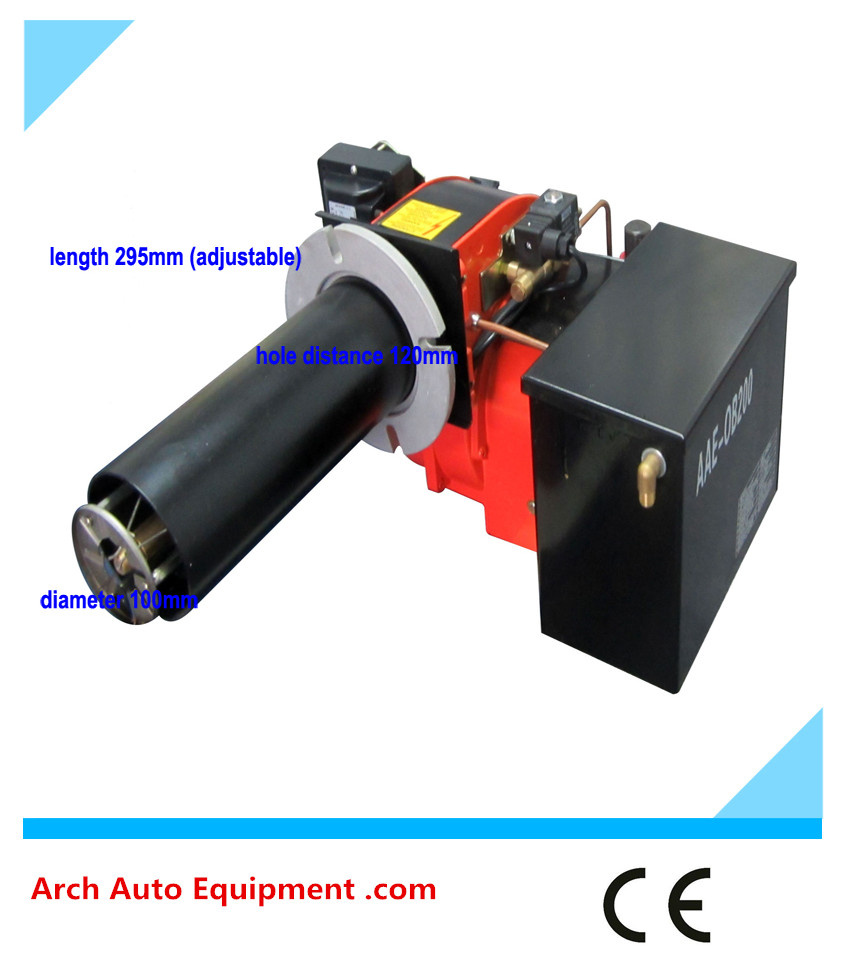

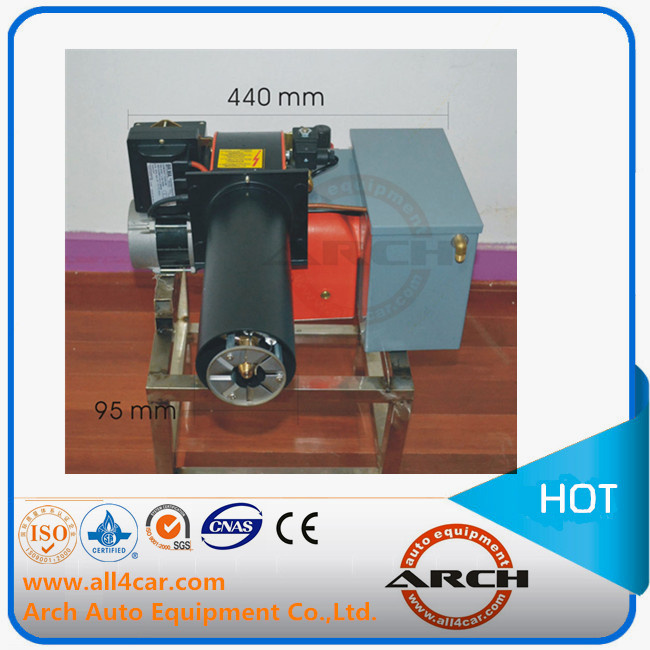

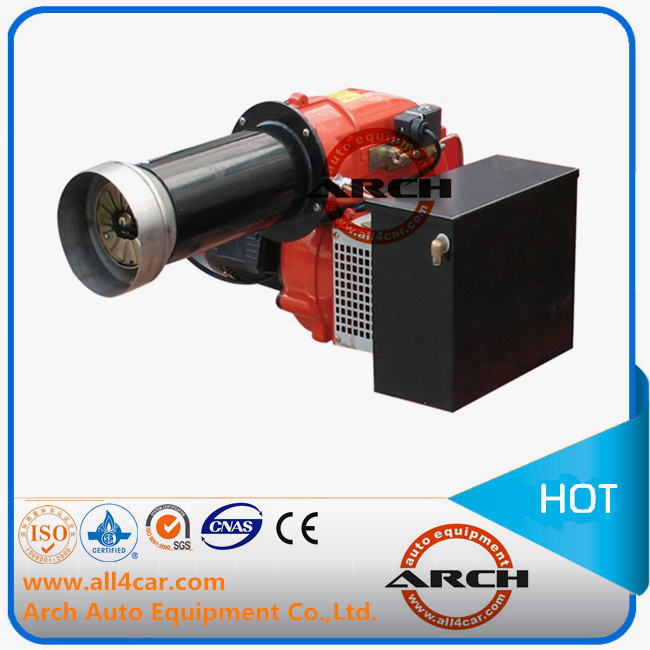

Waste Engine Oil Burner (AAE-OB200)
| Price: |
US $ 800-850/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
ARCH AUTO EQUIPMEN CO.,LTD is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment.ARCH AUTO EQUIOMENT has been successfully developed and produced waste oil burner, waste machine.Our first class product and high quality has won users favorites at home and abroad.Our company aim to energy saving,quality,efficient.Saving the world trend of environmental protection.Waste Oil Burner Series
AAE-OB200.AAE-OB220.AAE-OB230.
Products have passed quality testing and CE certified, able to meet different customer needs.
Applicaiton Area: Spray booth ,boiler,heater,smelting furnace, etc.
Feature1.Used for wide range of oil such as waste lubrication oil, diesel oil, tire oil , residual oil, cooking oil.
2. Patented oil nozzle, anti-plug, anti-carton.
3. Ignition point is not resctricted by the environment temperature, even in cold winter.
4. Simple, easy to operate.
5. Any additives is no needed.
6. No wear parts, long service life.
7. Perfect electronic protection system, safe and reliable.
9. CE certificated..
10.No environment temperature limitation.
11.Easy operation.
12.No wears.long life use.
13.Perfect electricity protection ,safe, reliable.
14.No need to chane the spray booth structure.Technical Parameter
Oil Consumption(Kg/h):5.5-7.5Output Heat(Kcal):43,000-55,900
Output Heat (kw): 0.09
Nozzle: 1X2.0mm
Tube Diameter: 110mm
Flange Diameter:170mm
Power Supply(V/Hz/P h): 220ovr110v,50phor60ph
Air Pressure(bar): 1.0-1.2
Net Weight: 33kg

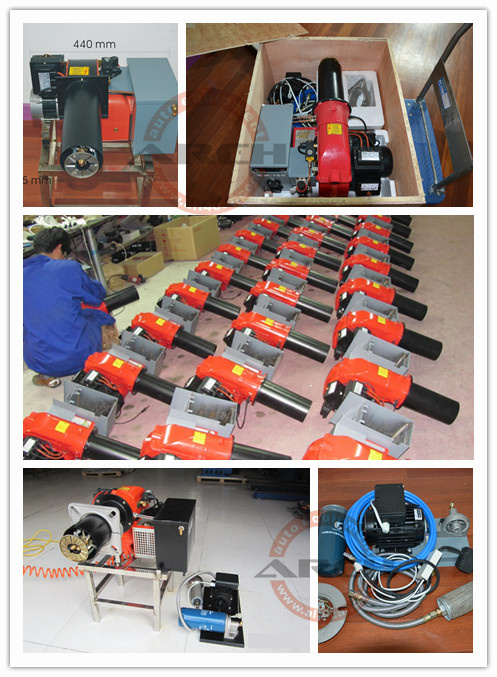

Package & Shipment:
The size of the plywood case is very easy for the installation and adjustment, easy for DHL &TNT express shipment or LCL sea shipment.
Deliver Time: 3-5Days after payment.
Technical Parameter:
| Specification |
| MODEL | AAE-OB200 |
| Oil Consumption (Kg/h) | 5.5-7.5 |
| Output Heat (kw) | 50-65 |
| Output Heat (KCal) | 43,000-55,900 |
| Output Heat (BTU/h) | 170,600-221,780 |
| Power Consumption (kw) | 0.09 |
| Nozzle | 1 x 2.0mm |
| Tube Diameter | 110mm |
| Flange Diameter | 170 |
| Power Supply (V/Hz/Ph) | 220 or 110, 50 or 60 |
| Air Pressure (bar) | 1.0-1.2 |
| Net Weight (kg) | 32kg |
Our company website:http://www.all4car.com
| Prod Model: |
AAE-OB200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Model: |
Aae-0b200 |
| Colour: |
Orange |
| Oil Consumption(Kg/H): |
5.5-7.5 |
| Power Condsumption: |
0.09 |
| Flange Diameter: |
170 |
| Tube Diameter: |
110mm |
| Air Pressure(Bar): |
1.0-1.2 |
| Net Weight (Kg): |
32 |
| Tube Length: |
25cm |
| Application: |
Diesel |
| Type: |
Environment Protection Type |
| Certification: |
ISO/TS16949, ISO14001 |
| Main Market: |
Oceania |
