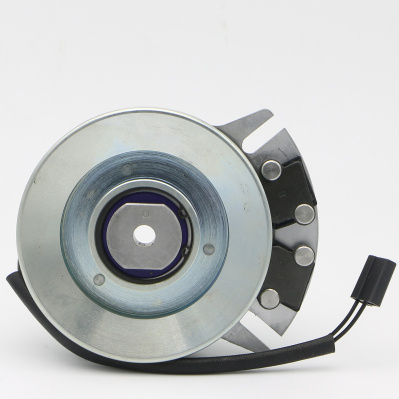

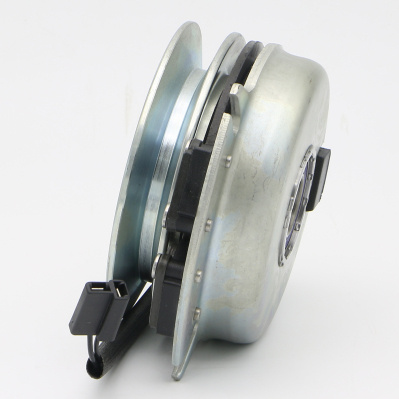

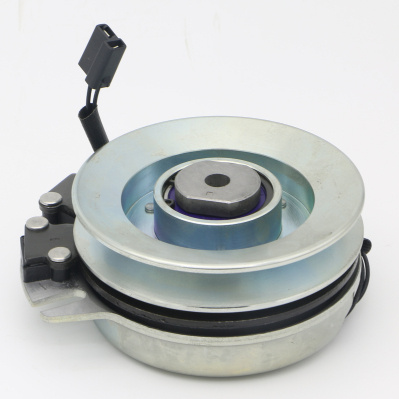

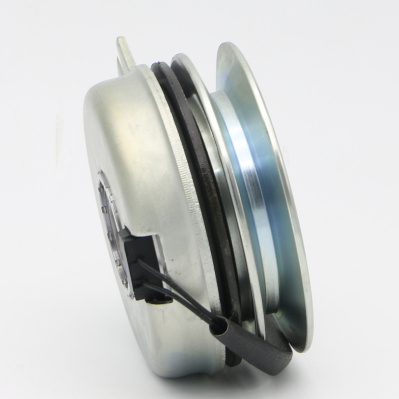

Warner 5217-2 Electric Pto Clutch, Electromagnetic Clutch
| Price: |
US $ 60.99-69.99/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
39/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Description: ELECTRIC PTO CLUTCH
WARNER 5217-2
Replaces (OEM): ARIENS 03601800
AYP 145028
HUSQVARNA 532 14 50-28
SIMPLICITY 1686882
SIMPLICITY 1686882SM
SIMPLICITY 1708536
SIMPLICITY 1708536SM
WARNER 5217-2
WARNER 5217-46
Fits Models: ARIENS EZR 1440, 1648 and 1540
Specs:
ID: 1"
Height: 3"
Diameter Pulley: 5 3/8"
Direction: Counter clockwise
Uses belt width: 1/2"
Made by an OEM supplier
For proper ordering, reference Warner or Ogura part number stamped on clutch
Adjustment and maintenance free
Designed for rugged use
Residential and commercial applications
Torque correctly to prevent premature failure
| 5217 SERIES |
| ITEM | ATC # | WARNER # | INTERCHANGE / REPLACE OTHERS ( CODE + brand ) | PULLEY DIA | SHAFT | DIRECTION |
| 1 | LC21701 | 5217-46 5217-2 | 532145028 145028 YAZOO KEES
532145028 145028 POULAN
532145028 145028 AYP / ROPER
532145028 145028 DIXON
532145028 145028 ELECTROLUX
532145028 145028 HUSQVARNA | 255-515 STENS
X0002 XTREME
33-111 OREGON
7-06026 PRIME
9912 ROTARY | 03601800 ARIENS
03601800 GRAVELY | 5-3/8" | 1" | CCW |
1686882 / 1708536 / 1686882S / 1686882SM SIMPLICITY
1686882 / 1708536 / 1686882S / 1686882SM SNAPPER
1686882 / 1686882S / 1686882SM SNAPPER PRO | 145028 /1686882 / 532145028 /1686882S /1686882SM MASSEY FERGUSON 145028 /1686882/532145028/1686882S/1686882SM MCCULLOCH
145028 /1686882 / 532145028 /1686882S /1686882SM SEARS CRAFTSMAN |
5217-35
5217-7
5217-9
5217-6 | 160889 / 532160889 AYP / ROPER
160889 / 532160889 DIXON
160889 / 532160889 ELECTROLUX
160889 / 532160889 POULAN
160889 / 532160889 HUSQVARNA
160889 / 532160889 / 230-1236 EUROGARDEN | 1772388 / 717-1459 / 917-1459 / GW-1772388 TROY BILT
1772388 / 717-1459 / 917-1459 /GW-1772388 WHITE
1772388 / 717-1459 / 917-1459 /GW-1772388 BOLENS
1772388 /717-1459 / 917-1459 / GW-1772388 CUB CADET
1772388 /717-1459 / 917-1459 / GW-1772388 HUSKEE
1772388 /717-1459 / 917-1459 / GW-1772388 MTD
| 5-3/8" | 1" | CCW |
160889 AM119683 JOHN DEERE 03643100 ARIENS
03643100 GRAVELY
03643100 WOODS | 104-3334 TORO
104-3334 EXMARK
X0003 / X0003-K XTREME
7053740 SNAPPER PRO
532160889 JONSERED | 255-511 STENS
688EC SWISHER
33-112 OREGON
7-06027 PRIME
9911 ROTARY |
160889 / 1772388 / 7053740/ 532160889 / 717-1459 / 917-1459 MASSEY FERGUSON
160889 / 1772388 / 7053740/ 532160889 / 717-1459 / 917-1459 MCCULLOCH
53740 / 7053740 / 7053740S / 7053740SM SNAPPER
53740 / 160889 / 1772388 / 03643100 / 7053740 / 532160889 / 688EC / 7053740S / 7053740SM / 717-1459 /917-1459 / GW-1772388 SEARS CRAFTSMAN
|
5217-14
5217-42 | 717-3385 /717-3385A /717-3385AP /917-3385 /917-3385A /917-3385B WHITE
717-3385 /717-3385A /717-3385AP /917-3385 /917-3385A /917-3385B BOLENS
717-3385 /717-3385A /717-3385AP /917-3385 /917-3385A /917-3385B HUSKEE
717-3385 /717-3385A /717-3385AP /717-3385B /917-3385 /917-3385A /917-3385B MTD | 7-06265 PRIME
12231 ROTARY
X0014/X0014-K XTREME
230-2042 EUROGARDEN
255-293 STENS | 5.345" | 1" | CCW |
717-3385 /717-3385A /717-3385AP /717-3385B /917-3385 /917-3385A /917-3385B CUB CADET
717-3385 /717-3385A /717-3385AP /917-3385 /917-3385A /917-3385B SEARS CRAFTSMAN
717-3385 /717-3385A /717-3385AP /717-3385B /917-3385 /917-3385A /917-3385B TROY BILT
|
| 5217-36 |
|
|
| 135.2 | 1" | CCW |
| 5217-30 | 7-06299 PRIME | X0201 /X0201-K XTREME |
| 5.345" | 1" | CCW |
| 2 | LC21702 | 5217-32
5217-43 | X0013 /X0013-K XTREME
230-4085 EUROGARDEN
33-133 OREGON
7-06297 PRIME
11859 ROTARY
255-285 STENS
5217-43 SWISHER
| 717-04163 /717-04163A/917-04163 /917-04163A MTD
717-04163 /717-04163A /917-04163 /917-04163A BOLENS
717-04163/717-04163A /917-04163 /917-04163A CUB CADET
717-04163 /717-04163A/917-04163 /917-04163A HUSKEE
717-04163 /717-04163A /917-04163 /917-04163A TROY BILT
717-04163 /717-04163A /917-04163 /917-04163A WHITE
717-04163 /717-04163A /917-04163/917-04163A SEARS CRAFTSMAN | 6" | 1" | CCW |
| MTD | 717-04376 /717-04376A /717-04376 /917-04376A MTD
717-04376 /717-04376A /917-04376 /917-04376A BOLENS
717-04376 /717-04376A /917-04376 /917-04376A WHITE
717-04376 /717-04376A /917-04376 /917-04376A HUSKEE | 717-04376 /717-04376A /917-04376 /917-04376A SEARS CRAFTSMAN
717-04376 /717-04376A /917-04376 /917-04376A TROY BILT
717-04376 /717-04376A /917-04376 /917-04376A CUB CADET
X0399 /X0399-K XTREME | 6" | 1" | CCW |
| 5217-44 | 5217-48 5217-34 WARNER |
|
| 6" | 1" | CCW |
| 5217-28 | X0200 X0200-K XTREME | 230-9345 EUROGARDEN | 105-3462 TORO | 6" | 1" | CCW |
| 3 | LC21703 | 5217-20
5217-38
5217-8 | 1136-0837-01 /18399065/1 /19399060/0 CASTLE GARDEN | AM121972 JOHN DEERE X0007 /X0007-K XTREME | 14316 ROTARY 230-2037 EUROGARDEN | 5.20" | 1" | CCW |
| Prod Model: |
Warner 5217-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pto Electromagnetic Clutch: |
Warner 5217 Electric Pto Clutch |
| Pto Clutch: |
Mower Cltch |
| Lawn Mower Clutch: |
Electromagnetic Clutch |
| Pto Clutches: |
Replace Warner OEM |
| Part: |
Clutch Disc |
| Material: |
Steel |
| Certification: |
E-Mark |
| Stroke: |
4 Stroke |
| Usage: |
Farm Machinery |
