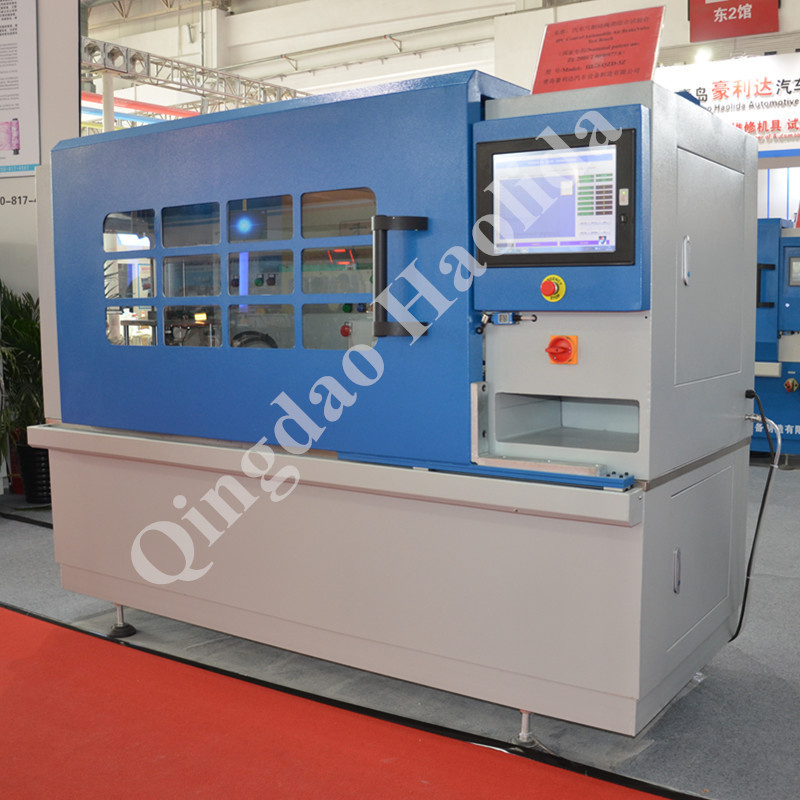

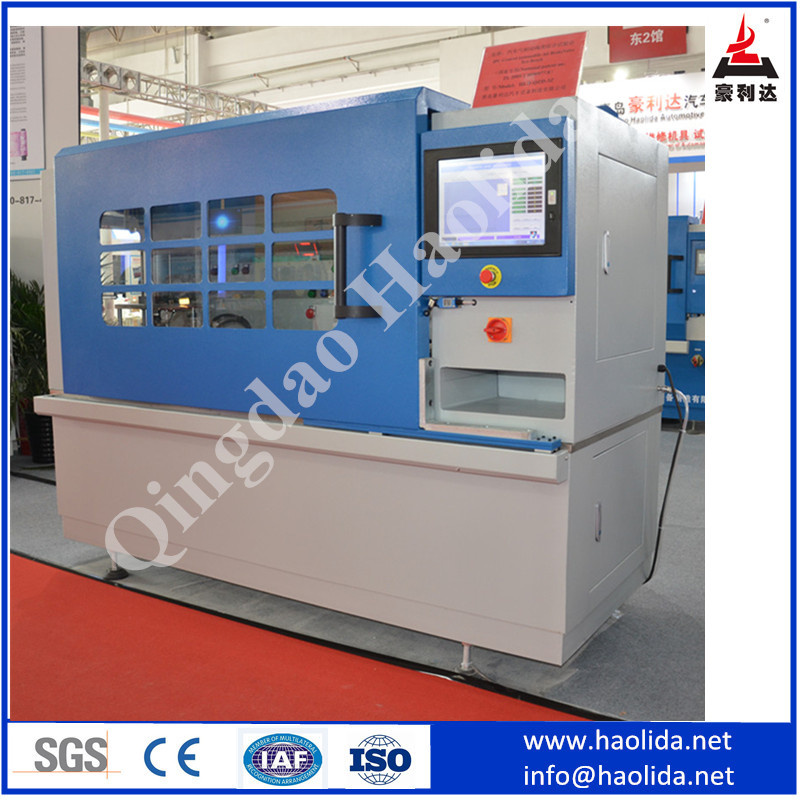

HLD-QZD-3Z model WABCO Valves Test Equipment
General introduction1.This test bench follows the national auto industry standard,adopts computer control and mechatronics principle, equipped with servocontrol system, and high precision pressure sensor, can make automatic test of tightness, opening, pressure to four circuit valve, quick release valve, relay valve, differential valve,etc air braking vavles. 2.The test bench can set randomly the working condition of the tested valves, and test their performance under different conditions (by changing the clamps, the test bench can make various performance test to four circuit valve, quick release valve, relay valve, differential valve,etc). It is suitable for maintenance and detection of various kinds of vehicles.3.Adopts advanced touch screen system to control the whole test process, programming running, display the test results real time and curves. 4.Equipped with soft keyboard, can set serial number, store, and follow up the tested valves, can make a dynamic test and data record to the whole test process.

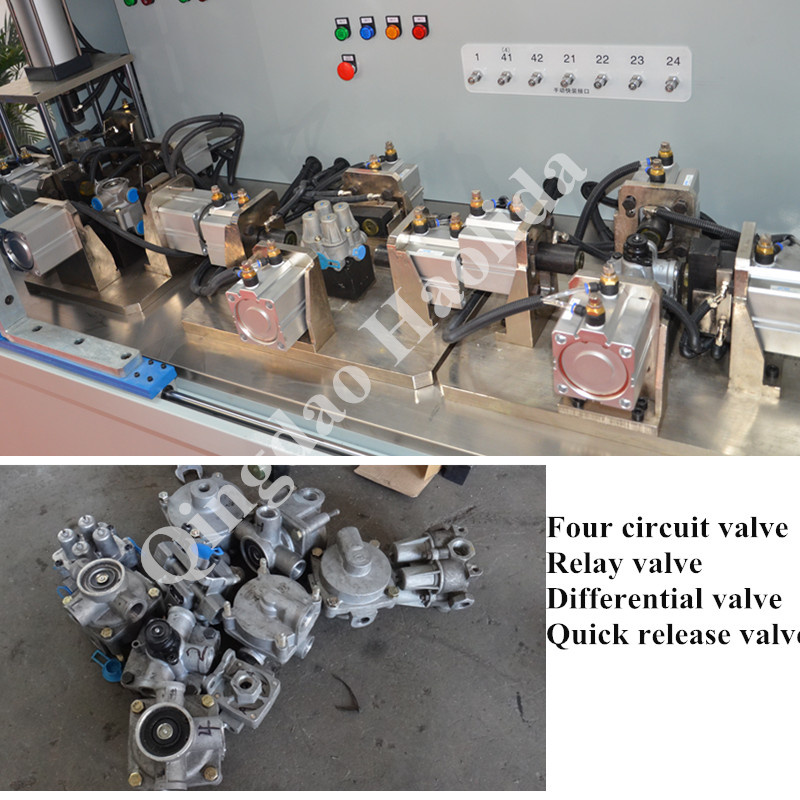

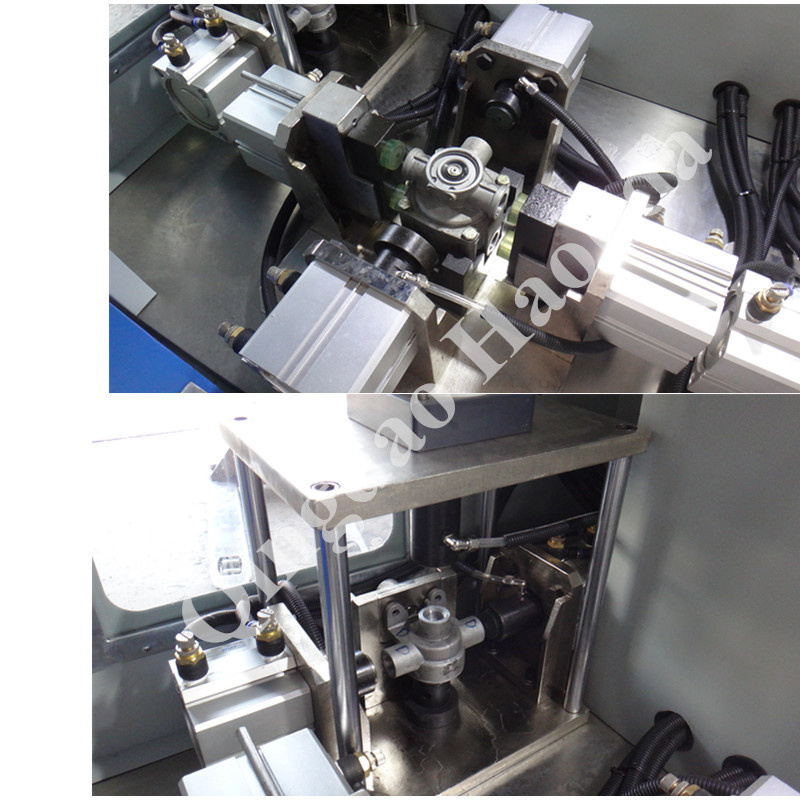

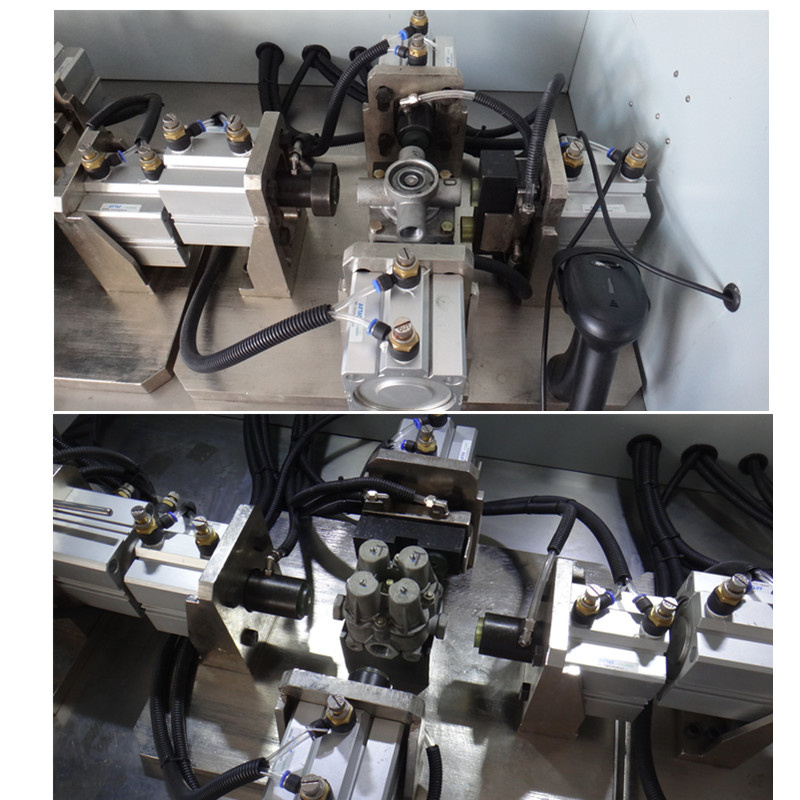

Test items: - Quick release valve: test the tightness of the quick release valve;
- Relay valve: test the air intake, and piston seal character, and piston opening pressure;
- Differential valve: test the air intake, and piston seal character, and piston opening pressure;
- Four circuit valve: test the tightness, opening pressure, closing pressure and sequence of each chamber.
Technical parameter: | Model no | HLD-QZD-3Z |
| Language | English |
| Material | Metal plate |
| Painting | Powder painting, durable and beautiful |
| Color | Blue |
| Voltage | 220V 50 Hz |
| input air source | 0-1.0Mpa |
| the tested pressure range | 0-1.0Mpa (adjustable) |
| test accuracy grade | ±0.5% |
| servo motor power | 400W speed ratio 3 |
| Accessories: |
| Accessory wires, etc. |
| Others you may want to know: |
| MOQ | 1set |
| Warranty period | 12 months |
| Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
| Delivery time | 35 days after receiving downpayment |
| HS code | 90312000.90 |
Why Choose us: - 32 years' design,development and produce experience
- Professional R&D team
- Strict QC
- A good pre-sale and after-sale service
- Can design and make according to customer's requests
| Prod Model: |
HLD-QZD-3Z |
| Power: |
220V 50Hz |
| Certification: |
RoHS |
| Update Method: |
by Hard Disk |
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.

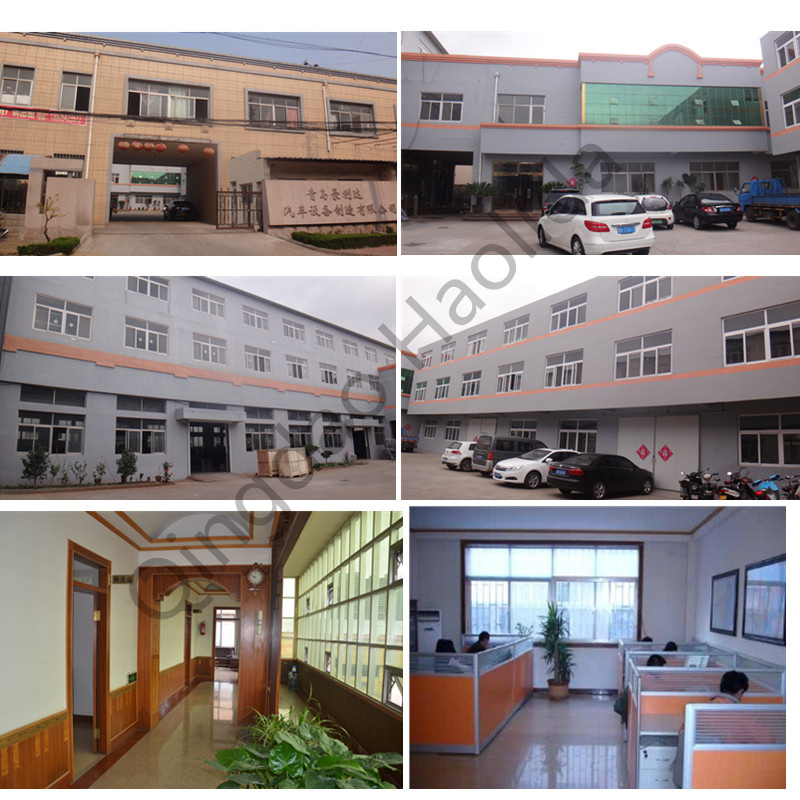

We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
