Prod Model: |
R425 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Displacement: |
2.499L |
Emission Level: |
Euro III, Euro IV, Euro V |
Engine Voltage: |
12V 24V |
Speed Governor: |
Electronic |
Starting Method: |
Electric |
Fuel System: |
High Pressure Common Rail |
Overall Dimension: |
540*645*682mm |
Net Weight: |
220kg |
Intake Pressure Impulse: |
Supercharged |
Speed: |
High Speed |
Piston Movement: |
Reciprocating |
Ignition Mode: |
Compression-Ignition |
Number Of Cylinders: |
Multi-Cylinder Machines |
Cooling Cylinder: |
Water-Cooled |
Number Of Strokes: |
Four-Stroke |
Cylinder Arrangement Form: |
L |
Fuel: |
Diesel Engine |
Product Description

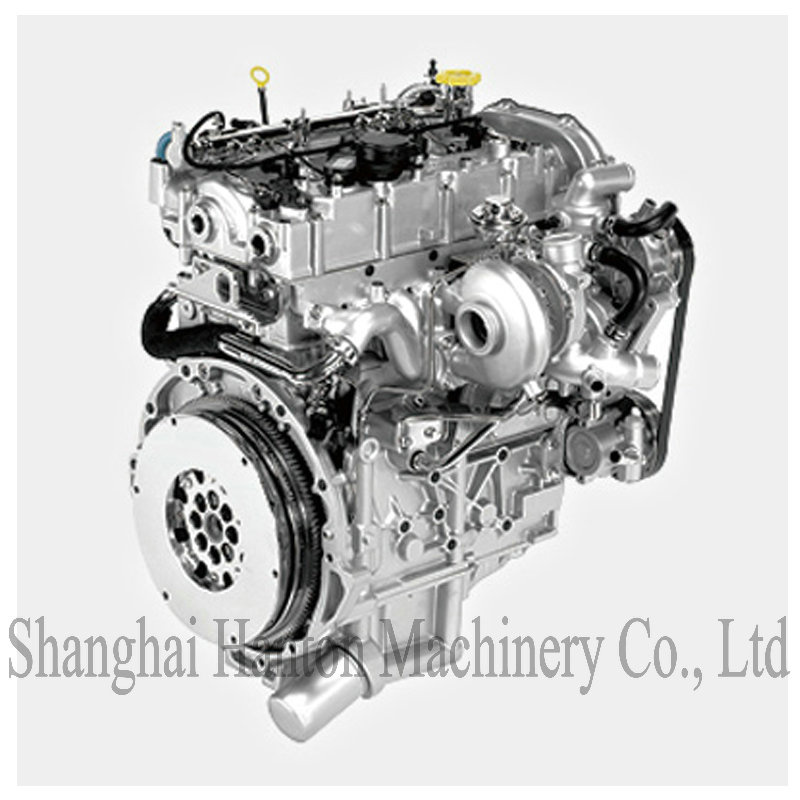

VM R425 industrail forklift auto bus diesel engine, power:
Model | Liter | KW/RPM | N.m/rpm | L/W/H | Weight |
A315 | 1.493 | 68/4000 | 200/2000 | 551/654/724 | 150 |
A420 | 1.991 | 110/4000 | 310/2000 | 661/660/750 | 175 |
R425 | 2.499 | 115/3800 | 360/1800 | 636/709/800 | 235 |
R425 | 2.499 | 105/4000 | 340/2000 | 540/645/682 | 220 |
R425 | 2.499 | 88/3600 | 280/1800 | 540/645/682 | 220 |
R425 | 2.499 | 90/3400 | 340/2000 | 540/645/682 | 220 |
R425 | 2.499 | 105/3400 | 360/2000 | 540/645/682 | 220 |
R428 | 2.776 | 120/3800 | 400/1800 | 636/709/800 | 235 |
R428 | 2.776 | 110/3800 | 360/1800 | 740/623/765 | 220 |
R428 | 2.776 | 82/3200 | 280/1600 | 740/623/765 | 220 |
R428 | 2.776 | 92/3200 | 320/1600 | 740/623/765 | 220 |
R428 | 2.776 | 102/3400 | 360/1600 | 740/623/765 | 220 |
R428 | 2.776 | 110/3600 | 340/1800 | 740/623/765 | 220 |
A630 | 2.935 | 184/3800 | 550/2000 | 688/727/693 | 225 |
D754G68E2 | 2.97 | 50/2600 | 210/1400 | 694/519/685 | 235 |
D754G95E2 | 2.97 | 70/2600 | 335/1300 | 720/557/736 | 238 |
D754G70E3 | 2.97 | 51.5/2600 | 250/1800 | 720/546/687 | 235 |
D754G81E3 | 2.97 | 59.8/2600 | 274/1800 | 720/508/740 | 233 |
D754G81E3 | 2.97 | 70/2600 | 420/1000 | 720/508/736 | 231 |
D704G82E2 | 2.776 | 60.5/3000 | 290/1400 | 720/557/736 | 230 |
manufactured by VM license factory in China.
Besides, we also sell other brands, diesel and gasoline, including Cummins, Deutz, Isuzu, Iveco, VM, CAT, Toyota, Nissan, Suzuki, Yuchai, Weichai, Changchai, for various applications, like generator set drive, water pump drive, fire pump drive, industrial and construction (road roller, forklift, excavator, wheel loader, bulldozer, hoister, trailer, etc), marine main propulsion, marine auxiliary genertor set, automobile (bus, coach, van, MPV, SUV, pick-up, etc), etc, complete engines and spare parts,
Including cylinder head, cylinder block, main bearing, conrod bearing, alternator, starter motor,
Piston, piston ring, conrod, cylinder head gasket, oil seal, seal O ring, crankshaft, camshaft,
Timing gear, etc.
We entered indutry of diesel engine since September of 2008, nearly 10 years so far. Since that time, we focused in made-in-China engines with international brands, with brands like Cummins, Deutz, MWM, Perkins, Isuzu, Detroit, Komatsu, CAT, Weichai, Yuchai, Sinotruk, etc. The applications of the engines can be different, including generator set, industril, marine, marine auxiliary, water pump set, truck, automobile, fire fighting, special trucks, etc.
Together with the delelopment of our businesses, we become more and more professionaly in diesel engine industry and exportation of diesel engines, and expand our businesses to related products, such as gas engines, gearboxes, water pumps, and auto body parts (only Brilliance and Jinbei), thanks to supports from our partners.
Besides complete engines, we also export many engine parts every year.
We pay much attention to packing of all goods, and offer optimized packings, ensuring no damage in shipments, either by express, by air or by sea.
Furthermore, thanks to our forwarders and carriers, we are also offering best choice for shipment, and ensure fast delivery. While at the same time, our documentation colleagues ensure fluent customs declaration and clearance.
So, any requirement or introduction is always welcomed, please feel free to contact us for more information.
