| Prod Model: |
SP194-E |
| Model Name: |
Cy300 |
| Update: |
Via Offcial Website |
| Suppot 4 System: |
Obdii OBD2 Diagnostic Code Reader |
| Warranty: |
One Year Warranty |
| Function 1: |
Displays Monitor and I/M Rediness Status |
| Function 2: |
Turns off Mil, Clears Codes and Resets Monitors |
| Function 3: |
Oil Reset Function |
| Delivery Time: |
Within 1 Working Days After Payment |
| Item Type: |
Code Readers & Scan Tools |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
Product Description

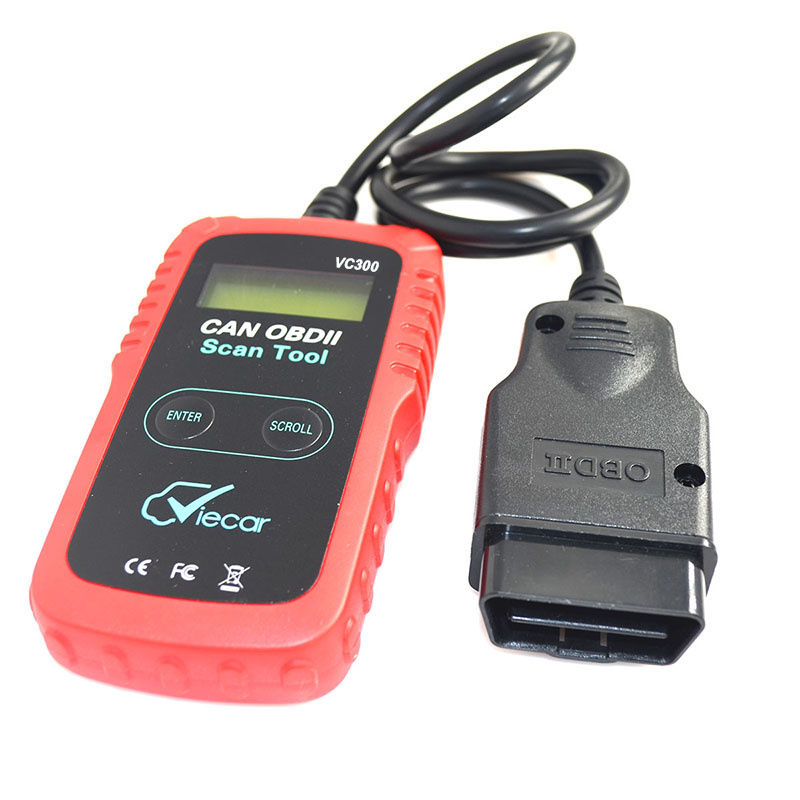

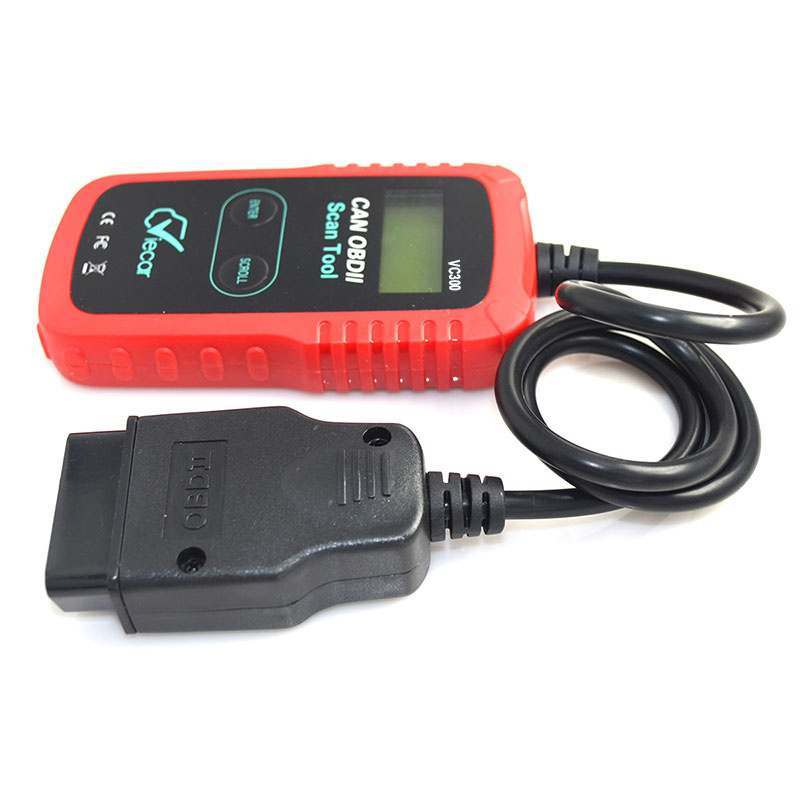

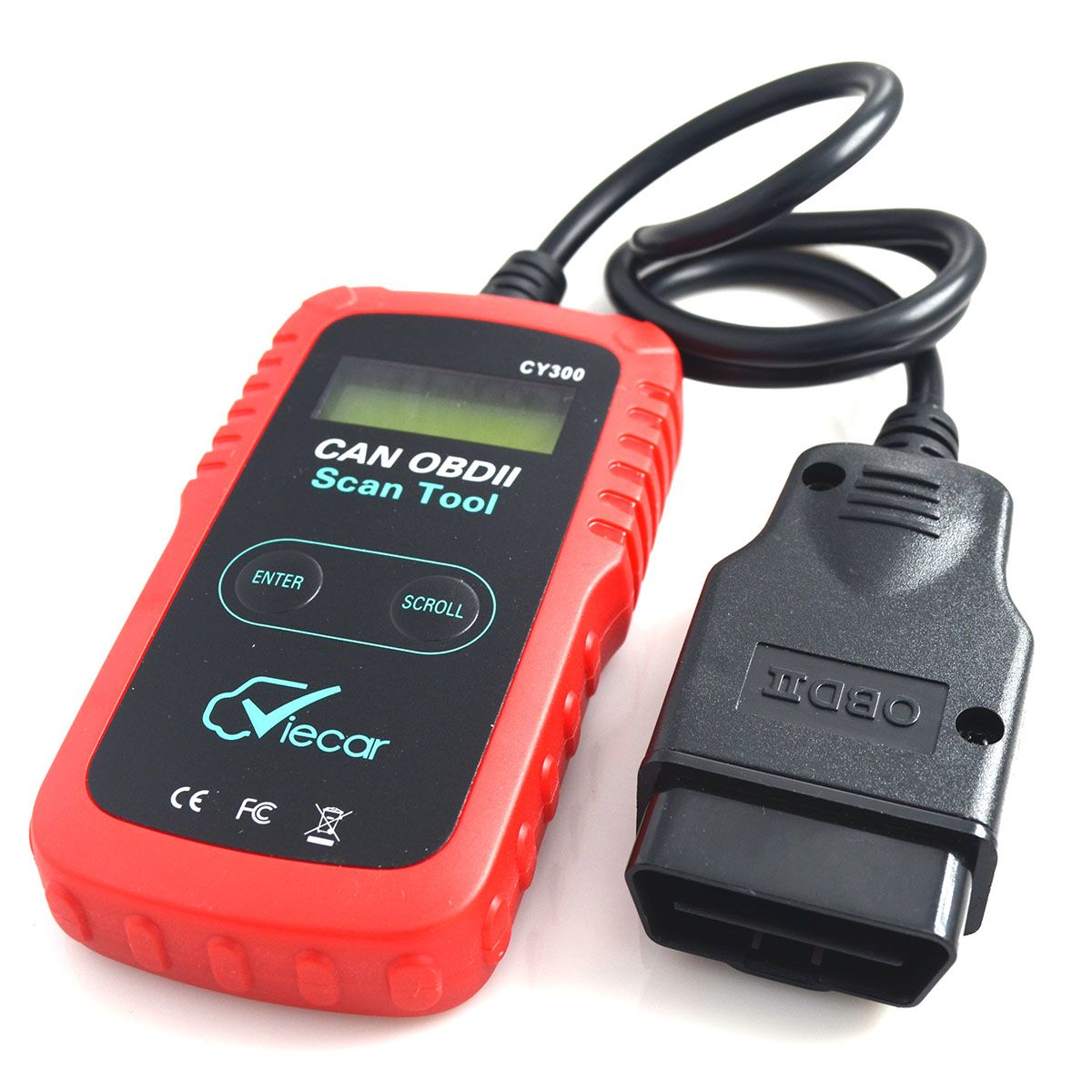

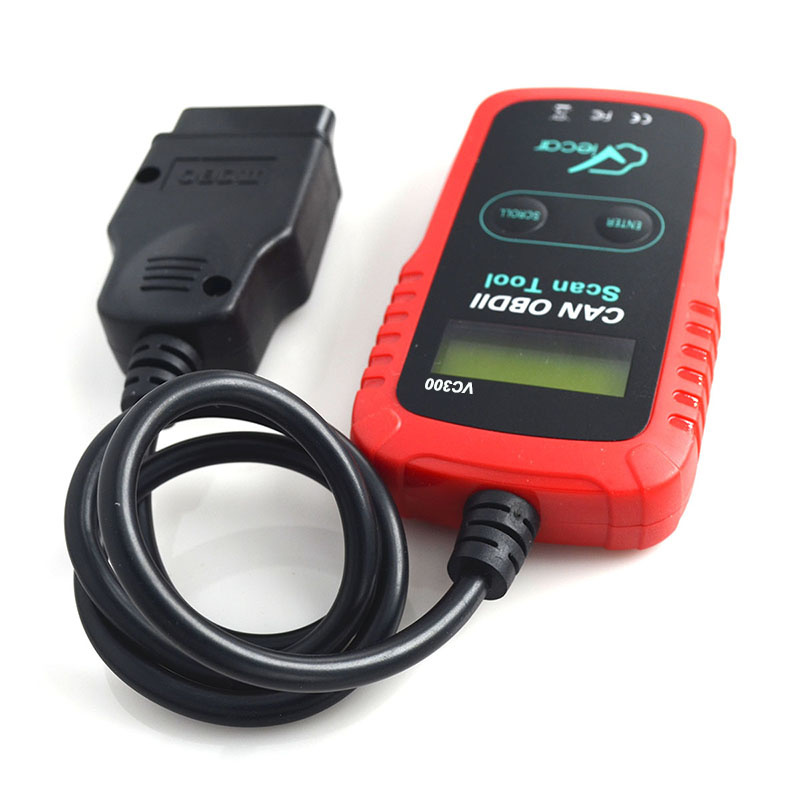

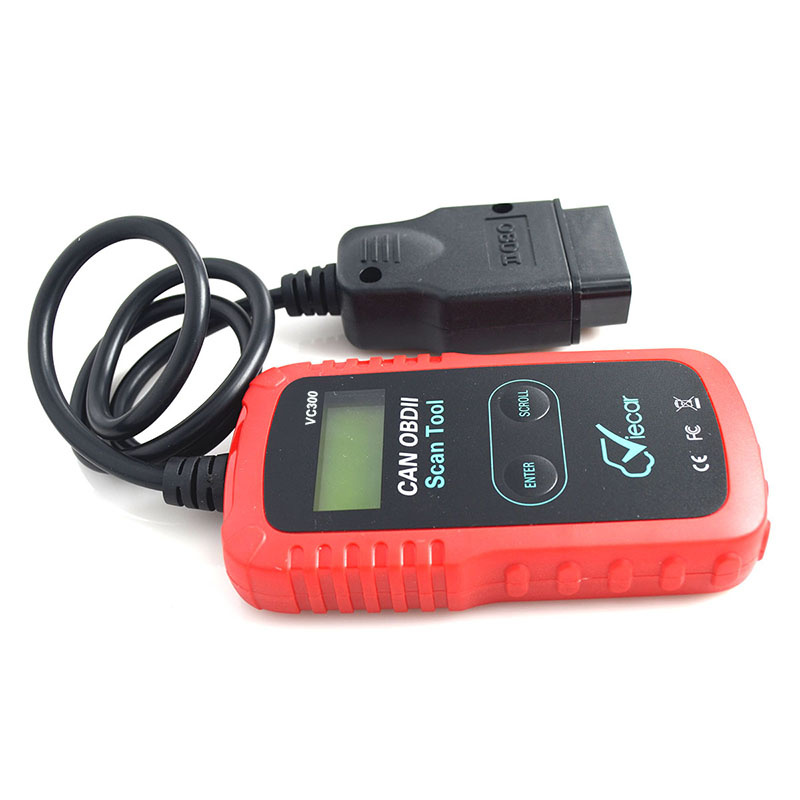

OBD2 Diagnostic Interface Tool VIECAR CY300 ELM327 OBD2
Scanner VC300 Support SAE J1850 Protocol
The Viecar VC300 code reader supports all OBD II protocols, including the newly-released Controller Area Network (CAN) protocol.
Though it is small, it is able to retrieve same information as large expensive scanners!
A small number of gasoline vehicles (1994 and 1995 model year) are the OBD II compliant. To verify if a 1994 or 1995 vehicle with OBD II compliant or not, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles.
That is, if the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission
Control Information Label must state that the vehicle is OBD II compliant.
Viecar VC300 Supported OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Viecar VC300 Features :
Work with all vehicles after 1996 that are OBD II compliant (including CAN)
Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light
Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
Review the emission readiness status of OBD monitors
Determine the malfunction indicator lamp (MIL) status
Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
Easy to use with one plug-in
Free CD software with over 7000 DTC definitions
No batteries needed-powered via detachable OBD II cable
Viecar VC300 Specifications:
Display: Backlit LCD, 2-line, 8 characters
Operating Temperature: 0 to 50 C (32 to 122 F)
Storage Temperature: -20 to 70 C (-4 to 158 F)
Power: 10.0 to 15.5 Volts provided via vehicle battery
Dimensions: Length 4.4" (113 mm) Width 2.9" (74 mm) Height 0.83" (21mm)
Weight: 281g

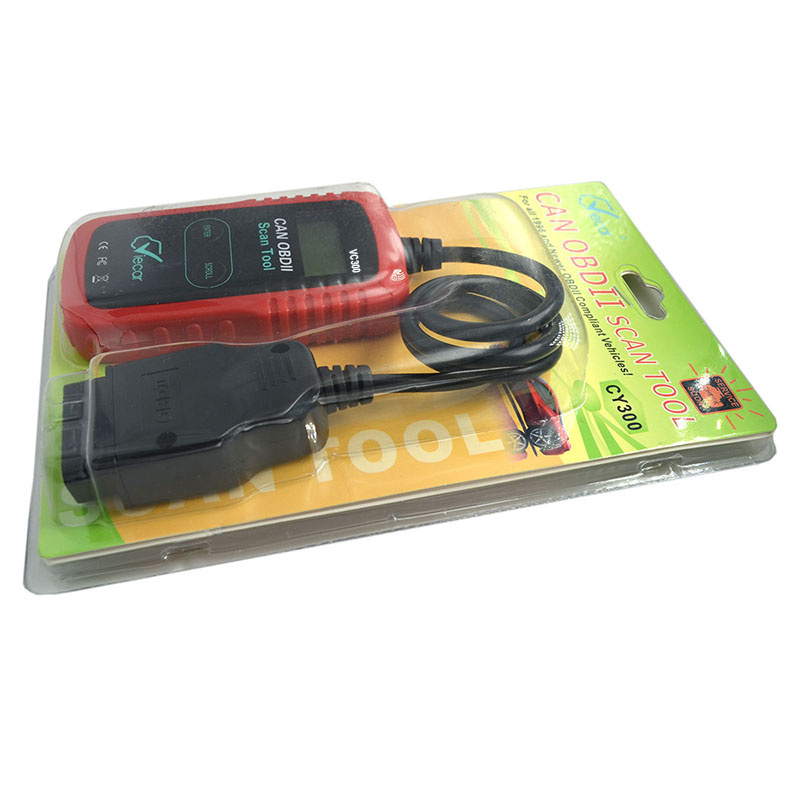

Package Includes:
1pc x CY300 (VC300)Auto mobile diagnostic
