Vgate Elm327 Bluetooth Icar3 V2.1 Code Reader Supports Android Torque Elm 327 Icar 3 Bt Vgate OBD/OBD2 Diagnostic Tool Interface

Prod Model:	SC02-E01
After-Sale Services:	One Year Warranty
Function:	ECU Code Reader
System Required:	for Android
Applied To:	OBD 16 Pin Gasoline Vehicels
Color:	5 Kinds of Color for Choice
Special Features:	Bluetooth
Item Type:	Code Readers & Scan Tools
Language:	English
Hardware Version:	V2.1
Certification:	CE
Update Method:	by Email
Testing Equipment Type:	Code Reader

Product Description

Note:

This elm327 usually can work on most new car with OBD 16pin Aadapter and 12V engine:
For USA Car brand,after 1996;
For Europe Car brand,after 2000;
For Japan/Korea Car brand,after 2002;
For Chinese Car brand,after 2005;

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep;
Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault, Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu, Fit for Land Rover, Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar;
Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai  ,Fit for Dacia  ,Fit for Lexus ,Fit for Mazda, Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota;

*For Lada/ VAZ/ UAZ car makes, please don't purchase If your car is before 2011.
*For Ssangyong car makes, please don't purchase If your car is before 2008.
*For Renault Dacia Logan car model, please don't purchase If your car is before 2009.


in program ELM327 identifier,it shows below.
icar2  bluetooth V2.1


Function:

1.Read, erase and display code descriptions problems - both standard and

spetskodov manufacturers.

2.Measure the fuel consumption.

3.Display real-time operating performance of the car, such as momentum,

vehicle speed, oil pressure, coolant temperature, engine load, intake manifold

pressure, throttle position, the values of oxygen sensors, air intake

temperature, and more.

4.Turn off the MIL (signal Check Engine).

5.Download data to external media in a variety of formats for later printing.

6.Record various parameters, display graphics in real time, and more.



With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

iCar 3 scan tool is a high-quality automotive scanning tool, supports all OBD-II protocols Automatic.



Support Protocols:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(2 9bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)



Item-Paramete:


1.Supply voltage(VDD):12V

2.Work temperature range: -20 ~ +70

3.Storage temperature range: -40 ~ +125

4.RF sensitivity(Basic Rate): -85db

5.Modulation Mode: GFSK

6.Frequency Range:2402 ~ 2480MHZ

7.Transmission Range:10M

8.Bluetooth Profile:SPP

9.UART Params:38400,8,n,1

10.Small size, compact structure. Plug and never unplug

11.Stable wireless connection

12.No wires or batteries (adapter is powered by the diagnosis size sockets)

13.Stop communication, wait half an hour, auto sleep

14.Supports all OBDII protocols

15.The adapter uses the fastest and most reliable ARM chips



The device is a small adapter that plugged into the vehicle OBD-connector.

On Bluetooth, it connects to any computer, tablet or smartphone, With

associated diagnostic procedures .

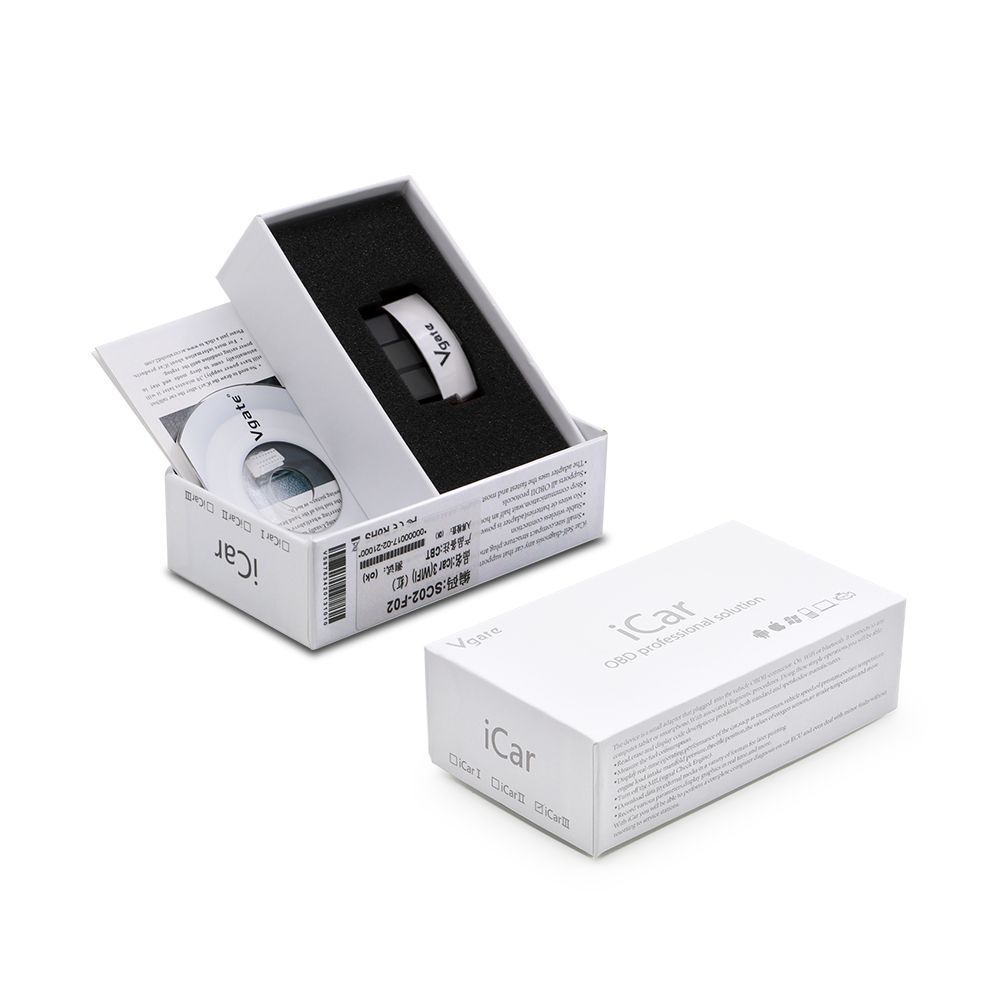

Packing-list:

1x iCar 3 bluetooth
1x CD
1x Carrying box

FAQ(pictures are for referation only):

Note:if icar bluetooth, the OBDII name is VC001*,Please kno
