| Prod Model: |
Motorcycle Piston TMM-CH50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Steel |
| Model Number: |
Various Model |
| Place Of Origine: |
China |
| Specificaiton: |
CH50 |
| Suit Motorcycle: |
Honda, YAMAHA, Bajaj, Kawasaki, Suzuki |
| Market: |
Global |
| Free Sample: |
Available |
| Type: |
Motorcycle Engine |
| Certification: |
CE |
| Material: |
Steel |
Product Description

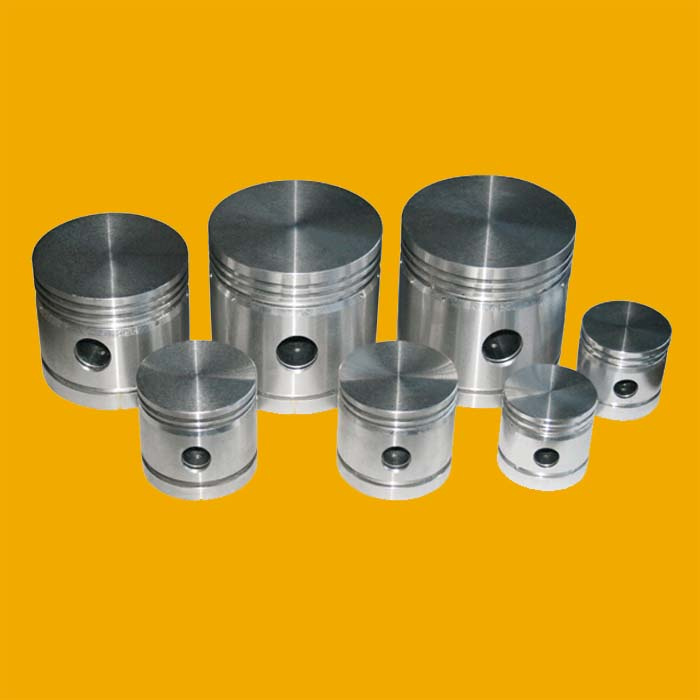

Various Model Motorcycle Piston for Motorcycle
1.Motorcycle Piston Material:steel
2.Motorcycle Piston Packing :as your requirement.
3.Motorcycle Piston Lead Time:20days
3.Motorcycle Piston Modes as blow
| O.E.M.REF.NO. | MODEL | NO. CYL | HEAD TYPE NO. | CYL. DIA. | TOTAL HIGH | COMP. DIST. | RING | PIN |
| COMP. | OIL | DIA. | LENGTH |
| 13101-GK4-670 | CH50 ,GK4 | 1 | 5 | 39 | 36.5 | 18 | 1.0-2 | 2.0-1 | 13 | 31 |
| 13101-036-010 | C50 | 1 | 4 | 39 | 50.5 | 24.5 | 1.2-2 | 2.5-1 | 13 | 31 |
| NZ50 | 1 | 1 | 40 | 49 | 26 | 1.5-2K |
| 10 | 33 |
| 01631-GWO-900 | DIO50 | 1 | 1 | 39 | 53 | 30 | 1.2-1K 1.5-1K |
| 12 | 33 |
| L50,NH50 | 1 | 23 | 40 | 50.8 | 27.8 | 1.5-2K |
| 10 | 33 |
| 13101-GS7-000 | GS7-50,DJ1 | 1 | 1 | 41 | 47.7 | 22.7 | 1.5-2K |
| 10 | 33 |
| 13101-147-315 | NC50,NA50 | 1 | 1 | 40 | 50.8 | 27.8 | 1.5-2(1K) |
| 10 | 33 |
| JH50 | 1 | 1 | 40 | 50.8 | 27.7 | 1.5-2(1K) |
| 10 | 33 |
| JS50 | 1 | 1 | 40 | 50.8 | 27.7 | 1.5-2(1K) |
| 10 | 33 |
| GY6-60 | 1 | 9 | 44 | 33.5 | 19 | 1.0-2 | 2.5-1 | 13 | 33 |
| 13101-087-00 | C70-087 | 1 | 11 | 47 | 54.3 | 25.3 | 1.2-2 | 2.5-1 | 13 | 38 |
| 13101-087-SP | C70SP | 1 | 31 | 47 | 49 | 25 | 1.2-2 | 2.5-1 | 13 | 38 |
| 06131-GB5-760 | JH70 | 1 | 33 | 47 | 41.15 | 19.15 | 1.0-2 | 2.0-1 | 13 | 38 |
| 13101-126-750 | CD70C,CD70F ,CD80 | 1 | 33 | 47 | 44.1 | 20 | 1.0-2 | 2.0-1 | 13 | 38 |
| 13101-087-712 | C70MK3 | 1 | 11 | 47 | 49 | 25 | 1.2-2 | 2.5-1 | 13 | 38 |
| 06131-GBO-000 | GBO,C800 | 1 | 11 | 47 | 46.8 | 23 | 1.2-2 | 2.5-1 | 13 | 38 |
| 13101-107-000 | CB100K2 | 1 | 31 | 50.5 | 54 | 25 | 1.5-2 | 2.5-1 | 14 | 41 |
| 13101-384-000 | CB100K3 | 1 | 31 | 50.5 | 54.3 | 25.3 | 1.5-2 | 2.5-1 | 15 | 41.5 |
| 13101-KGA-B00 | TITAN2002/2003 | 1 | 49 | 56.5 | 40.2 | 23.2 | 0.8-2 | 2.0-1 | 13 | 40 |
| 06131-GB6-760 | GB6,C800A,ASTREA | 1 | 26 | 47 | 42.8 | 20.8 | 1.0-2 | 2.0-1 | 13 | 38 |
| 06131-GB4-670 | GB4,C90-LUXE | 1 | 8 | 47 | 41.7 | 19.7 | 1.0-2 | 2.0-1 | 13 | 38 |
| 06131-GB1-000 | GB1,C90,SY90 | 1 | 4 | 47 | 48 | 23 | 1.2-2 | 2.5-1 | 15 | 38 |
| GY680 | 1 | 9 | 47 | 34.1 | 17.1 | 1.0-2 | 2.0-1 | 13 | 36.5 |
| 13101-087-712 | C75 | 1 | 11 | 47 | 49 | 25 | 1.2-2 | 2.5-1 | 13 | 38 |
| 06131-GC8-000 | NH80 | 1 | 1 | 48 | 50.7 | 27.7 | 1.5-2(1K) |
| 12 | 41 |
| LEAD80 | 1 | 1 | 48 | 55.5 | 27.5 | 1.5-2(1K) |
| 12 | 41 |
| 13101-028-070 | CS90 | 1 | 11 | 50 | 54.5 | 26 | 1.2-2 | 2.5-1 | 14 | 41 |
| 13101-GTO-000 | TH90,A-SATREA (GN8) | 1 | 33 | 47 | 42.4 | 20.4 | 1.0-2 | 2.0-1 | 13 | 38 |
| 13101-GW3-00 | L9E90,NH90 | 1 | 1 | 48 | 56 | 28 | 1.5-2(1K) |
| 12 | 41.5 |
| CH100 | 1 | 7 | 50 | 42.1 | 19.1 | 1.0-2 | 2.0-1 | 13 | 38 |
| 13101-168-00 | MB100,H100S | 1 | 1 | 50.5 | 64 | 34 | 1.5-2K |
| 14 | 42.5 |
| AT100 | 1 | 1 | 50 | 55.4 | 27.4 | 1.5-2(1K) |
| 12 | 41 |
| 13101-GF6-00 | WIN100,JD100 | 1 | 7 | 50 | 44.2 | 19.2 | 1.0-2 | 2.0-1 | 13 | 38 |
| 13101-383-000 | CG125 | 1 | 13 | 56.5 | 55 | 26 | 1.2-2 | 2.5-1 | 15 | 47.5 |
| 13101-GN5-000 | C100,CD100,DREAM,PRIMA | 1 | 7 | 50 | 44.2 | 19.2 | 1.0-2 | 2.0-1 | 13 | 38 |
| 13101-439-000 | GL100,CT110 | 1 | 11 | 52 | 55.5 | 26.6 | 1.2-2 | 2.5-1 | 15 | 41.5 |
| 13101-KC5-000 | GLMAX | 1 | 33 | 52 | 51 | 25 | 1.0-2 | 2.0-1 | 15 | 41.5 |
| 13101-441-930 | XL125 | 1 | 11 | 56.5 | 56.1 | 27.1 | 1.2-2 | 2.5-1 | 15 | 47.5 |
| 13101-KC1-00 | CB125T | 2 | 9 | 44 | 48.3 | 24.8 | 1.0-2 | 2.5-1 | 13 | 34 |
| 13101-KV6-000 | VF125 | 1 | 16 | 56.5 | 43.8 | 23.8 | 1.2-2 | 2.5-1 | 15 | 43 |
| 13101-KCW-000 | FD125,KCW125 | 1 | 4 | 52.4 | 37.2 | 20.2 | 1.0-2 | 2.0-1 | 15 | 41.5 |
| 06131-GY6-000 | GY6125,SCOOTER1215 | 1 | 7 | 52.4 | 37 | 20 | 1.0-2 | 2.0-1 | 15 | 41 |
| 13101-KK6-00 | CBX125 | 1 | 19 | 58 | 49 | 24 | 1.0-2 | 2.0-1 | 15 | 45 |
| L125 | 1 | 22 | 55 | 61.8 | 30.3 | 1.5-2(1K) |
| 14 | 47 |
| SY125 | 1 | 4 | 56 | 52 | 23 | 1.5-2 | 2.5-1 | 15 | 47 |
| 13101-KGA-900 | TITAN2000 | 1 | 13 | 56.5 | 43.8 | 23.9 | 0.8-2 | 2.0-1 | 15 | 42 |
Company Profile
Shenzhen derui sourcing Co., Ltd is subsidiary of TIMRCH (HK) industrial Co., Limited which was founded in HK at year 2005. With more than 10 years merchandise-sourcing experience in providing complete end to end sourcing solutions from products concept to after-sale support. Our local background, leverage and 10 years experience avail our clients of the best cost performance.
Shenzhen Derui Sourcing Co., Ltd has recognized a very professional and highly efficient team with focus on details, quality control, service and won good reputation among our international clients around the world throught helping them sourcing the best cost proformance products made in China and setting up their own complete supply chain in China.
Main Products
Body parts:head light,rear light,turning light,rear mirror,left&right switch assy,handle bar,hand grip,handle lever,left&right side cover,rear carrier,speedometer,fuel tank,seat assy,front&rear fender,fork assy,muffler,front&rear absorber,footrest,frame,front &rear wheel,front &rear wheel hub,hub cover,brake shoe,wheel axle,main cable,air filter,tire,fuel switch,chain&sprocket,ignition coil,flasher,CDI,rectifier,spark plug,battery,brake padel,etc.
Engine parts:cylinder head,cylinder head cover,cylinder block assy,gascket,intake&exhaust value,camshaft,rock arm,pistion kit,crankcase,clutch,starting shaft,oil pump,stator,kick starter,roller set,bearing,belt,crankeshaft,etc
Please contact with us freely if you want to learn more information.
