Product Name: ultra high pitch dual Daxian 32 inch 3D four wheel aligner

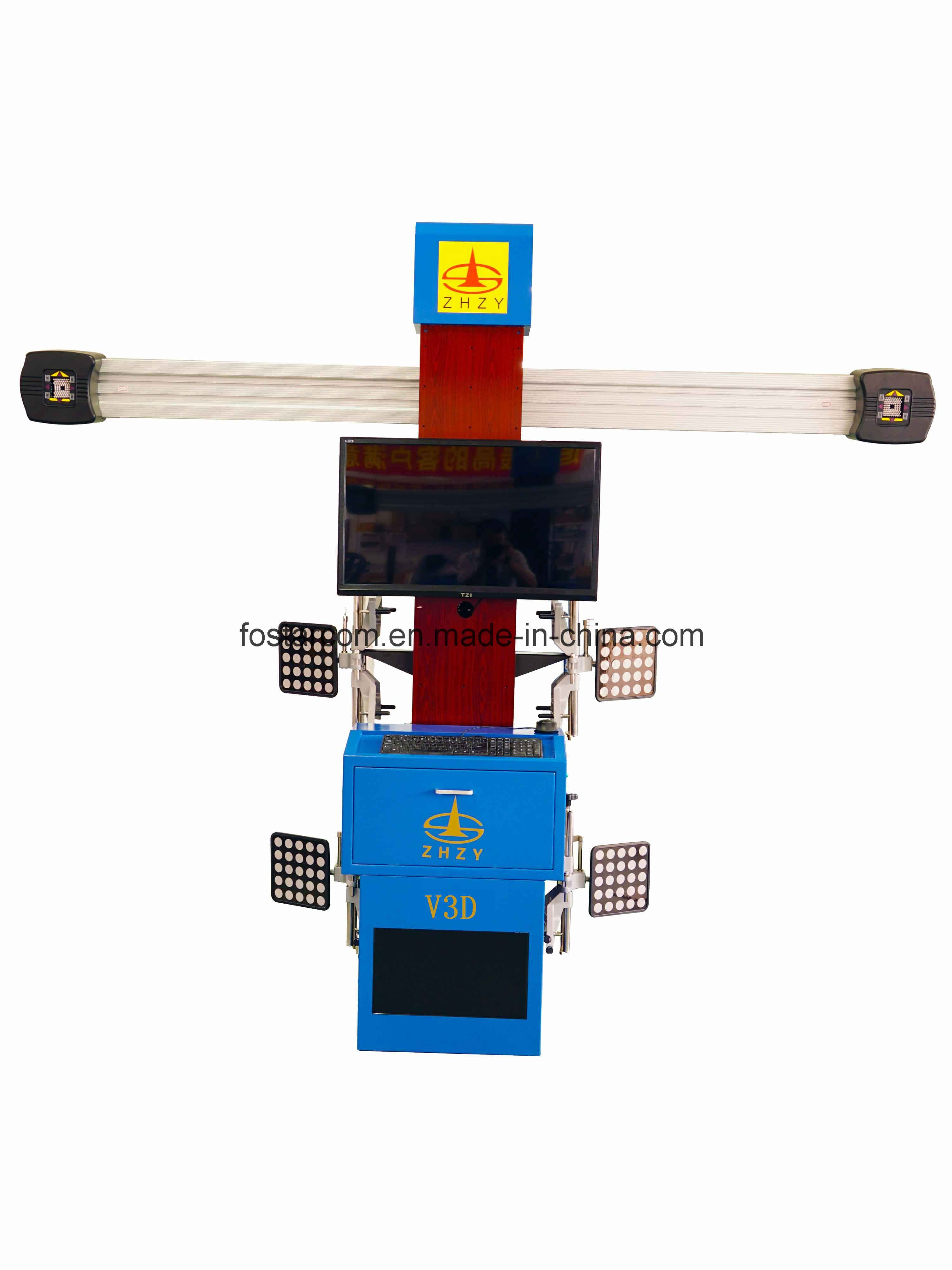

The product appearance picture is as follows: (main color blue cabinet, redwood furniture color aluminum alloy column)
Origin; China - Zhuhai
1. product features: the use of Aluminum Alloy party as column, surface oxidation of mahogany furniture color, Aluminum Alloy beam by oxidation Aluminum Alloy full integration, cabinet column fixed design, imported SONY camera, HDMI HD display data.
2. product model: V3D-300M
Product features: four plate interchangeable, reflecting plate can be divided into around, with rapid detection function without cart, using genuine WIN8 operating system, easy to learn, chassis and post fixed practical design classic, with four mm high strength column made of this material Aluminum Alloy, double display. LED-32 multi-function LCD TV show. Matching Tablet PC online.
The camera uses imported SONY camera, camera lens and phase 5 million, the speed and performance of the camera response in the industry is outstanding, 30 photos per second speed, the cart of our time (detection time dynamic) is less than 3 seconds, the few manufacturers can achieve such a short period of time in the industry. It is different from the FSD series, the main camera driver, using the WIN8 operating system, using a single Mandarin version of the language, only for domestic sales of a model
3. main technical parameters of products
| Location parameter | Accuracy (center value) | Accuracy range | Maximum measuring range |
| Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement repeatability±0.01°or0.01mm |
| Toe | ±0.015° | ±0.01° | ±30° |
| Dip angle | ±0.025° | ±0.01° | ±30° |
| Kingpin inclination | ±0.025° | ±0.01° | ±15° |
| Kingpin inclination | ±0.025° | ±0.01° | ±20° |
| thrust angle | ±0.015° | ±0.01° | ±6° |
| Maximum turning angle | ±0.015° | ±0.01° | ±30° |
| Recession angle | ±0.015° | ±0.01° | ±6° |
| Tread | ±0.25cm | ±0.01° | 3000mm |
| Wheelbase | ±0.25cm | ±0.01° | 8000mm |
| diagonal | ±2mm | ±0.3cm | 12000mm |
| Rolling radius | ±2mm | ±0.3cm | 700mm |
4. Standard accessories are as follows:
| Product accessory name | Number of parts | Product accessory name | Number of parts | Remarks |
| Aluminum alloy Liang Zongcheng | 1 | Cabinet, column assembly | 1 | |
| Aluminum alloy corner plate | 2 | Four point fixture | 4 | |
| Direction fixing bracket | 1 | Front and rear wheel stop | 4 | |
| Computer host | 2 | Monitor | 2 | 32/18.5" |
| Keyboard, mouse | 1 | Whole wire harness | 1 | |
| Liang Zongcheng coupling | 1 | Column seat | 1 | |
| Column cap | 1 | Fixture hanger | 4 | |
5. main features of the product
0.1) camera reaction speed, low temperature performance and good, can be at about 30 degrees Celsius low temperature work, cart time only 3S, camera speed is 30 pictures per second speed
0.2) reflective panels over sight range, within 12 meters or so within the scope of the target, can be extended vehicle detection;
0.3) measuring accuracy in the industry first-class;
0.4) software supports a variety of reflective patterns;
0.5) products have been certified by ISO quality system and exported to EU CE certification;
0.6) Guan Jian reflector plate using four plate interchangeable type, can be divided into about, including any machine on the plate can be interchangeable, without calibration
0.7) computer attached to 3D operation screen, easy to operate. It has the function of self installation and operation guide.
0.8) software operation is simple, easy to use. Intuitive 3D display
0.9) National UNPROFOR, remote service system;
10.) all over the country are equipped with after-sales service network, remote technical support
11.) product regular return visit system. Continuous innovation, once a year, data free updates of data packets
12) the product is specially designed for the trench type, with a lower display to facilitate data viewing.
13) manufacturers free training staff
14) dynamic calculation of body parameters is not affected by the unevenness of the lifting machine
15) automatic calculation of body parameters and rolling, compensation of body parameters
16) software intuitive response to the four wheels of the car and the need to solve the problem of repair
The above products need matching printer, notebook computer, nonstandard display size and tablet computer as the accessories.
