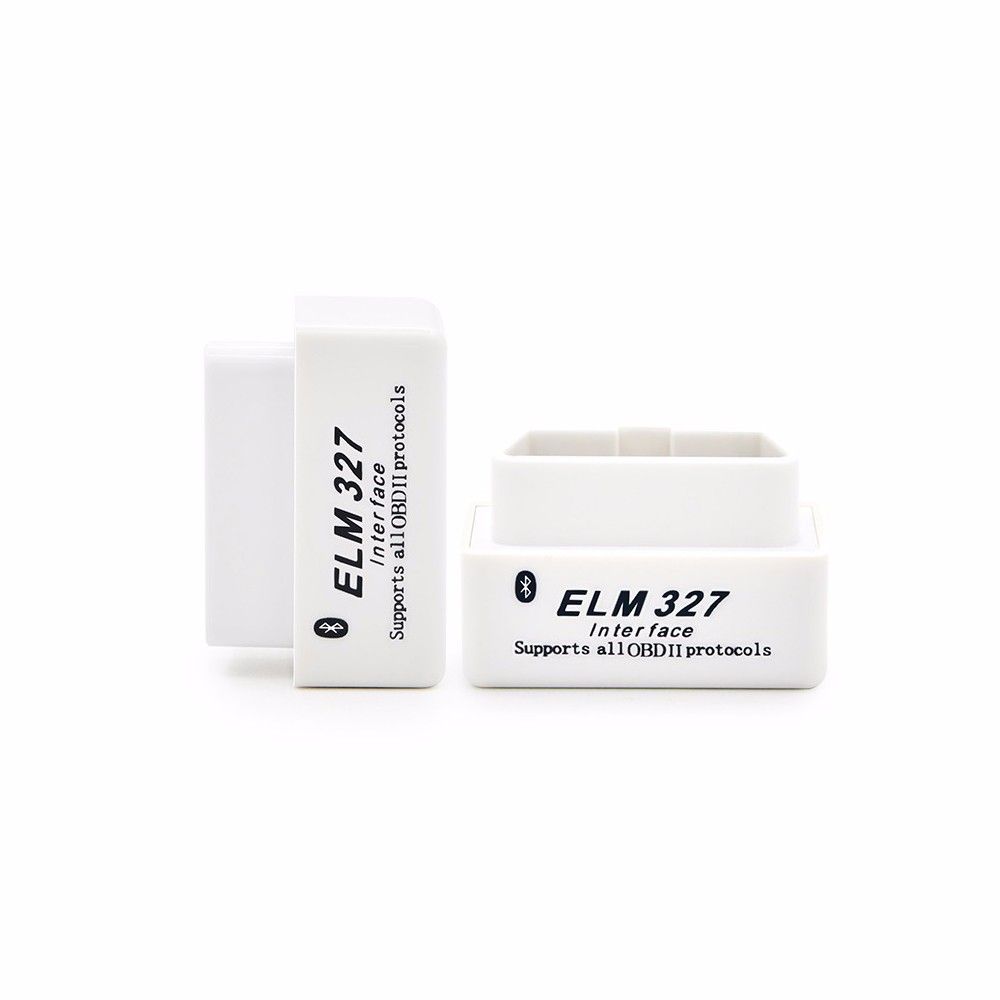

V1.5 Super Mini Elm327 Bluetooth White Color OBD2 / Obdii Code Scanner
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SC02-L01 |
| Bluetooth Password: |
1234 or 0000 |
| After-Sale Services: |
One Year Warranty |
| Elm327 Function: |
ECU Code Reader |
| Mobile System Required: |
Android 4.0+(Ios Is Not Supported) |
| Applied To: |
OBD 16 Pin Gasoline Vehicels |
| Delivery Time: |
Within 1 Day After Payment |
| Update Method: |
by Email |
| Testing Equipment Type: |
Code Reader |
Product Description
High Quality Super Mini Elm327 Bluetooth V1.5 Version White Color for Choice
Top Reason to Choose V1.5 Hardware:
1. PICI8F25K80 Chip, real ELM327 1.5 version support 9 protocol include SAE-J1850 PWM , JAE J1850 VPW(for F-ord old cars and for G M old cars use this protocol like Explorer 1998 )
2. Higher Quality. Say NO to poor quality , Save your time and money!
3. More support , provide useful app for ELM327 Like TORQUE
4. If the CD is broken,pls download software from: 360diag.net .
cheap v2.1 elm327 vs our v1.5 elm 327:
Highlights:
1.The newly developed wireless scan tool.
2.It supports almost OBD-II protocols.
3.firmware:V1.5
4.Bluetooth connection, no Batteries, Cables, or Switches.
5.Wireless (Bluetooth) 5~ 10 meters
6.Retrieve Fault Codes (DTCs) and clear Check Engine lights.
7.Can also be used with a PC with a Bluetooth Card.
Features:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Set the maximum number of responses to obtain
4.Remove spaces from ECU responses (to speed data transmission)
5.Store a unique identifier in EEPROM
6.Set the CAN mask and filter with one command
7.Easily switch between variable and fixed CAN message lengths
8.Send CAN remote frames (RTRs)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...
Multi-Protocol Support:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
B--Item-Parameter
Vehicle Coverage:
Works on almost OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles :
Alfa Romeo/ Ad/ Bentley/ BW/ C-adillac/ C-hevrolet/ Chrysl/ C-itroen/ Daewoo/ F-iat/ F-ord/ G-M/ Hod/ H-yundai/ Isuzu/ J-aguar/ J-eep/ Kia/ L-and Rover/ L-exus/ M-azda/ Mercury/ Mini/ N-issan/ M-itsubishi/ Opel/ P-eugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ S-koda/ Toyt/ Vauxhall/ V-olvo/ VW
For your information:
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
Software Included:
1.Scantool_net113win (Full Version)
2.EasyOBDII V2.2 (Free Version)
3.OBD2Spy (Demo Version)
4.Scan Master-ELM (Demo Version)
5.wOBDCRAZY (Demo Version)
This hardware can match much other software still! But most of them are not free!
Works for Windows98/ME/2000/XP/Vista & 7!
This tool does not match abs and airbag system!
Packing List
1pc x Advanced obd scan tool interface
1pc x CD driver
