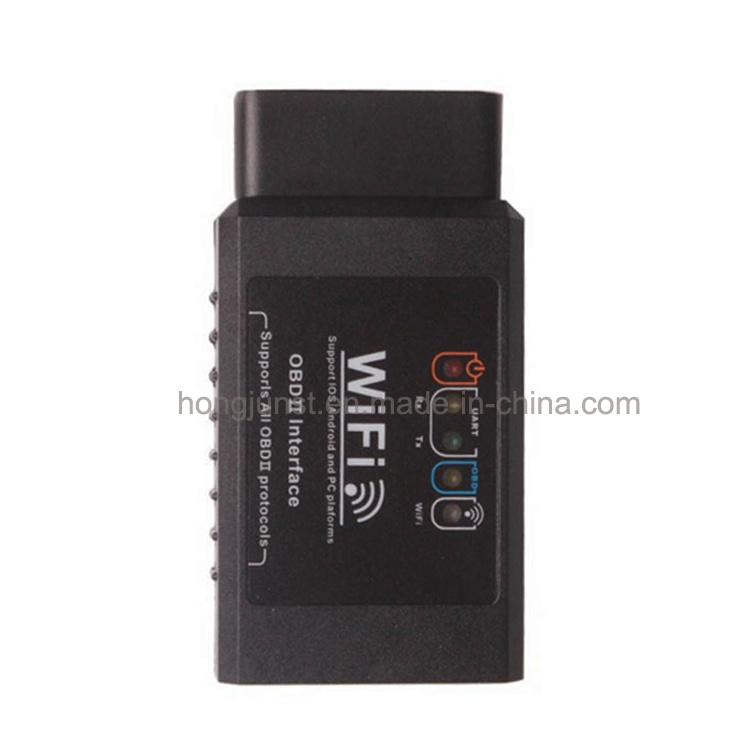

V1.5 Elm327 WiFi OBD2 Eobd Scan Tools

V1.5  ELm327 WIFI OBD2 EOBD Scan Tools

1. Brand: Hongjun

2. Part Name: Auto Car Scannner

3. Application: Universal Car Model
4.  Min. order: 30pcs
5. Leading time: 3~6 working days



    By using this device, you can monitor your cars from Android,PC, Mac, iPhone, iPad, to do inspection by yourself! It would save your money and time.

Features:
Works with most OBD-II compliant vehicles.
Works on all 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok.
Software included in CD for Smartphone, PC and iOS (work on iPhone, iPad, iTouch, Mac).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

The elm327 wifi Compatible Protocols as follow:

OBD2 Supported:

    SAE J1850 PWM (41.6 kbaud)
    SAE J1850 VPW (10.4 kbaud)
    ISO 9141-2 (5 baud init, 10.4 kbaud)
    ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
    ISO 14230-4 KWP (fast init, 10.4 kbaud)
    ISO 15765-4 CAN (11 bit ID, 500 kbaud)
    ISO 15765-4 CAN (29 bit ID, 500 kbaud)
    ISO 15765-4 CAN (11 bit ID, 250 kbaud)
    ISO 15765-4 CAN (29 bit ID, 250 kbaud)
If your car not in above protocols, the item will can not work.

Display real-time sensor data, including:
    1.Vehicle Speed
    2.RPM
    3.Fuel Consumption
    4.Engine Coolant Temp
    5.Fuel Pressure
    6.Calculated Engine Load
    7.Throttle Position
    8.Intake Manifold Pressure
    9.Air Intake Temp
    10.Timing Advance
    11.Mass Air Flow
    12.Fuel Level
    13.Barometric Pressure
    14.EVAP System Vapor Pressure
    15.Fuel Trim
