| Prod Model: |
CM-312 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor Available: |
PC1030/PC7070/Mt9V136/PC1089 |
| Camera Degree: |
170 Degree |
| Waterproof: |
Yes |
| TV System: |
PAL/NTSC |
| Minimum Illumination: |
0.1lux |
| Pixels: |
628X582 |
| Resolution: |
420tvl/480 Tvl/520tvl Optional |
| Interface: |
RCA |
| Chip: |
CMOS |
| Waterproof Grade: |
IP68 |
| Definition: |
480TV Lines |
Product Description

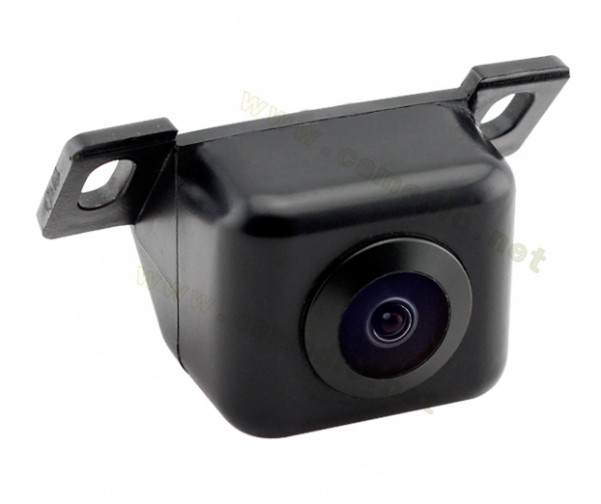

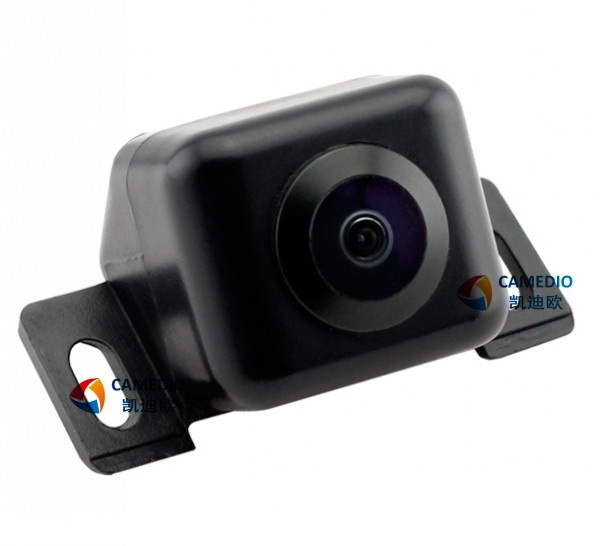

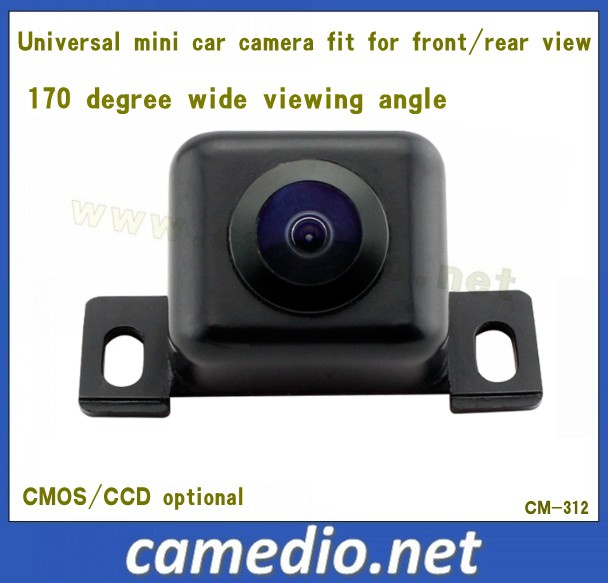

1)Popular mini square bracket car camera with high quality image and waterproof
2)Wide viewing angel 170 dgree
3)PA/NTSC optional
4)Suitable for side view in Mirror image without parkin distance lines
5)Suitable for rear view in mirror image with parking distance lins
6) Suitable for front view in original image without parking distance lines.
7) Image sensor optional: PC1030 CMO,PC3030 CMOS, MT9V136 analog CCD, PC1089 CCD
Specification:
Image sensor:Color CMOS PC7070/PC1030
TV system:NTSC/PAL
Effective pixels:658 x 462 Pixels/628 x 586 Pixels
Sensing area:5.961 x 4.276mm
Horizontal resolution:420TVL
Shutter speed:1/60-20us
Minimum illumination:0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle:170°
White balance:Auto
Color:Black
Waterproof:IP67-IP68
Video output:1.0Vp-p, 75ohm
Current Consumption:No More 300mA
Power supply:DC 12V
Operating Temperature:-20°C~ 60°C, RH95% Max.
Storage temperature:-30°C ~ 60°C, RH95% Max.
Video cable length:6m
Power supply cable length:1.5m
Technical Specifications:
1,TV Systems: NTSC/PAL
2, Image Sensors: Color CMOS
3,Total Pixels: 688*488
4, Resolution: 480 TV Lines
5, Lens: 2.8mm
6,Video Output: 1.0vp-p composite video at 75ohm
7, Power Supply: DC 9V-15V
8,Operating Temperature (Deg. C) -30o C~ +70o C
9,Water Proof, Anti-Shock
Specifications for different image devices:Specifications for different image devices:Car Rear View Camera |
Chip | PC7080 | 1409 | PC1058 | MCCD |
Optical format | 1/4 inch | 1/4 inch | 1/3 inch | 1/2 inch |
Resolution | 480TVL | 800TVL | 750TVL | 650TVL |
Effective pixels array | 648*488 | 1024*720 | 960*576 | 768*582 |
Horizontal angle | 100 deg. | 120 deg. | 120 deg. | 130 deg. |
Lens | 2G2P | 6G | 2G3P | 6G |
Waterproof | IP67 |
Output format | PAL or NTSC |
Connector | RCA/4PIN DIN optional |
CE&FCC | Approved |
Working Voltage | DC 12V |
Working Tem./Hum. | -20°C~70°C, RH.95% MAX. |
Storage Tem./Hum. | -30°C~80°C, RH 95% MAX. |
OEM/ODM | Accepted |
