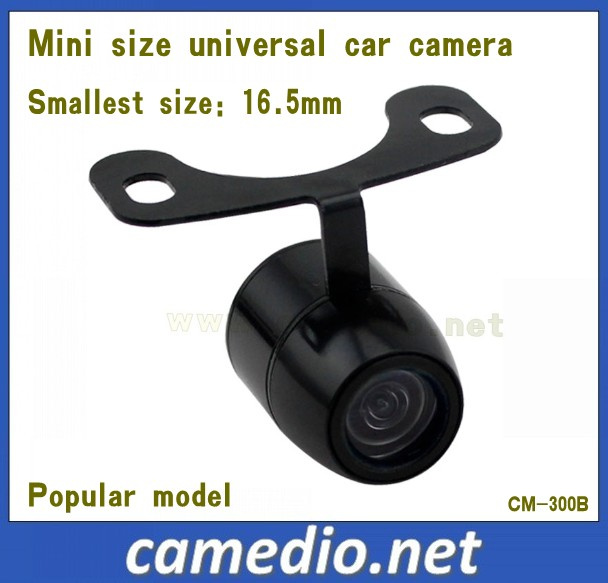

1)smallest mini size :16.5mm diammeter
2)day/ Night Vision 480TV lines Car Camera suitable for front view/rear view
3) with image sensor PC7070 480 TV lines CMOS in default
4) PAL/NTSC TV Systems optional.
5)Waterproof design, weather-resist.
6) Image sensor optional: PC1030 420 TV lines, MT9V136 analog CCD 480 TVlines
Specification:
Image sensor:PC7070
1. Effective pixels: 682*504 pixels
2. Video output: 1Vp_p±10%
3. Scanning system: 2: 1 interlace
4. Minimum illumination: 0.01 Lux/F=1.2(0 Lux with IR on)
5. Operation temperature: -20° C - 75° C, RH 95% MAX
6. TV system: PAL/NTSC
7. Sensing area: 3.8 mm *2.9 mm
8. SNR:>47.2dB
9. Lens angle: 135° /170°
10. Resolution: 480 TV lines
11. Shutter speed: 1-1/10000
12. White balance: Auto
13. Waterproof: IP67/68
14. Power supply: Analog : 2.8V, HVDD : 2.8V, CVDD : 2.8V
15. Working temperature: -20° C - 70° C, RH 95% MAX
Main features:
1, Universal car Rearview Backup Camera
2, 170 Degree wide viewing angle
3, Die cast Metal housing
4, Small and compact design
5, Completely waterproof housing
6, Metal anti-theft bracket
7, Simple installation for installers
8, Low light sensitivity fo 0.1 Lux
9, Reverse image
10,Color: Black
11,Requires a 12V DC power supply
Package:
1 x Color car rear view camera
1 x 1.5 Power supply cable
1 x 6m Video cable
1 x English user manual
2 x screws
Specifications for different image devices:| Image Sensor | Color CMOS PC1030 | Color CCD PC3030 | Color MT9V136 | Color PC1089K |
| TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixels | 648*488Pixels | 728(H)*488(V) | 720*576/480Pixels | 928(H)*500(V) |
| Horizontal resolution | 420TVL | 480TVL | 480TVL | 500TVL |
| Sening area | 4.08mm*3.12mm | 3.584mm*2.688mm | 3.584mm*2.688mm | 3.584mm*2.688mm |
| Shutter speed | 1/60-1/5000 | 1/60-1/20000 | 1-1/10000 | 1-1/10000 |
| Minimum Illumination | 0.1lUX/F=1.2(OLux with ON | 0.1Lux/F=1.2(Olux with ON) | 0.01Lux/F=1.2(OLux with OR ON) | 0.01Lux/F=1.2(Olux with OR ON) |
| Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm |
| Power Supply | DC12V | DC12V | DC12V | DC12V |
| Operating temperature | -20°C~75°C,RH 95%MAX | -20°C~75°C,RH 95% MAX | -20°C~75°C,RH 95% MAX | -20°C-75°C,RH 95% MAX |
| Storage temperature | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX |
| Lens angle | 170° | 170° | 170° | 170° |
| Waterproof | IP69K | IP69K | IP69K | IP69K |
| White Balance | auto | auto | auto | auto |
