Drive shaft

1. Application of drive shaft

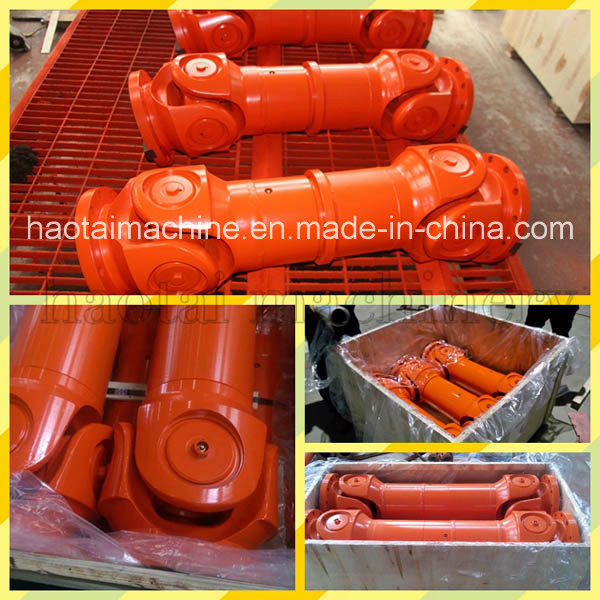

Drive Shafts for industrial Applications commnoly known as cardan shafts. It is one of the most widely used transmission components. The SWC type cardan shaft is the most universal shaft series structure is compact. The most powerful. The carrying capacity of the highest reliability model.

2. Technical parameter

Type	Design	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1
	Data	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1	SWC-1
	Item	58	65	75	90	100	120	150	180	200	225
A	L	255	285	335	385	445	500	590	640	775	860
A	Lv	35	40	40	45	55	80	80	80	100	120
B	m(kg)	2.2	3	5	6.6	9.5	17	32	40	76	128
B	L	150	175	200	240	260	295	370	430	530	600
C	m(kg)	1.7	2.4	3.8	5.7	7.7	13.1	23	28	55	98
	L	128	156	180	208	220	252	340	348	440	480
	m(kg)	1.3	1.95	3.1	5	7	12.3	22	30	56	96
Tn(kN·m)		150	200	400	750	1250	2500	4500	8400	16000	22000
Tf(kN·m)		75	100	200	375	630	1250	2250	4200	8000	11000
β(°)		35	35	35	35	35	35	35	25	25	25
D		52	63	72	92	100	112	142	154	187	204
Df		58	65	75	90	100	120	150	180	200	225
D1		47	52	62	74.5	84	101.5	130	155.5	170	196
D2(H9)		30	35	42	47	57	75	90	110	125	140
D3		38	38	40	50	60	70	89	102	114	140
Lm		32	39	45	52	55	63	85	87	110	120
k		3.5	4.5	5.5	6	8	8	10	12	14	15
t		1.5	1.7	2	2.5	2.5	2.5	3	4	4	5
n		4	4	6	4	6	8	8	8	8	8
d		5.1	6.5	6.5	8.5	8.5	10.5	13	15	17	17
MI(kg)		0.14	0.16	0.38	0.38	0.53	0.53	0.87	0.87	1.65	2.14
Flange bolt	Size	M5	M6	M6	M8	M8	M10	M12	M14	M16	M16
Flange bolt	Tightening torque(Nm)	7	13	13	32	32	64	110	180	270	270

1. Notations:

L=Standard length, or compressed length for designs with length compensation;

LV=Length compensation;

M=Weight;

Tn=Nominal torque(Yield torque 50% over Tn);

TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strength

Under reversing loads;

β=Maximum deflection angle;

MI=weight per 100mm tube

2. Millimeters are used as measurement units except where noted;

3. Please consult us for customizations regarding length, length compensation and

Flange connections.
