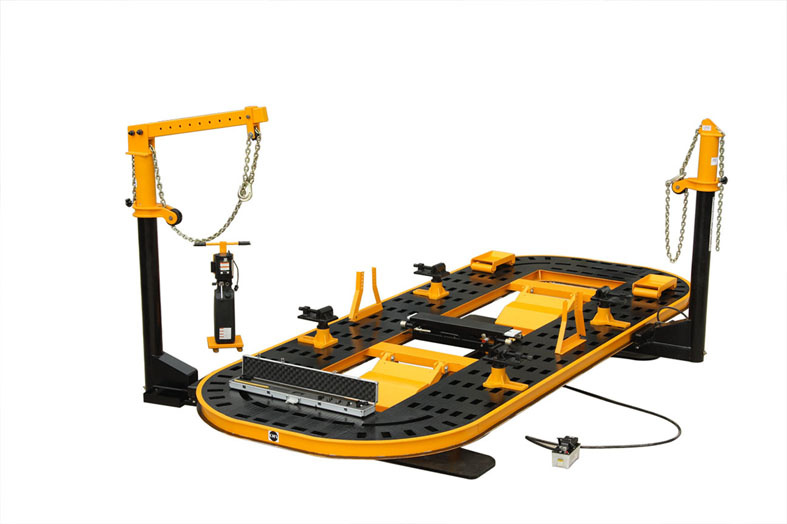

Universal Auto Collision Repair Equipment (U300)

The U300 is a new generation luxury car reshaping system newly
Developed by our Company, taking the lead in the industry thanks to its unique properties, complete equipment, and powerful functions. It is appropriate for various cars, microbus, and cross-country trucks both imported and domestic.
1. The vertical lift platform can be raised to a height of 300 ~ 1050 mm that is accessible to any accident handling vehicle without cranes, taking care of mechanics of different heights.
2. The hydraulic twin-pulling tower can flexibly work at an angle from 0 - 360° And the oil cylinder operates perpendicularly with an accurate and strong pull force.
3. The imported assembled hydraulic system from the U. S. A. Is powerful,
Reliable, and of a long service life.
4. The high accuracy super work platform provides a best place for versatile applications of one unit.
5. The general-purpose mechanical measuring system can be easily used to perform three-dimension measurement on the car.
6. A data manual for various models of different series of latest cars is provided, with body data information from database presented by Mitchel Corporation and domestic big automobile companies.
7. A complete plate work stretching and pulling tool kit is furnished, considering any type of reshaping and the kit is convenient and flexible.

SPECIFICATIONS
Platform Length: 5700mm
Platform Width: 2100mm
Platform Height: 300-1050mm
Hydraulic Pressure: 70MPa (10000psi)
Post Max. Tension: 95KN
Post Working Rang: 360°
Pneumatic Pressure Range: 0.8MPa
Max. Lifting Weight: 3500kg
Total Weight: 3000kg
