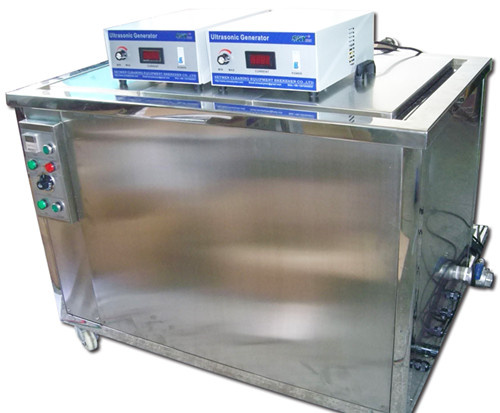

Ultrasonic Cleaner for Motor Parts Washing/Cleaning

Ultrasonic cleaner for motor parts washing/cleaning

How ultrasonic cleaner works?
The main washing principal of ultrasonic cleaner is to transfer sound energy into mechanical vibration. Its ultrasound radiates the cleaning solution through cleaning the cell wall. The ultrasound which is radiated makes the micro-bubble in the liquid keep vibrating under the effect of sound wave. When sound pressure or sound intensity reaches a certain degree, bubble would quickly expand and suddenly close. During this process, the instant of closing bubble would create shock wave, and produce pressure of 1012-1013PA and high temperature around bubbles. The great pressure created by ultrasonic cavitation would depart non-soluble contaminants and differentiate them into liquid. Steam type cavitation has impact on dirt directly and repeatedly.

Remark:
1. Tank size and other functions can be custom made
2. Customer logo is acceptable
3. Packing by wooden case
4. Lead time is negotiable according to qty. And custom made requirements

Wish to serve for you.

Customized ultrasonic cleaner JTS series & optional capacity

We are able to supply ultrasonic cleaning tanks of any size to suit any application. No matter how big your components are, Ultrawave can specify, design and manufacture ultrasonic cleaning systems to suit your complex needs.
Advantages
Saves high labour costs.
Increases plant productivity and capacity.
Removes any kind of dirt, even below 20 micron.
Extreme cleaning homogeniety.
Shorter cleaning cycles than other systems.
Easy automation of in/out-let parts flow.
Customized design for any kind of material or form.
Reduces consumption of detergents and other chemicals.
Minimizes non-conformity of series for quality reasons.
Fully automated dosing of chemicals and maximum yearly average working times.

Excellent cleaning effect

Please inform the size of your car parts,
Or choose the tank size fits your car parts:

Model: Skymen™		JTS-1012	JTS-1018	JTS-1024	JTS-1030	JTS-1036	JTS-1072
TANK'S WORKING DIMENSION (mm)	L1	355	406	500	500	500	1000
	W1	305	305	355	406	460	600
	H1	355	460	500	500	550	600
OVERALL DIMENSION (mm)	L2	535	586	680	710	710	1210
	W2	485	485	535	586	640	780
	H2	750	680	720	720	770	720
TANK'S TOTAL CAPACITY		38L	56L	88L	101L	126L	360L
TANK'S MATERIAL		SUS304/SUS316L
IN-TANK SURFACE FINISHING		Hard-Cr Plating Treatment ( 20+ microns )
HOUSING'S MATERIAL		SUS 304/SUS316L
ULTRASONIC FREQUENCY*		28kHz / 40kHz
ULTRASONIC TRANSDUCER		12	18	24	30	36	72
ULTRASONIC OUTPUT POWER (MAX.)		600W	900W	1200W	1500W	1800W	3600W
ELECTRONIC GENERATOR		KG600	KG900	KG1200	KG1500	KG1800	KG3600
		Build-in	Separate
HEATER'S (HOT PLATE) POWER		1.5kW	3kW			4.5kW		9KW
CLEANING TANK'S POWER REQUIREMENT		AC 220V / 240V, 1, 15AMP				AC 220V / 240V, 1, 25AMP
GENERATOR'S POWER REQUIREMENT		----		AC 220V / 240V, 1, 13AMP
NEW PRODUCT 68kHz / 80kHz / 120kHz are also available
