| Prod Model: |
SHL-Y-J-30CBL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
3kw |
| Lifting Height: |
1880mm |
| Main Lifting Capacity: |
3600kg |
| Initial Height: |
105mm |
| Certification: |
ISO |
| Design: |
Scissor |
| Type: |
Four Cylinder Hydraulic Lift |
| Lifting Capacity: |
3600kg |
| Brand: |
Shunli |
Product Description
Product Specification1.Initial Height 10.5cm
2.Solid steel X structure, good rust resistance and not easy to deformation.
3.Oil cylinder built-in explosion-proof device;
4.Mechanical safety locking with features of automatic engagement and pneumatic release;
5.Ramps can be raised as extension
6.Shot blasting and high temperature baking powder coated surface finish;
7.Wear-resisting bearings
8.24V safety control circuit
9.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
10.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
Technical parameter| Model | SHL-Y-J-30CBL |
| Lifting Capacity | 3000kg |
| Lifting Height | 1980mm |
| The Platform Length | 1800-2100mm |
| The Platform Width | 650mm |
| Initial Height | 105mm |
| Motor | 3kw |
| Power | 220V, 380V |
| Air Pressure | 0.4-0.6mpa |
Product Details

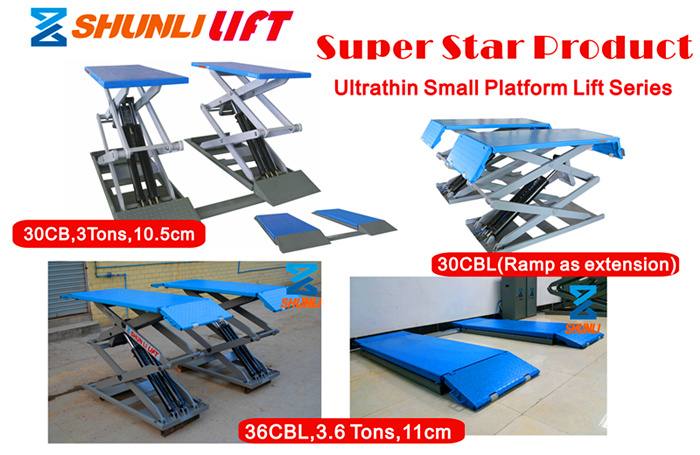

Ultrathin Small Platform Lift Series
Product advantage
1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost 0 after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
