| Prod Model: |

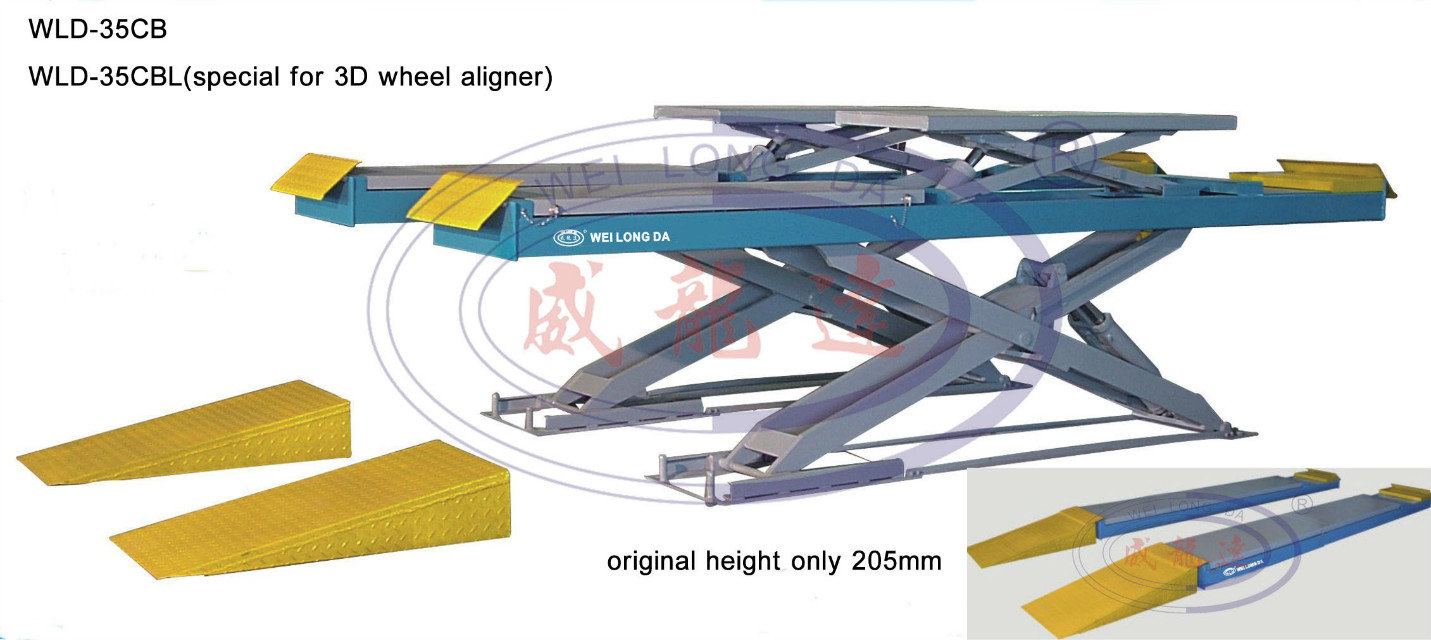

WLD-35CBL(special for wheel aligner) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld-35cbl (Special for 3D Wheel Alignment) |
| Capacity: |
3500kg |
| Lifting Height (Main Machine): |
1660mm |
| Length Of Platform (Main Machine): |
4300mm |
| Width Of Platform (Main Machine): |
625mm |
| Lifting Height (Sub Machine): |
500mm |
| Length Of Platform (Sub Machine): |
1460-1760mm |
| Width Of Platform (Sub Machine): |
565mm |
| Motor Power: |
380V/220V 2.2kw |
| Pressure Of Air Supply: |
0.4-0.6 MPa |
| Type: |
Four Cylinder Hydraulic Lift |
| Lifting Capacity: |
3.5T |
| Certification: |
CE |
| Design: |
Scissor |
| Brand: |
Weilongda |
Product Description
Features:
1. Built-in anti-explosive equipment in the oil tank;
2. Design and manufacture according to the introduction of Italy technology;
3. Ultra thin structure, the minimum thickness is only 205mm, can be directly installed in the ground;
4. Ultra precision auto lift for wheel aligner, adopt double layers and hidden type, small room space occupied;
5. The lengthened side slide plate, two telescopic lifting panel(for optional), suitable for different wheelbase models;
6. The stable performance of the oil level regulating device ensures the requirement of high precision and better synchronization performance;
7. Open the pneumatic rack insurance device automatically when declining. The structure is more reasonable and safe. Oilless and ultra abrasive resistance slider;
8. Adopts double hydraulic system, hydraulic lock and mechanical insurance three safety device. Dual pneumatic insurance device on the sub lift can meet different height requirements.
9. Conjoined and X structure, using high quality steel plate, made and designed by high precision CNC machine technology to overcome the defects of insufficient strength, easy rust and easy deformation etc, more reasonable structure and more safe;
10. The main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable;
11. WLD-35CBL is designed for 3D wheel aligner.
| Model No. | Lifting Capacity | Lifting Height (main machine) | Length of Platform (main machine) | Width of Platform (main machine) | Lifting Height (sub machine) | Length of Platform (sub machine) | Width of Platform (sub machine) | Motor Power | Pressure of air supply |
| WLD-35CBL (special for 3D wheel alignment) | 3500kg | 1660mm | 4300mm | 625mm | 500mm | 1460-1760mm | 565mm | 380v/220v 2.2kw | 0.4-0.6 Mpa |
