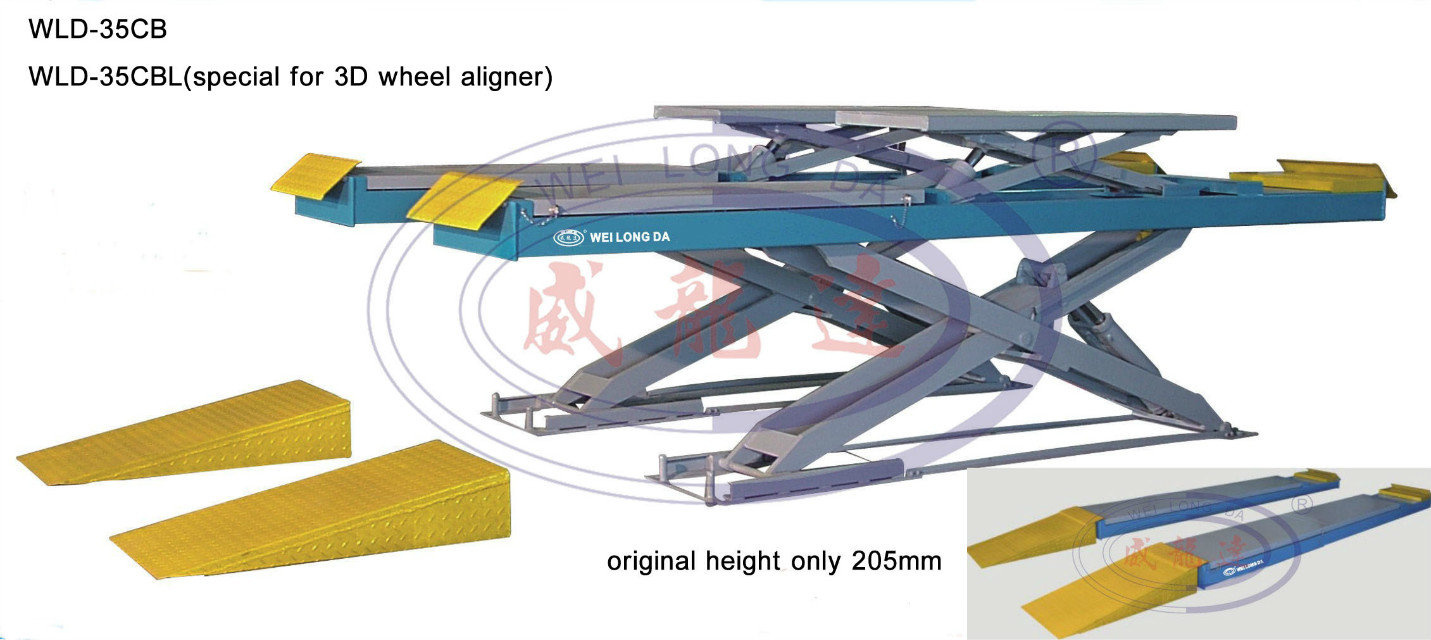

Ultra-Thin Big Scissor Lift Wld-35CB

Prod Model:	WLD-35CB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Wld-35CB
Capacity Of Main Machine:	3500kgs
Main-Lift Lifting Height:	1660mm
Sub-Lift Lifting Height:	500mm
Main-Lift Platform Length:	4000mm
Sub-Lift Platform Length:	1460-1760mm
Main-Lift Platform Width:	625mm
Sub-Lift Platform Width:	565mm
Motor Power:	380V/ 220V 2.2kw
Air Pressure:	0.4-0.6MPa
Type:	Four Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	CE
Design:	Scissor
Brand:	Weilongda

Product Description

Features:
1. Built-in anti-explosive equipment in the oil tank;
2. Design and manufacture according to the introduction of Italy technology;
3. Ultra thin structure, the minimum thickness is only 205mm, can be directly installed in the ground;
4. Ultra precision auto lift for wheel aligner, adopt double layers and hidden type, small room space occupied;
5. The lengthened side slide plate, two telescopic lifting panel(for optional), suitable for different wheelbase models;
6. The stable performance of the oil level regulating device ensures the requirement of high precision and better synchronization performance;
7. Open the pneumatic rack insurance device automatically when declining. The structure is more reasonable and safe. Oilless and ultra abrasive resistance slider;
8. Adopts double hydraulic system, hydraulic lock and mechanical insurance three safety device. Dual pneumatic insurance device on the sub lift can meet different height requirements.
9. Conjoined and X structure, using high quality steel plate, made and designed by high precision CNC machine technology to overcome the defects of insufficient strength, easy rust and easy deformation etc, more reasonable structure and more safe;
10. The main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable;

Model No.	Lifting Capacity	Lifting Height (main machine)	Length of Platform (main machine)	Width of Platform (main machine)	Lifting Height (sub machine)	Length of Platform (sub machine)	Width of Platform (sub machine)	Motor Power	Pressure of air supply
WLD-35CB	3500kg	1660mm	4000mm	625mm	500mm	1460-1760mm	565mm	380v/220v 2.2kw	0.4-0.6 Mpa
