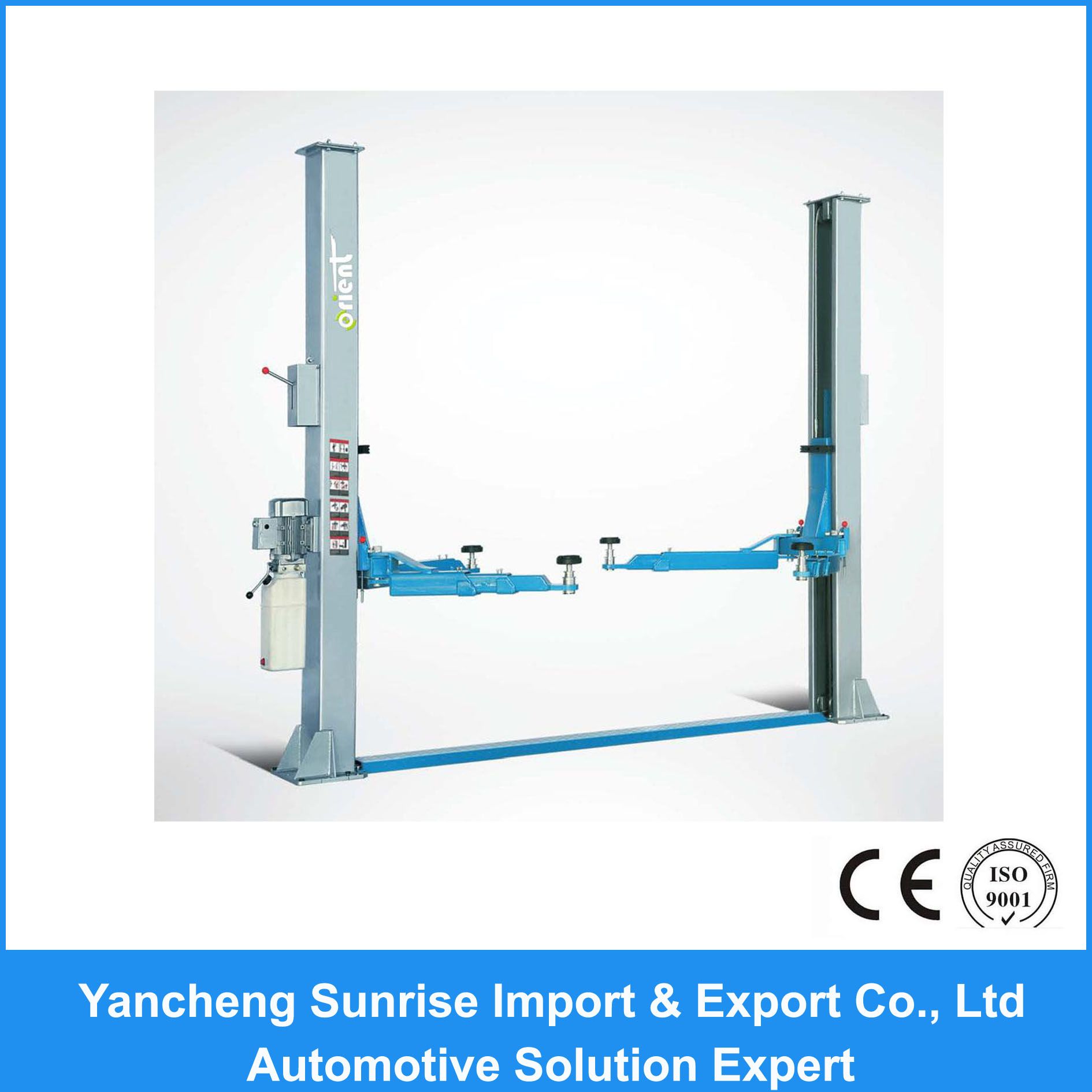

Two Post Hydraulic Auto Lift (ORL-32FB)

Name: Two Post Hydraulic Auto Lift (ORL-32FB)
Brand: ibuyautoparts.com
SKU: 748727155
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

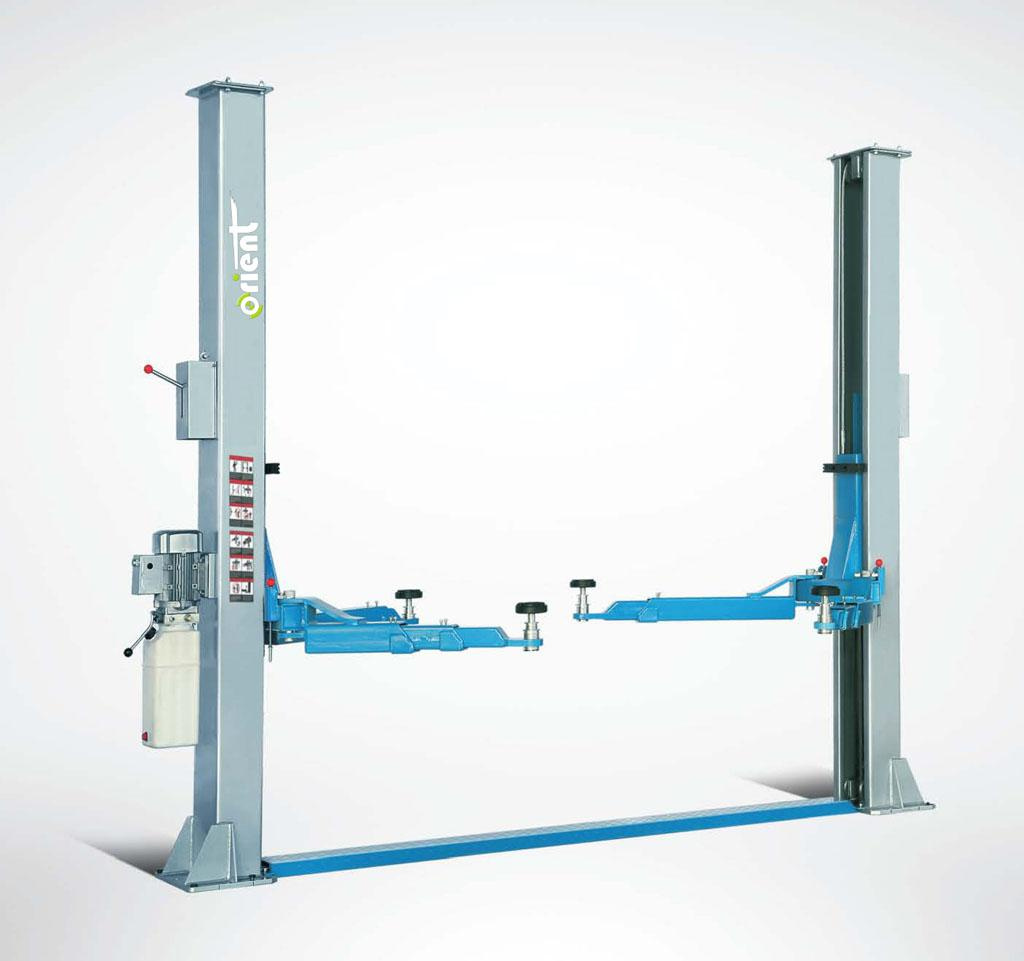

auto lift: two post hydraulic auto lift ORL-32FB

FEATURES:

*Floor plate design is ideal choice for low ceiling shop
*By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always djust the rate of decline.
*Manual lock release from one side,more convenient to use.
*Take three stages arm design, a larger adjustment range, for different vehicle chassis.
*Retractable tray with three screw designed, adjustment range 110-240mm.
*With 24V limit switch. Asymmetric column allows wider drive through clearance.
*Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
*Rubber support pad door-opening protection.
*Truck adapters can optional.Have adopted 115% dynamic and 150% static loading tested.
*With guard rail, toe protection
*CE approved

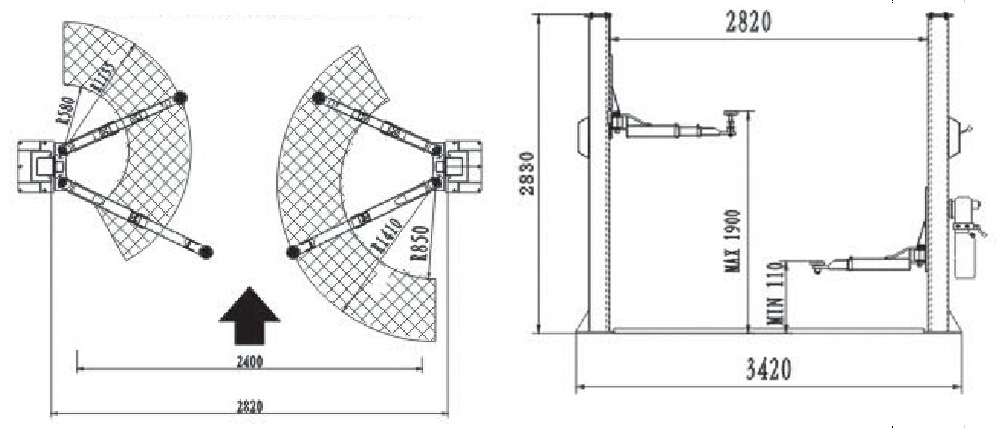

Overall Dimensions:

Lifting Capacity	32000kg
Lifting Height	1900mm
Minimum Height	110mm
Lifting Time	40/50s
Overall Height	2826mm
Overall Width	3420mm
Width Between Columns	2820mm
Motor Power	2.2kw
Power Supply	220V/240V/380V/415V
Weight	636kg/680kg
Packing Size	2900530770mm

Prod Model:	ORL-32FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Lifting Height:	1900mm
Min Height:	110mm
Certification:	ISO
Lifting Capacity:	3200kgs
Brand:	Orient
