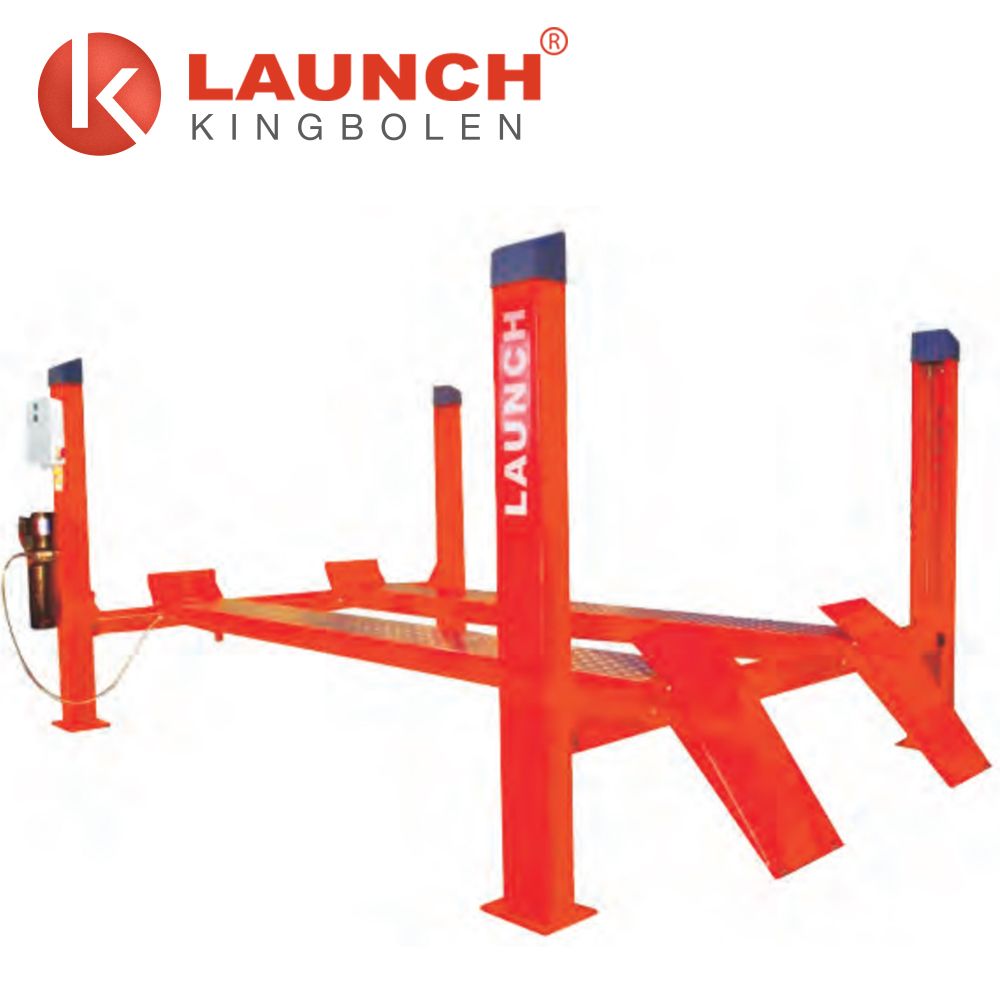

Two-Layer Concealed Plate Structure Launch Tlt440 Economical 4 Post Lift (Rated Capacity: 4 Ton) Car Lift

Two-layer concealed plate structure Launch TLT440 Economical 4 Post Lift (Rated Capacity: 4 Ton) car lifter

Product Description












TLT440 Features

Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
Driven by hydraulic cylinder and steel cable synchronization makes stable lifting and lowering.
Full-range mechanical safety protection by using the safety latches, manual lowering operation.
Cylinder travel limit device effectively protects cylinder and extends its lifespan.
Cable rupture safety system ,effectively protects vehicle from overturn.
Electric controlled lifting and lowering type is optional.
Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping.
Distance between two platforms is adjustable for the vehicles with different wheel track .
Passed national standards and CE certificated.

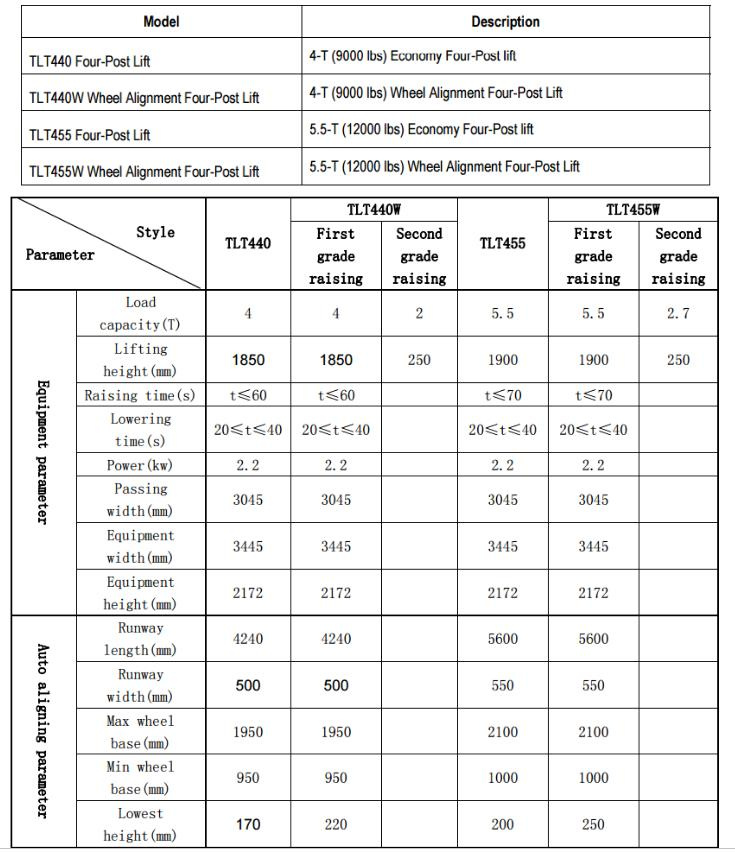

TLT440 Parameter


Rated load:    4000kg
Lifting height:    1850mm
Initial height:    170mm
Lifting time:    ≤60s
Lowering time:    ≥20s≤40s
Max. drive-on width:    3045mm
Platform length:    4240mm
Platform width:    500mm
Overall width:    3445mm
Overall height:    2172mm
Motor power:    2.2kw
Motor voltage:    3 phase/380v or Single phase/220V
Working noise:    ≤75dB(A)
Working oil pressure:    16M Pa
Working air pressure:    0.5-0.7MPa


Environmental Requirement


Working temperature:    -5ºC ~+ 40ºC
Transport/storage temperature:    -5ºC~+ 40ºC
Relative humidity:    Temperature+ 30ºC ,relative humidity 8 0 %
Height above sea level:    No more than 2000m
