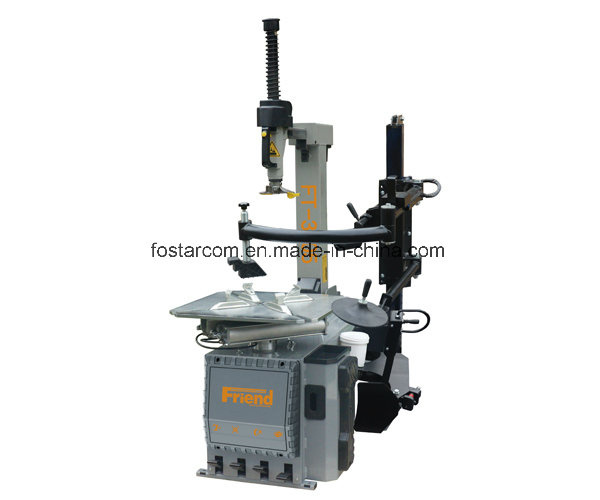

TUV Friend FT-3305dh

Name: TUV Friend FT-3305dh
Brand: ibuyautoparts.com
SKU: 731307932
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 1350-1500/Piece
Min Order:	72/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

FT-3305DH-CFR

Product features
The claw is made of special materials and is strong and durable.

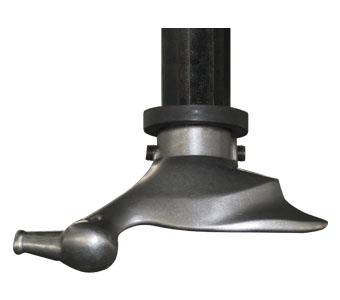

Alloy disassembly head, wear-resistant, impact resistant, protective cover, protection wheel hub
Pneumatic shovel arm, based on ergonomics, is equipped with a control handle, which is easier to operate, and can be adjusted according to the actual tire size.
Pneumatic control column back tilting, automatic positioning, pneumatic dual locking function
Six corner pressure bar using S41 six steel made in that tire when the machine is not distorted
Aluminum alloy five - way valve, durable, high reliability
Increase the thickness of the rubber pad
Mark the right auxiliary arm to facilitate the disassembly and disassembly of the tires
The front face is detachable. When the chassis is broken, it is convenient to repair.

Product performance
Aluminum alloy with large plate material
Maximum tire diameter 45 "
Maximum tire width 16 "
Card size 14 "-28"
The wild card size 12 "-25"
Selected accessories: motorcycle jig: 14 "-23" ATV jig: 8 "-17"
Voltage 110V/220V/380V 1Ph/3Ph 50/60Hz
Pressure 8-10Bar
Motor 0.75KW-1.1KW
Noise <75dB

Product packaging
Size 820*960*1150mm
Gross weight 327KG
Net weight 300KG

Standard accessories
Plastic block 2 pcs
Bird head protection block 4 pcs
Plastic big plate claw protection block 4 pcs
A standard 1pc
Air gun with 1 PC
Standard oil and water separator 1 PC
Water and oil box 1 PC

The optional parts are as follows:

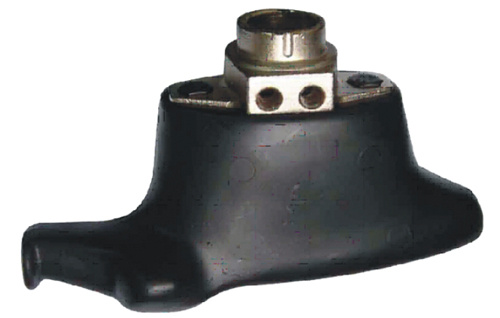

The following is the original mounting head, products strictly passed North American TUV certification system.

Prod Model:	3305DH+CFR
Certification:	ISO
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
