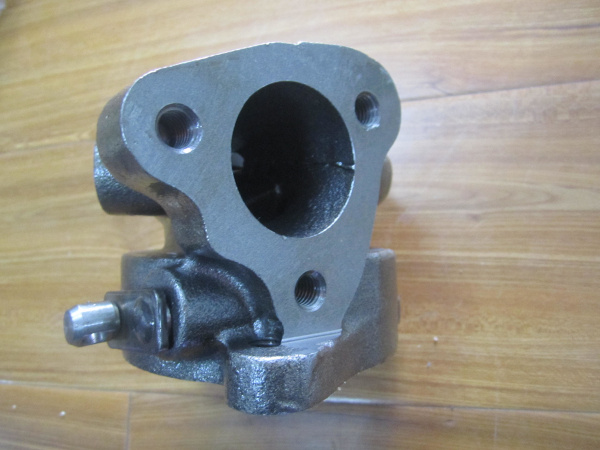

Turbocharger Parts K04-023 53049880023 Turbine Housing in High Quality

Turbocharger parts K04-023 53049880023 turbine housing in high quality

Product details

Part Number	53049880023
Previous Version	5304-988-0023, 5304 988 0023
OE number	06A145704Q, 06A145704QX, 06A145704QV
Year	2000-09
Description	Audi TT, Audi S3
Manufacturer Part Number	53049700023, 5304-970-0023
CHRA	53047100507 (5304-710-0507 ) $295.00 NEW IN STOCK, MADE IN USA
Turbo Model	K04-2275ECD5.82KCAXH
Displacement	1.8L, 1781 ccm V5 quer / transverse
Engine	BAM, BAM BFV
KW	155/210 HP
RPM Max	5900
Fuel	Gasoline
Angle α (compressor housing)	305
Angle β (turbine housing)	190
Bearing housing (water-cooled)	53041500015
Turbine Wheel	53041205015
Comp. Wheel(milled titanium)	53041232015/53041232013/53041232203
Back plate	53041515708
Heat Shield	53041652000
Repair Kit	53037110000
Turbine Housing	53041008003
Compressor Cover	53041015030
Turbine Housing AR	5
Actuator	58251104082
Settings Waste gate (pressure)	0.50 bar
Settings Waste gate (lift shaft)	5.50 mm
Gasket (turbine inlet)	210646
Gasket (turbine outlet)	210676
Gasket (oil outlet)	210317

Refone AUTO POWER is committed to delivering the highest standard of quality and safe products and services to our customers. In Refone AUTO POWER, we are committed to business excellence as encapsulated by the following principles:

1) Manufacturing products which meet customers' specifications
2) Striving to meet customers' target values
3) Monitoring customer satisfaction
4) Shipping products on the date required by customers
5) Reasonable stocks and fast and timely shipment
6) Good prices with professional services and high quality standards
But our products will be under good quality control as follows
1) Sturdy and durable products, with a long lasting working life
2) Turbine housings with a high volume of Nickel
3) Passed the balancing test and the high speed GHRA balancing test.

Our Advantage

1. Quality Warranty: 1 Year

2. High speed balancing tested.

3. Produce turbo as customer's requirment.

Welcome to inquire! We will feedback within 24 hours!


Turbo Model	Reference No.	OEM No.	Application/ENGINE
K03	53039880003	TW:33*45 11,CW:32*46 4/4		VW Golf III 1.9 TD/Passat B4 1.9 TD
K03	5303-988-0005/	058145703L/058145703LX/ 058145703LV/058145703E/ 058145703H/06A145703B
K03	5303-988-0006/ 454083-1/0002	1002829/1010435/1106003/ R95VW6K682AA/95VW6K682AA		Engine: 1Z / AHU / ALE Capacity: 1896 ccm Power: 66 Kw
K03	53039700009 53039880009/706977/VVP1	0375C8/0375E3/0375E1/0375E0/0375H7	Peugeot 406 1999-04/ Peugeot 206 Hdi  99-90HP	Berlingo 2.0 HDI Engine: DW10TD 2.0L
K03	5303-988-0011/0044	06A145704L/06A145704LX/ 06A145704LV/06A145704/ 06A145703G/06A145703A	Audi A3 1.8 T (8L)
K03	5303-988-0015/ 454159-0001/2	038145701A/AX/AV/D	Audi A3 1.9 TDI (8L) Audi A4 1.8T Upgrade 210BHP	Engine: AGR Capacity: 1896 ccm Power: 90 HP
K03	5303-988-0016	078145701S/078145701R/078145701L/078145703B/ 078145703C/078145703D/078145701H/078145703S	AUDI A6 TDI,225HP,2.7/V6 cc,P,078 145 703L AUDI ALLROAD,Engine:izquierdo,225HP,2.7/V6 cc,P,078 145 703L AUDI S4,Engine:izquierdo,260HP,2.7/V6 cc,P,078 145 703L
K03	5303-988-0017	078145704S	Audi A6 2,7 T (C5) right side)
K03	5303-988-0018	96 324 278 80	CITROEN XANTIA HDi/PEUGEOT 406 HDi, Engine/Code:DW10ATED/0375A6,110HP,2.0/4 CC,D
K03	5303-970-0025	058145703J/058145703JX/058145703JV/058145703K
K03	5303-988-0026/0035	06A145704B/06A145704BX/06A145704BV/06A145703Q/06A145704A	AUDI A3/SEAT LEON 180HP,1.8/4 CC,P
K03	5303-988-0029	058145703J/N/JV/JX	VW Passat1.8T 150HP, Audi A4 1.8T  99-01, Audi A6 1.8 T  99-01	ANB/APU 1.8L P, APU  150HP
K03	5303-988-0034/0075,53031205023	500335369	Iveco Daily 2.8 TD
K03	5303-988-0049	06A145704H 06A145704HX 06A145704HV	Seat Alhambra 1.8 T	Engine: AWC
K03	5303-988-0050/0024	0375G3/0375G4/0375C9/0375F5/ 9640168280
K03	5303-970-0051 5303-988-0051	ZY34027010/ ZY34027010		Engine: DW10ATED
K03	5303-970-0052	06A145713D/06A145713DX/ 06A145713DV/06A145704T/06A145713F	Audi A3/TT 1.8T, VW Bora Sport 1.8T, VW Golf GTI 180HP, Seat Leon 1.8T 2000-, Skoda Octavia 1.8T 2001- 180HP	AUQ/ARZ180HP, APP/ARY 1.8L P, AUQ 1.8L P, APP/AUQ/AJQ/AR 1.9L P
K03	5303-970-0053 /0058	06A145704S/06A145713B/06A145713M	Audi A3/A4 1.8T 01-02, Audi A3 upgrade 97-, Bora Sport/ Golf IV 1.8T, Skoda Superb/Octavia 1.8T 2002	Engine: ARZ/AWT 1.8L P Capacity: 1781 ccm Power: 150 HP
K03	5303-988-0055
K03	53039880057
K03	5303-970-0062	9643350480	Peugeot Boxer/Citreon Jumper--2.1L	Citroen Xsara/Picasso
K03	5303-988-0070	078 145 704Q	AUDI A6 TDI/AUDI ALLROAD,2002 Engine:derecho,250HP,2.7/V6 CC,P
K03	5303-970-0096	4C106K682AA	Ford Otosan Passenger car-2.5L	Ford Otosan Passenger car-2.5L
BV43	5303-988-0106	06D145701HX/GX/ 06D145701D/E/H/G		Audi A4,2.0L TFSI(BGB/BWE)
K03	53039880116	504136797	FIAT DUCATO 2.3
K03	53039880122/0144	28200-4A470	KIA Sorento 2.5 CRDi
K03(BV43)	5303 988 0145/ 5303 988 0127	28200-4A480 282004A480	Hyundai Grand Starex/H-1 crdi (D4CB16V)(B.W.)	Engine: D4CB 16V  2497 ccm  170 HP
K04	53049500001		AUDI BORA 1996 TO 2000
K04	5304-970(988)-0001 MITSB-49135-06020	914F6K682AB/AF/AG/ 1113104/1057139/6611235	Ford Transit IV 2.5TD  2496mm,100HP	FT 190 4EA/4EB/4HC
K04	53049700015		Audi A4 1.8T Upgrade/VW Passat 1.8T	Upgrade 1.8LP /H.P 210HP
K04	5304-988-0022	06A145704P	Audi S3 1.8T  210HP, Audi TT Quattro 225HP	AMK  1.8L P APX  1.8L P
K04	5304-988-0025	078 145 703M	Audi RS4 Bi-Turb N/Side	AZR 2.7L P
K04	5304-988-0026	078145704M	AudiRS4 Bi-TurboO/Side	AZR 2.7L P
K04V	53049880032	070145701E
K14	5314-988-6445 49135-05010	5315489-00022	Iveco/Opel
K16	5316-970-6713	35242041F	Range Rover 2.5 TDI
K16	5316-970-7001	850595/850583/90423023/90486265		Calibra A 2.0i Turbo 4X4 Engine: C20LET
K16	5316-988-7030/7003/7008	9040961299/0399/2399
K27	5327 970 6206/01	0030965599KZ	Mercedes Trucks	OM422 14.6L D
K27	5327-970-6217
K27	5327-988-6441/ 465366-5013S	3660962299	Mercedes Truck OM366---6L 127KW
K27	5327-988-6442			OM442
k27	5327-970-6447			OM366
K27	53279986530/53279886519, 53279886530	20768576, 85000598, 8113594, 8192482		VOLVO FL6
K27	5327-988-6710	5327 988 6710 313425/313394/315101 466646-13	3660968699	OM366
K27	5327-970-6743	26T6K682AA	Ford Otosan Truck---6.0L 185hp
K27	5327-970-7059	X7808600	Ashok Leyland	W06DT Euro 1,2.4L,120KW/163HP
K27	5327 988 7192	9060969099		Benz OM906LA ENGINE:OM906LA-E2(6.4)
K27	5327 988 7210	9060969799	Mercedes-Benz  Truck  OM906LA-E2(6.4)
K33	53339706406 53339886406	389901	DAF FA 95 .310 Engine: WS225
KP35	5435-970(988)-0000	OEM: 14411-BN701/ OEM: 14411-BN700	Nissan Micra Dci 03 64HP/ Nissan Micra Dci 03 82HP	K9K704 1.5L D
KP35	5435-970-0000/5435-988-0002	OEM:8200022735/ 77001473122,8200119854	Renault Clio 1.5Dci/Renault Kangoo 1.5Dci 65HP	K9K700 1.5L D
KP35	5435-988-0001/ 5435-988-0007/ 5435-988-0009/	OEM: 2S6Q6K682AA/AB, 9684759980	Citroen C2,C3,C4,C5/ Peugeot 206/ 307  70HP/Ford Fiesta TDCi	DV4TD .4L D/ 8HX 1.4L D
KP35	5435-970-0005	OEM: 73501343	Fiat Punto JTD/ Opel Corsa CDTi	Engine:SJTD 1.3L D
KP35	5435-998-0011/  5435-998-0033
KP39	5439 988 0001 0003/ 0006/0017,	038253014A/16L/  038253019P	VW PoloTDI2002-, Skoda Fabia/Octavia TDI 2001-, A3 1.9 TDI (8L)100HP	Engine: ATD 1.9LD 100HP
KP39/BV39	5439 988 0011/ 5339 988 0022/ 751851-5003S	038253016R	VW Caddy/Golf TDI , Audi A3 TDI (8P/PA)105HP , Seat Cordoba/lbiza tdi 2003-	Engine: AVQ/BJB/BKC/BXE, ATD  1.9L D 100HP
KP39	5439-988-0027, 5439-988-0002	8200204572/8200578315	Renault	K9K-THP
