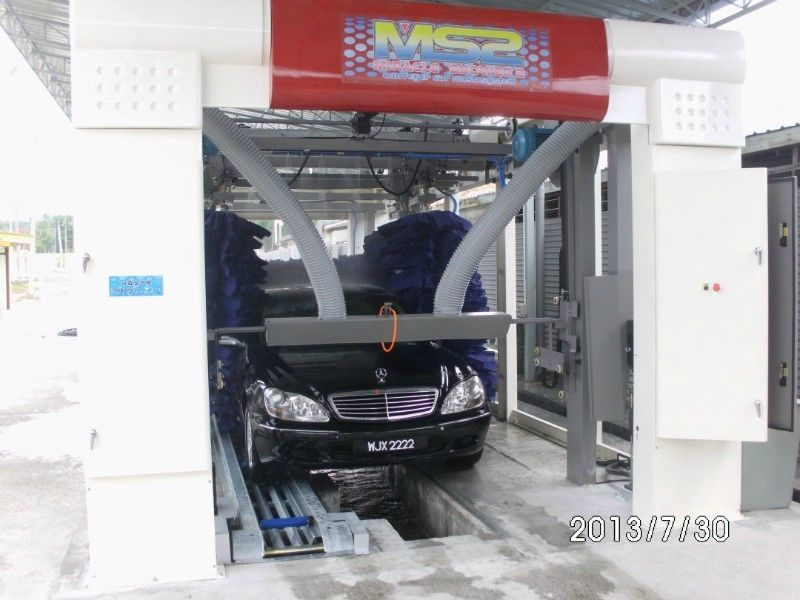

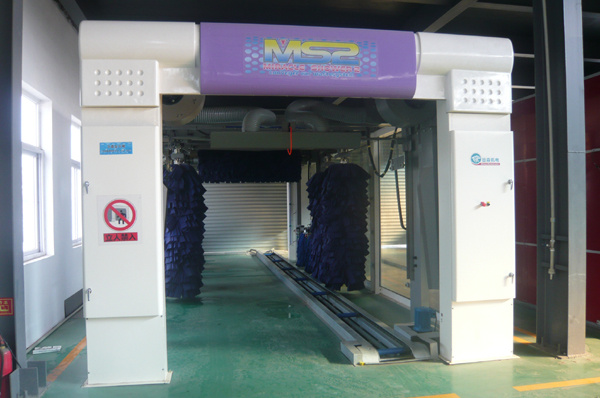

tunnel car wash machine CC-670 & 690
full auto car wash machine
can spray water,foam & wax.dryer is automatic
7 or 9 brushes choice
washing speed is 1.5minute
item |
tunnel car wash machine |
model no. |
CC-670/690 |
machine size |
L8m*W3.8m*H3.44m/L9.5m*W3.8m*H3.44m |
Conveyer length9.96m(inc.wheel guiding device) |
assembling size |
L1100mm*W3800mm |
power required |
AC380V50Hz 20KVA(35KW) |
water required |
pipe DN25 flow≥90L/min |
gas required |
0.75-0.9Mpa/flow≥0.1m³/min |
surface roughness |
error≤10mm |
washing type |
car,jeep,coach within 10 seats |
car washing size |
L5.3m*W2.2m*H2.2m(wheelbase≤3m) |
washing time |
normal 1'30"/quick wash 1'12" |
Hot dip galvanized frame |
1 set |
shampp spraying system |
1 set |
wax spraying system |
1 set |
blower system on profile modelling |
1 set |
high pressure water jet system on entrance |
optional |
bottom wash system |
optional |
voice system |
With |
intelligent |
managing\diagnose\run |
Fault self-testing system |
Automatic fault display,can self test |
entering car guiding system |
The left and right wheels can be driven at the same time correction |
circuit control system |
PLC control Systerm by Mitsubishi in japan |
operating board |
key type waterproof film switch |
Conveyer motor |
KOKI,in TaiWan |
brush |
2nd generation Cotton flannel,foam brush |
Brush Motor |
SKK(japan) |
Top Brush Lift reducer |
KOKI,in TaiWan |
Side Brush Lift reducer |
KOKI,in TaiWan |
thermoprotection relay |
Schneider(France) |
cocontactor |
Schneider(France) |
optoelectronic switch |
Bonner(USA) |
High pressure water pump |
Comet |
Control button |
Schneider(France) |
Electromagnetic valve |
CKD(japan) |
Brush |
aluminium alloy brush pipe and soft cloth brush |
water consumption |
220L/set |
power consumption |
0.8kwh/set |
shampoo consumption |
7ml/set |
wax consumption |
12ml/set |
item |
tunnel car wash machine |
model no. |
CC-670/690 |
machine size |
L8m*W3.8m*H3.44m/L9.5m*W3.8m*H3.44m |
Conveyer length9.96m(inc.wheel guiding device) |
assembling size |
L1100mm*W3800mm |
power required |
AC380V50Hz 20KVA(35KW) |
water required |
pipe DN25 flow≥90L/min |
gas required |
0.75~0.9Mpa/flow≥0.1m³/min |
surface roughness |
error≤10mm |
washing type |
car,jeep,coach within 10 seats |
car washing size |
L5.3m*W2.2m*H2.2m(wheelbase≤3m) |
washing time |
normal 1'30"/quick wash 1'12" |
Hot dip galvanized frame |
1 set |
shampp spraying system |
1 set |
wax spraying system |
1 set |
blower system on profile modelling |
1 set |
high pressure water jet system on entrance |
optional |
bottom wash system |
optional |
voice system |
With |
intelligent |
managing\diagnose\run |
Fault self-testing system |
Automatic fault display,can self test |
entering car guiding system |
The left and right wheels can be driven at the same time correction |
circuit control system |
PLC control Systerm by Mitsubishi in japan |
operating board |
key type waterproof film switch |
Conveyer motor |
KOKI,in TaiWan |
brush |
2nd generation Cotton flannel,foam brush |
Brush Motor |
SKK(japan) |
Top Brush Lift reducer |
KOKI,in TaiWan |
Side Brush Lift reducer |
KOKI,in TaiWan |
thermoprotection relay |
Schneider(France) |
cocontactor |
Schneider(France) |
optoelectronic switch |
Bonner(USA) |
High pressure water pump |
Comet |
Control button |
Schneider(France) |
Electromagnetic valve |
CKD(japan) |
Brush |
aluminium alloy brush pipe and soft cloth brush |
water consumption |
220L/set |
power consumption |
0.8kwh/set |
shampoo consumption |
7ml/set |
wax consumption |
12ml/set |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
