Function Instruction

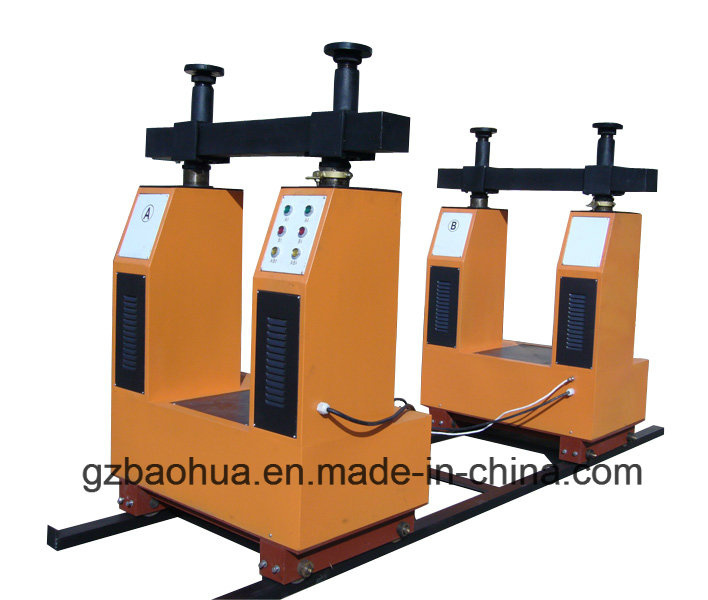

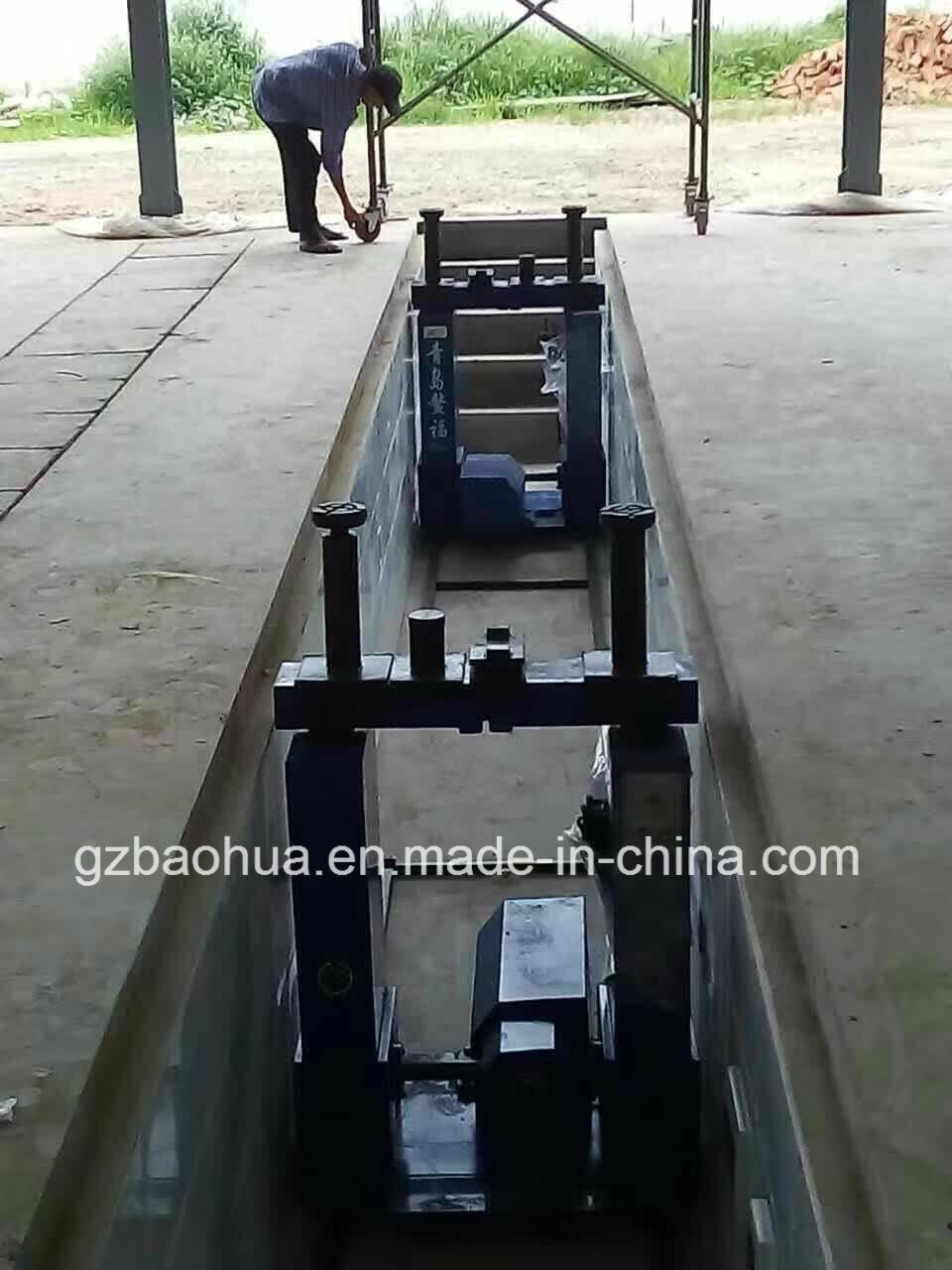

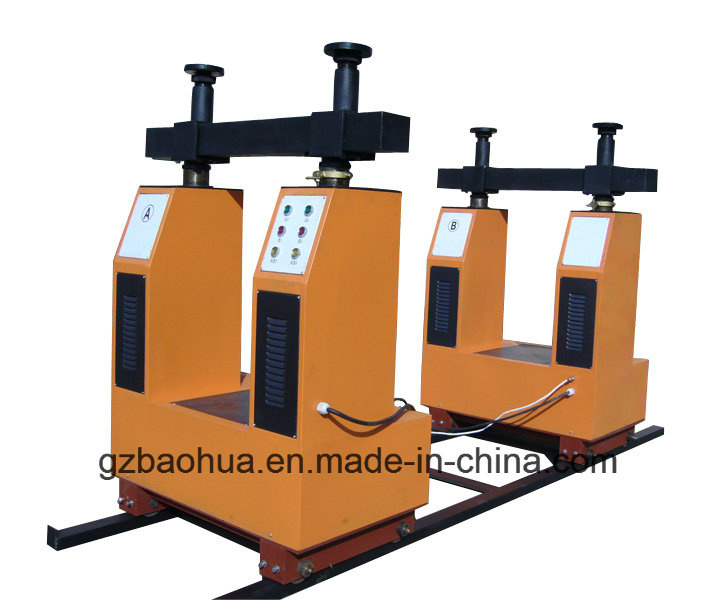

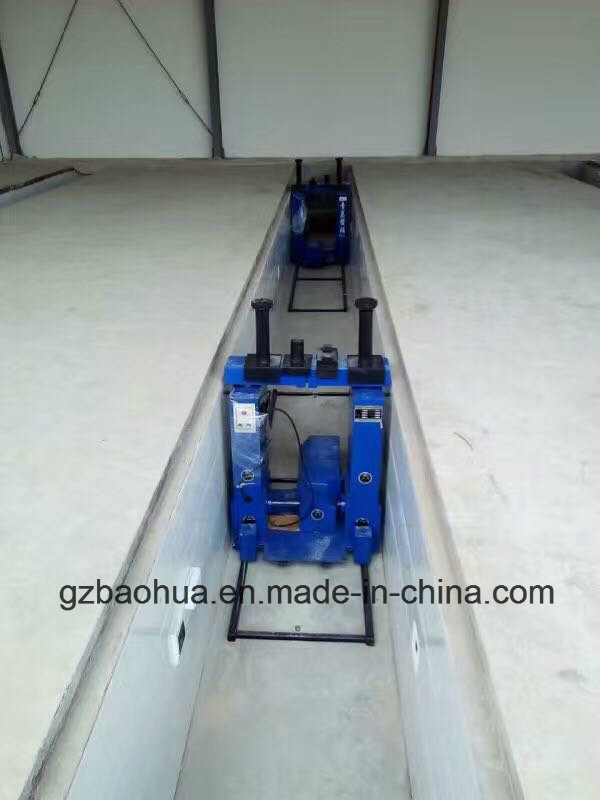

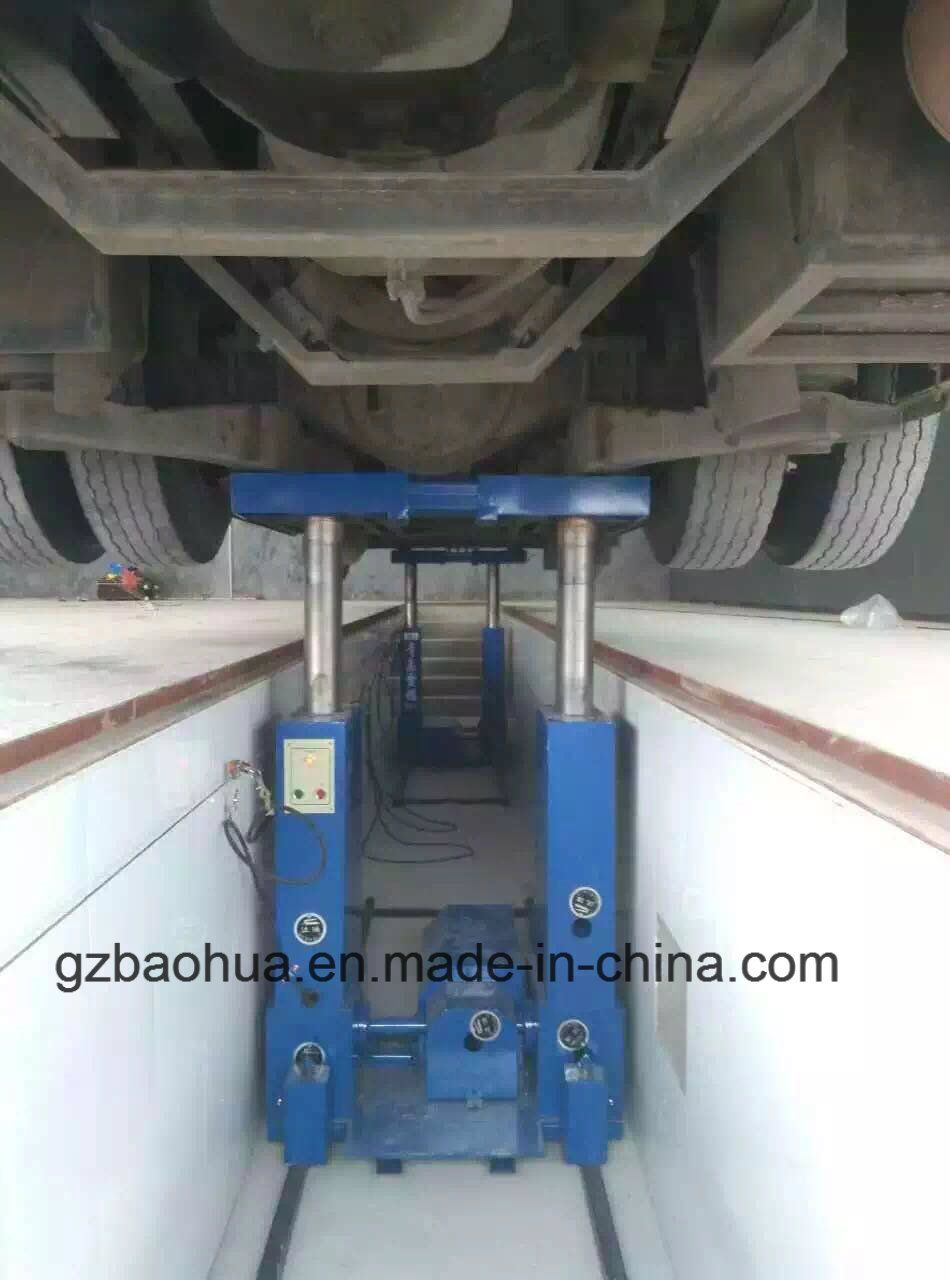

The jack of BL-50 type used for inspection pit is fit for hoisting operation for large and medium scale loading automobiles and vehicles of all kinds when they needs maintenance. It is convenient and safe as well as reliable to use this equipment. Two sets of equipments could be combined used, so it is available to operate any one equipment while the other equipment can rise and fall separately or two equipments rise and fall at the same time.
The equipment consists of motor, worm wheel box gear speed-shift structure, hoisting beam rising system and mobile enhancing salver, main body, shell, track and electric control system .

Technical Parameter

Maximum hoisting force: 500KN
Maximum hoisting height:

using single upper beam: 800mm;
installing mobile bracket: 1080mm

Maximum hoisting width: 960mm
Vertical supporting-point range: 1600~7000mm
Maximum working journey of the jack: 670mm
Motor Power: 2.2KW
Outer dimension (Length*Height*Width):910*760*1280mm

Prod Model:	BL-50
Lifting Capacity(T):	50t
Lifting Height(mm):	800-1080mm
Overall Width(mm):	960mm
Warranty:	3 Years
Motor Power:	2.2kw
Max. Hoisting Width:	960mm
Type:	One Cylinder Hydraulic Lift
Certification:	CE
Design:	Trench
Lifting Capacity:	30t
Brand:	Baohua
