Truck Rearview Camera for Night Vision

Name: Truck Rearview Camera for Night Vision
Brand: ibuyautoparts.com
SKU: 621431494
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS -CS07
Definition:	420TVL
Chip:	CCD
Waterproof Grade:	IP67

Product Description

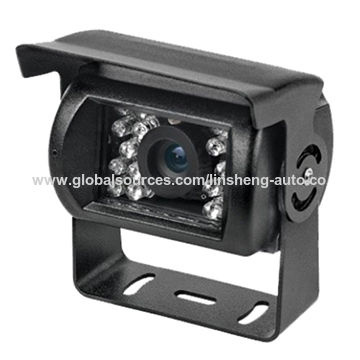

Trucks rearview camera:

1. Image pick-up sensor: 1/3-inch color CCD
2. Metal housing
3. Horizontal resolution (TV lines): 420TV lines
4. Number pixels: NTSC: 510(H)*492(V); PAL: 500(H)*582(V).
5. Scanning system:
NTSC: 525 lines, 60 field/sec
PAL: 625 lines, 50 field/sec
6. Sync system: internal synchronization
7. Gamma characteristic: 0.45
8. S/N ratio: ≥48dB (AGC off)
9. Electronic shutter time on: NTSC 1/60-1/100,000sec, PAL 1/50-1/100,000sec
10. Off: NTSC 1/60sec, PAL 1/50sec
11. Usable illuminations: 1 lux (F:2.0), 0 lux with built-in IR LED
12. IR project distance: 15 meters (18 units infrared LED)
13. IR status: under 10 lux by CDS
14. IR power on: CDS auto control
15. Lens: board lens 3.6mm/F2.0 (optional)
16. Video output: 1.0Vp-p, 75ohms
17. Gain control (AGC): auto
18. Cable: BNC jack
19. Water resistance: IP67
20. Operating temperature: -20°C-70°C, 95% RH max
21. Storage temperature: -30°C-80°C, 95% RH max
22. Power supply: DC12V±10%, 600mA/24V DC for option

Located at Guangzhou city south of China, LINSHENG INTERNATIONAL ENTERPRISE Co., Ltd specialized in automobile Safety and Security Systems and Accessories electronics with decade rich of experience.

Mainly of our products are Pickups Tonneau Cover Remote Control System, Wheelchair Platform Remote Control System, Commercial Vehicles Parking Sensors(wired and wireless), and Trucks Power Window Kits and Central Locking. Manufactured under strict quality control measures, products with CE, FCC certified by SGS; Which are ready for Europe, USA, Canada and Australia developed countries.

We can provide customized design and molding support, our R&D department 16 engineers team always standing by for your OEM and ODM projects. Addtionally, both software and hardware technicians always working in the meanwhile will speed up your projects finished and perfected in a shorter time.

To work with a qualified and reliable supplier, please do contact us today!
