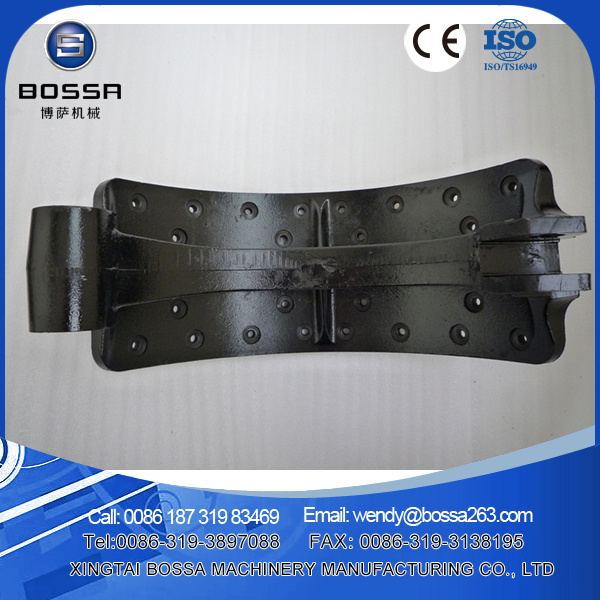

Iron Casting Truck Brake Shoe For HINO
Cast Iron Brake Shoes
Cast to the SAE J434 D4512 standard
CNC machined and CNC rotary drilled in order to hold tight countersink depth tolerances ensure problem-free riveting
Roller-side slot is broached and induction hardened to specification
E-coated to ensure maximum corrosion resistance
Assembled with bushings installed
Quality control equipment used for inspection:
spectrometer
digital metallographic microscope
Brinell hardness tester
Critical quality criteria inspected:
graphite flake type and size
hardness
chemical composition
spheroidizing rate
The following are sizes of shoes that we have produced:
20.25" x 7"
16.5" x 7"
18" x 7"
20.25" x 5"
17.25" x 4"
20.25" x 4" |
20.25" x 5"
16.5" x 8"
16.5" x 6"
220mm
160mm |
Custom casting pattern making is available for custom specifications.
Casting weights from < 1 kg up to 20 kg.
We are manufacture of brake shoes, we have 1000 moulds about brake shoe which covers Japanese, European, Korean,US trucks.
ACCEPT CUSTOMIZED AS YOUR DRAWINGS OR SAMPLES
WELDED BRAKE SHOE & CASTED BRAKE SHOE
| BRAKE SHOE APPLY TO |
|
|
| MERCEDES BENZ | BPW | HINO |
| MAN | DAF | NISSAN |
| SCANIA | SAF | ISUZU |
| VOLVO | MERITOR | FUWA |
| NORTH BENZ | HOWO | ACCEPT CUSTOMIZED AS YOUR DRAWINGS OR SAMPLES |
PARTS NUMBER AS BELOW:
| 5.091.26.64.2 | 4718 |
| 05.091.46.17.0 | 4720 |
| 05.091.27.83.0 | 4710 |
| 05.091.27.54.2 | 4711 |
| 05.091.28.29.0 | 4715 |
| 05.091.19.07.0 | 4719 |
| 05.091.14.46.0 | 4725 |
| 3.054.0052.00 | 4726 |
| 3.054.0053.00 | 4223 |
| 2.056.0120.00 | 4317 |
| 2.056.0121.00 | 4674 |
| 3.054.0120.00 | 4524Q |
| 3.054.0122.00 | 4524P |
| SAF.AL-OK | BENZ160 |
| EANTON 807685 | BENZ180 |
| MERITOR A3222F1982 | BENZ220 |
| EATON 1005840 MERITOR A3222E1837 | VOLVO 175 |
| EATON 805442/805640 | VOLVO 200 |
| MERITOR A3222E1381 | VOLVO 220 |
| A-JA0508-001 | VOLVO 175(OLD) |
| Meritor E-2685 | VOLVO 175(NEW) |
| MERITOR A3222S1293 152.05.533 | VOLVO 200(OLD) |
| 150.25.412 MERITOR A3722N66 | VOLVO 200(NEW) |
| FRUEHAUF ACF003379001 | VOLVO 225(OLD) |
| MERITOR 3222Q1291 | VOLVO 225(NEW) |
| MERITOR 3222A2003 | BPW180 OLD |
| 152.05.191 | BPW180 NEW |
| 152.00.007 | BPW200 NEW |
| MEIRTOR A3222J1570 | BPW200 OLD |
| FUWA | BPW220 |
| ROCKWELL/MERITOR A3222M2223 | BPW360 |
| ROCKWELL/MERITOR 3222D2006 152.24.724 | BPW3020 NEW 19574 |
| EATON 819707 | SAF180(OLD) |
| SAF200(OLD) |
| SAF180(NEW) |
| ROCKWELL/MERITOR 3222A2159 | SAF200(NEW) |
| ROCKWELL/MERITOR 3222K2169 | SAF-SK9 |
| ROCKWELL/MERITOR 3222P2200 | SAF-SK11 |
| EATON 819705 | SAF203 |
| 1443E |
| EATON 819708 | 1308Q |
| EATON 805676/805677 | 1308E |
| EATON 805679/805678 | 4311 |
| ROCKWELL/MERITOR A3222E1383 | 4514 |
| ROCKWELL/MERITOR A3222J1440 | 4515P |
| A 620 420 00 19 BENZ-3934202519 | 4515P+W |
| A 620 420 03 19 BENZ-3894206119 | 4515Q |
| A 620 420 05 19 BENZ-6244200219 | 4515E |
| 270.827-9 3090075 `19938 VL/87/1 | 4515X3/E4644 |
| 272.841-4 3095196/ 3090076 19939 Vl/88/1 | 4516 |
| 270.829-5 | 4516Q |
| 30.951.95 | 4517Q+ |
| 0270 827-9 | 4551Q |
| 30.951.96 | 4551E |
| 0270 828-7 | 4551 |
| 30.951.97 | 4551 |
| 0270 829-5 | 4702 |
| 4706 | 4703 |
| 4707 | 4704 |
| 4709 | 4705 |
Other Product Can Supply
| Leading Product |
| ACCEPT CUSTOMIZED AS YOUR DRAWINGS OR SAMPLES |
| BRAKE SHOE | ASSEMBLY OD AXLE HOUSING | ENGINE SUPPORT |
| BRAKE LINING | REDUCER HOUSING | STEERING GEAR SUPPORT |
| BRAKE DRUM | GEARBOX HOUSING | FRONT AND REAR STEEL PLATE |
| WHEEL HUB | GEAR CASE | MULTI-AXLE STEERING GEAR SUPPORT |
| BRAKE SHOE SUPPORT | GEAR CASE COVER | LEAF SPRING SEAT |
| WHEEL REDUCTOR | BEARING SEAT OF REAR AXLE FINAL REDUCTOR | UNDER LEAF SPRING SEAT |
Advantage:
1) Noiseless
2) Steady Friction Coefficient
3) No Dust
4) Resist Wearing
5) Long Life-span
6) Strictly detection and inspection system
7) Have all kinds of brake shoe, brake lining
8) For brake lining material that semi-metallic, non-asbestos and asbestos are for your choice
9) Products are developed in short period of time.
products including brake shoes, brake linings are for various kinds of vehicle, strictly in accordance with the requirement of quality system ISO 9001:2000.
Brake shoe Brand:
1.The brake shoe is mainly supply for famous brand of heavy-duty trucks in the world, for example: GUNITE / SCANIA / VOLVO / MERCEDES BENZ / BPW / RENAULT / DAF / MAN/ IVECO / SAF / ROR / TRAILER / KIC / HINO / NISSAN /WEBB / JAPAN / MITSUBISHI / YORK / HOWO.
Packaging Information |
| Description | Qty /pallet | Qty /20" |
| bare brake shoe | 168pcs | 3360 |
| lined brake shoe assembly | 126pcs | 2520 |
| 2 lined brake shoe with kits in carton box | 90 sets | 1800 |
Packaging Details: | HS code:8708301000 our brake shoes package usually use wooden pallet, Waterproof membrane or wooden case, carton, or as your special requirements. The wooden case is fumigation wooden, can meet the export standard.
|
FAQ
MOQ |
No MOQ for stock items. |
Warranty |
12 Month warranty. If the items are faulty, we will replace them for you. |
Price |
Most reasonable and competitive price |
Courier service |
UPS , DHL ,TNT and EMS for light weight items |
Delivery Time |
Stocked items, within 5 days |
Payment Method |
T/T, Western Union, L/C |
PACKING & SHIPPING
- Samples order are available.
- Delivery time: within 15workdays samples for 7-10days.
-Terms of payment: TT, Western Union, L/C, Moneygram,ect.
-Shipping Way: by internation/express mail (DHL, UPS, FEDEX) for samples.
If you interested in our brake shoes, please do not hesitate to contact dora soon.
contact:
Ms. Happy Zhang (manager)
phone:+86-18131921669
- Fast response, reply all in the 24hours
-Team work, more efficiency.
-experienced sale with different & fluent languages for your special english.
-Welcome customized design and package design
-Unique energy save solutions are waiting for your with our well- trained and professional engineer team.
-We have the strong advantage to serve our agent and distributor.
-We are always here for your.
Ms Wendy, here waiting for your inquiry.
BOSSA GROUP is one group company that produce various of casting &machining parts, Engine filters for trucks and tractors etc. The head office is in Xingtai city.
Xingtai Bossa Machinery Manufacturing Co., Ltd. is one branch factory of Bossa Group for casting and machining, that located in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting and machining spare parts for customers since 1991. It covers an area of over 40000 square meters and an architectural area of 12000 square meters,
Bossa Machinery mainly produce the casting & machining products for heavy duty trucks, agricultural machinery and construction machinery. The leading products: Axles, wheel hub, brake drum, brake shoe, leaf spring bracket, transmission box, cylinder block, cylinder head etc casting goods. Some times we help customer make the Axle assemble etc.
Xingtai Milestone Import & Export Trading Co., Ltd is one branch company of Bossa Group, That specialized in designing, developing producing and selling all kinds of engine filters for generators, construction machines, commercial vehicles, buses, agricultural machinery, heavy-duty trucks etc.
For our filter quality are good and instead of original ones used in the after-sales market. Such as Fleetguard Perkins, Deutz, Caterpillar, Komatsu etc.
BOSSA GROUP use advanced technology and a quality management system to guarantee the quality of products. According to ISO9001 system standard, We formulate perfect quality inspection standards and establish a scientific and strict quality guarantee system. 30% our products according to customer's drawing or sample.
BOSSA and MST are our Logo used for overseas market. All of our goods import and export through our Milestone company. We will use about 10 years and make as famous brand in the word.
We believe that quality is a life of one enterprise and service creates future.
Welcome customers all over the word to contact us.
