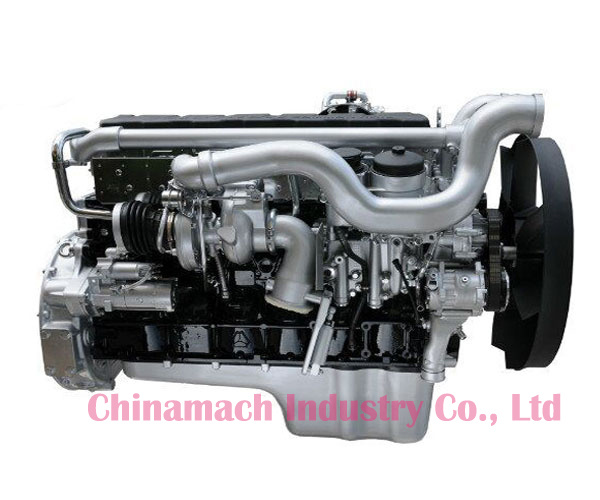

Truck Part D2066 Man Engine for Truck
| Price: |
US $ 23000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
D2066 |
| Truck01: |
Man Truck |
| Truck02: |
Daf |
| Truck03: |
Benz |
| Certification: |
TS16949 |
| Discharge Standard: |
Euro V |
| Body Material: |
Steel |
| Cylinder: |
Multi-cylinder |
| Fuel: |
Diesel |
| Cold Style: |
Water-cooled |
| Stroke: |
4 Stroke |
| Power: |
Electronic |
| Start: |
Electric Start |
Product Description
The SINOTRUK's MC11 series engine synchronized product technology, production process, quality standards, release process of German MAN company's D20 series engine. Main fittings adopt mainly MAN company original brand such as a world-class supplier. MC11 engine have synchronous production with Germany, and meet the road National standard IV - V, the non-road National standard III. Its Performance, fuel economy, reliability, durability, noise and other indexes reached the international leading level.
Product features
Vermicular cast iron cylinder block, Long men style unique structure design: Sharply higher stiffness and strength of the cylinder body, reduce weight
Integral cylinder head: Good sealing, high strength, good rigidity, high reliability
Overhead camshaft: Valve-train sharply higher stiffness, precision control with gas phase, improves combustion, and at the same time reduces the mechanical damage and failure rate
Cylinder block and cylinder head independent cooling waterway and lubricating oil way: Eliminate risk of oil and water leakage between cylinder block and cylinder head; Significantly improve the cooling performance and reliability
The rear timing gear chamber: Effectively reduce gear noise
Advanced modular design: 25% fewer parts, reduce the sealing components, reduce the leakage risk
Long life: B10 life up to 1.5 million kilometers
Long oil change cycle: Oil change mileage of 60000 kilometers
Economic and efficient: The minimum specific fuel consumption of 186 g/kW. H
Powerful: MC11 maximum rated power of 440 PS, maximum torque of 2100 nm; | Model | MC11.32 | MC11.36 | MC11.40 | MC11.44 |
| Injection system | High pressure common rail EDC-MC |
| Mode | Straight column, water cooling, four stroke, turbocharged in the cold |
| Cylinder number | 6 |
| No. Of valve/cylinder | 4 |
Bore×stroke
mm | 120×155 |
Displacement
L | 10.518 |
Rated power
KW/PS | 235/320 | 265/360 | 294/400 | 324/440 |
Rated speed
R/min | 1900 |
Maximum torque
N·m | 1600 | 1800 | 1900 | 2100 |
Maximum torque speed
R/min | 1000~1400 |
Lowest fuel consumption rate
G/kW•h | 186 |
Noise
(1 meters SPL)
dB(A) | ≤94 |
Net quality
Kg | 955 |
| Emission level | Road State - IV - country V, non road state III |

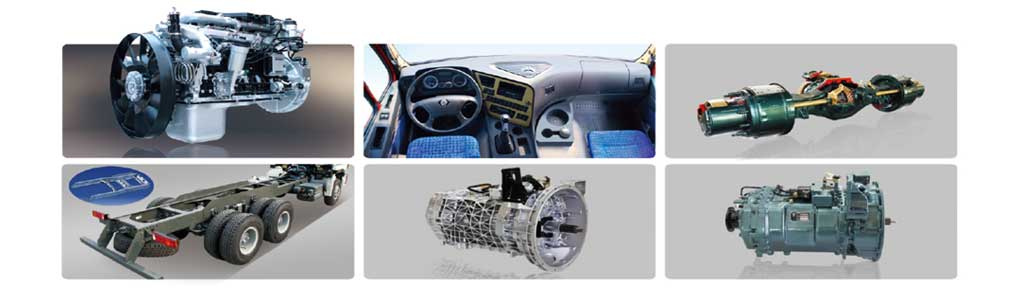

We can provide:
TRUCK
Sales Chinese trucks and construction machinery, Provide modificationsu, pgrades, consulting services
SPARE TRUCK
Supply China Truck spare parts and construction machinery parts. Products Include: Sinotruk HOWO, Weichai Power, Fonton, Shacman, XCMG, SHANTUI, SANY, SDLG
SERVICE
Provide cargo warehousing, packaging, shipping and export agency services
Agent procurement, inspection The inspection agency
Mobile: 0086-18653136590
Chinamach Industry Co., Ltd was established in 2009, is located in Jinan, Shandong. Here is a famous production base of trucks. And CHINAMACH is one of professional suppliers in Chinese truck parts and construction machinery parts field.
We are products include: SINOTRUK HOWO trucks and Full line original spare parts (A7 T5G T7H), weichai power Fonton, Shaanxi, cummins etc. And XCMG, SHANTUI SANY Heavy construction machinery parts.
CHINAMACH is products are sold to many countries and regions, such as Russia, , Kazakhstan, Iran, Algeria, and so on. Provide support for the CREC SinohydroMCC. The products enjoy good reputation in customers' local market.
We are will work harder, more professional, faster service for our customers to provide higher quality auto parts.
We sincerely hope to cooperate with more customer from domestic and overseas. If you want to get more competitive, please do not hesitate to contact me.
