Truck 3D-22 "Touch Screen Four Wheel Positioning Instrument

Truck 3D-22
Price: US $ 2300-2500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: FSD-W300T
Communication Mode: Wire Communication
Condition: New

Product Description

Model: 3D FSD-W300T    four wheel positioning main technical parameters
Project measurementmeasurement accuracyMeasurement range
Display precision +/-0.01mm/+/-0.01°

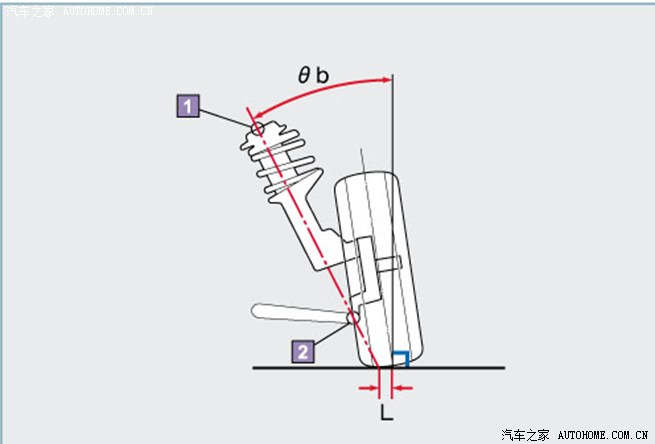

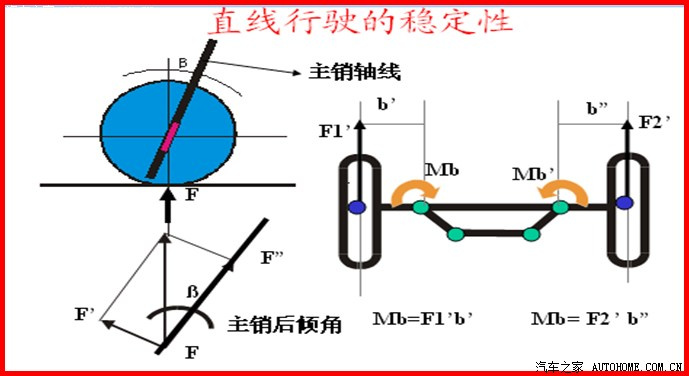

After the dip +/-0.01°+/-20°
Inside dip+/-0.01°+/-20°
The front beam angle +/-0.01°+/-10°

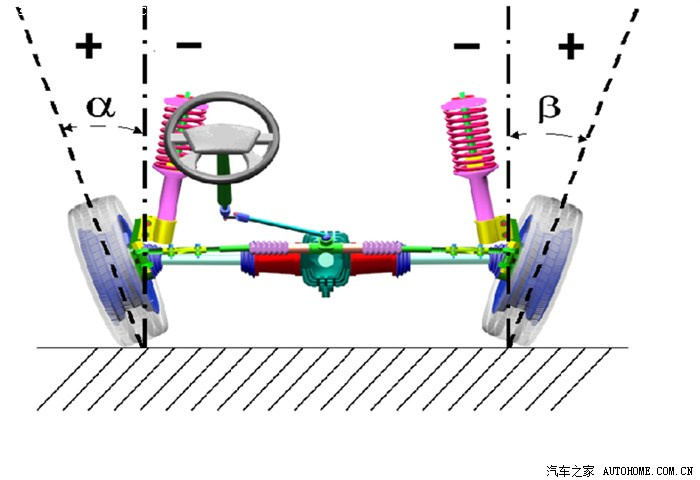

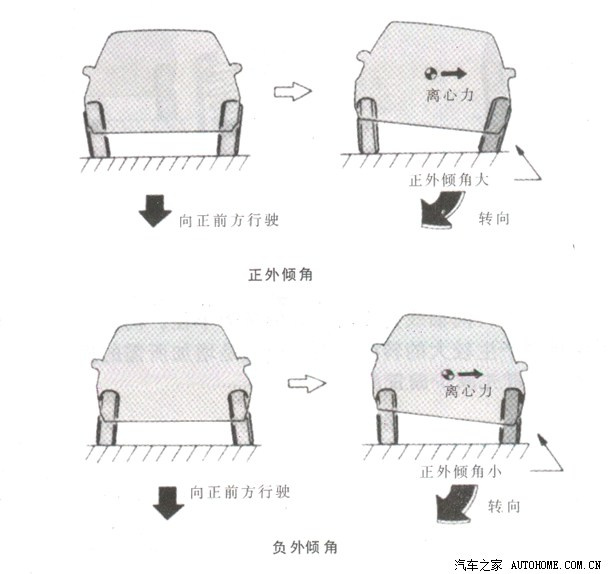

Camber+/-0.01°+/-10°

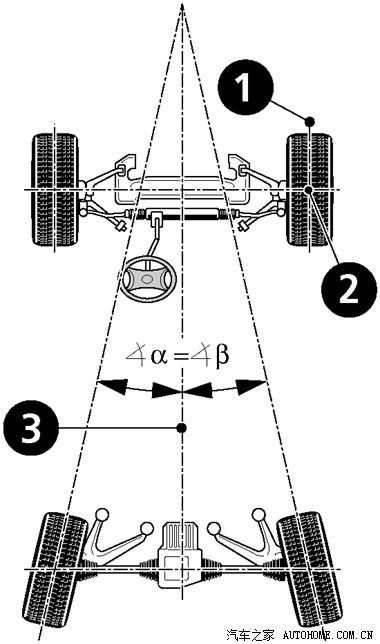

Advancing angle+/-0.01°+/-10°

Retreat angle+/-0.01°+/-10°
Maximum steering angle +/-0.01°+/-50°

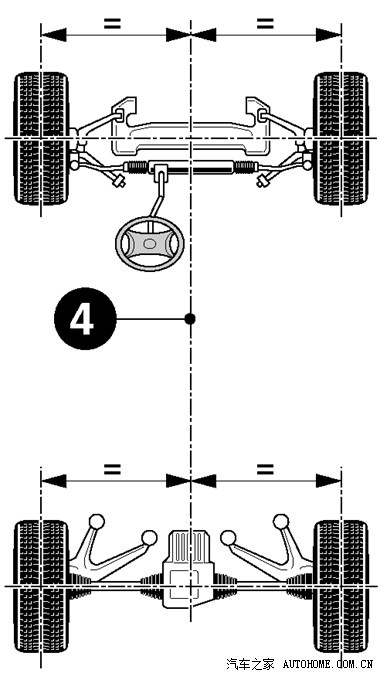

Track+/-0.01°0-4500mm
Wheelbase+/-0.01°0-16000mm
FOSTAR-W300T   3D for TrucksTechno   FOSTAR  3D wheel aligners for trucks are designed to take measurements and make adjustments on trucks in automotive companies, car service stations, automotive manufacturing plants, and diagnostic centers.

It allows taking measurements on heavy-duty vehicles with the wheelbase up to 16 meters.

The operation of the wheel aligners is based on measurements of wheel axis angle parameters by video cameras and high-precision image targets.


Wheel aligners include the following basic parts:

1. Computer console

ergonomic operating control panel;
full-size keyboard ;
membrane keyboard duplicating main functional keys
wireless remote control;
up-to-date high-speed quad-core processor;
21.5" color widescreen LCD monitor;
color inkjet printer;
TechnoVector 3D software.


2. Self-centering clamps.

Self-centering clamps fit disks up to 10-30" rims.

3. Targets.

Target boards covered with reflective sheeting do not contain electronic elements and consist of:

4.Machine vision system.

Machine vision system housings are vertical pillars equipped with precision network camera units based on high-quality matrices. Data transfer from the camera units to the PC is carried out over TCP/IP.

Such a location of the machine vision system allows you to take into account individual peculiarities of a certain workplace and allows a passage.

The machine vision system allows automatic recognition of targets installed on vehicle wheels and the position of the probe target and high-precision recognition of their geometrical position in space.
5. FOSTAR 3D software

Microsoft Windows 7  is used as a licensed operating system.

The 3D program interface allows you to see position and wheel alignment angles on the screen in real-time mode.

The user-friendly interface and advanced Help and Support System allow even novices to learn how to use the wheel aligner quickly and start working.

There are the most up-to-date mathematical algorithms used in the software that allow for the slightest image distortions made by the optical system.

The software includes an advanced report control system.
6. Accessories package.

Heavy duty truck 3D four wheel positioning instrument
Product features: chassis and Aluminum Alloy column fixed classic design, the "big 32" LED-32 display, Daxian multi-function LCD tv. Tablet PC.
The camera uses imported SONY camera, camera lens and phase 5 million, the speed and performance of the camera response in the industry is outstanding, 30 photos per second speed, as a result of the static detection technology, static algorithm, free cart series, precision machine detection data is less than 0.1 mm and 0.1 degrees.
The machine software for independent research and development, support a variety of standard plate reflectors, reflective panels support black interchangeability.
The standard reflector imported super reflective film, the four round of the same size, made of 7075T6 aerospace aluminum material, durable. This Guan Jian warranty for five years.
Beam for the aluminum alloy, the column for the production of steel alloy, can be adjusted height, easy to use.
Standard: a crossbeam assembly, a reflector assembly and a box body assembly, computer assembly.
Computer display standard: 32 inch. (the printer and the speaker are selected by the customer)
Registration accessories are as follows:
Number of parts
Camera and lamp panel assembly 2
The main beam and 1 sets of wire harness assembly
Case stud and wire harness 1 sets
Reflecting board assembly 4 pieces
A total of 1 sets of host computer
Display assembly 1
Four point fixture assembly 4 pieces
Corner panel assembly 2 pieces
Steering wheel lock 1
Brake lock 1
Block 2 block
Operating manual 1 copies
Model: FSD-KCW3003D four wheel positioning main technical parameters
3D FSD-300Mfour wheel positioning main technical parameters Model:
Measurement measurement accuracy Measurement range Project
Display precision +/-0.01mm/+/-0.01.

After the dip +/-0.01 +/-20 degrees
Dip +/-0.01 Inside degree +/-20
The front beam angle +/-0.01 +/-10 degrees
+/-0.01 +/-10 degree Camber
Angle +/-0.01 Advancing degree +/-10
Angle +/-0.01 Retreat degree +/-10
Maximum steering angle +/-0.01 +/-50 degrees
+/-0.01 0-4500mm degree Track
+/-0.01 0-16000mm degree Wheelbase
Enterprise advantage:
Independent intellectual property rights, the future of sustainable development opportunities.
3D four round of the main parts of the supporting brands are the company's products brand.
Product performance:
Using the world's most advanced three-dimensional image measurement technology, the accuracy of 0.01, measurement of the car to achieve a variety of data angle of 0.1 degrees or less than 0.1 mm.
Can measure the long wheelbase and a variety of global and real estate cars and trucks.





Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
