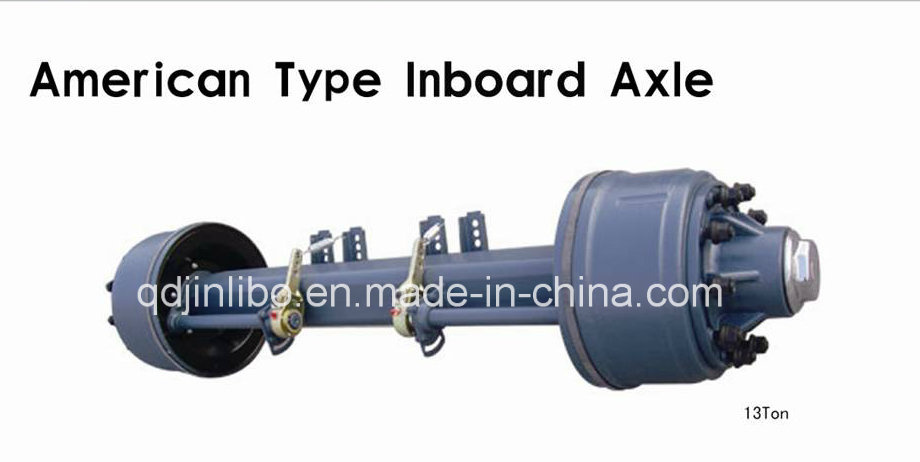

American type inboard axle for trailer
High quality & best price
CE: ISO9001: 2008 ISO / TS16949: 2009
Manufacturer
We can produce as to your requirements
High quality&best price
Introduction of enterprise:
Qingdao Jinlibo Trade Co., Ltd. Has introduced sophisticated equipment from overseas to develop and manufacture semi-trailer axles and related parts. Holding ISO9001: 2000 certification for our management system, we faithfully follow the stipulations of this standard so as to guarantee high product quality.
Characteristics:
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, estend serbice life.
4. Easy for ABS installation.
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap habe O rings, high property for sealing.
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
Scope of our business
1. Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
2. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
3. Landing gear
4. Fifth wheel (2'' 3.5'')
5. King pin (2'' 3.5'')
6. Semi trailer
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
Contact information:
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD | WHEEL REG.DIA | DIM D | BEARING | WHEEL RIM SIZE | BEAM SIZE | AXLE CAPACITY | SPRING SEAT INSTALLATION | TRACK LENGTH | WEIGHT |
| KMM1318I | 420*180 | ISO | 10*M22*335 | 281 | 725 | 518445 518445 | 20'' | S150 | 13T | ≤450 | 1840mm | 372KG |
| KMM1320I | 420*200 | ISO | 10*M22*335 | 281 | 735 | 518445 518445 | 20'' | S150 | 13T | ≤450 | 1840mm | 385KG |
| KMM1322I | 420*220 | ISO | 10*M22*335 | 281 | 745 | 518445 518445 | 20'' | S150 | 13T | ≤450 | 1840mm | 408KG |
| KMM1318Q | 420*180 | JAP | 8*M20*285 | 221 | 725 | 518445 518445 | 20'' | S150 | 13T | ≤450 | 1840mm | 372KG |
| KMM1318J | 420*180 | JAP | 8*M20*285 | 221 | 725 | 518445 518445 | 20'' | S150 | 13T | ≤450 | 1840mm | 372KG |
| KMM1622I | 420*220 | ISO | 10*M22*335 | 281 | 748 | 518445 220149 | 20'' | S150 | 16T | ≤450 | 1850mm | 430KG |
| KMM1620I | 420*200 | ISO | 10*M22*335 | 281 | 738 | 518445 220149 | 20'' | S150 | 16T | ≤450 | 1850mm | 420KG |
| KMM1618I | 420*180 | ISO | 10*M22*335 | 281 | 728 | 518445 220149 | 20'' | S150 | 15T | ≤450 | 1850mm | 415KG |
| KMMR1318I | 420*180 | ISO | 10*M22*335 | 281 | 725 | 518445 518445 | 20'' | R127*19 | 13T | ≤450 | 1840mm | 372KG |
| KMMR1320I | 420*200 | ISO | 10*M22*335 | 281 | 735 | 518445 518445 | 20'' | R127*19 | 13T | ≤450 | 1840mm | 385KG |
| KMMR1322I | 420*220 | ISO | 10*M22*335 | 281 | 745 | 518445 518445 | 20'' | R127*19 | 13T | ≤450 | 1840MM | 408KG |
| KMMR1318J | 420*180 | JAP | 8*M20*285 | 221 | 725 | 518445 518445 | 20'' | R127*19 | 13T | ≤450 | 1840mm | 372KG |
| KMMR1318IQ | 420*180 | ISO | 10*M22*285.75 | 221 | 725 | 518445 518445 | 20'' | R127*19 | 13T | ≤450 | 1840mm | 372KG |
| KMMR1622I | 420*220 | ISO | 10*M22*335 | 281 | 748 | 518445 220149 | 20'' | R127*25 | 16T | ≤450 | 1850mm | 430KG |
| KMMR1620I | 420*200 | ISO | 10*M22*335 | 281 | 738 | 518445 220149 | 20'' | R127*25 | 16T | ≤450 | 1850mm | 420KG |
| KMMR1618I | 420*180 | ISO | 10*M22*335 | 281 | 728 | 518445 220149 | 20'' | R127*25 | 15T | ≤450 | 1850mm | 415KG |
Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.
Jin Libo axle is your wise and beneficial choice.
Our main products.
Germany type axle: 16ton 14ton 12ton
English type axle: 16ton 13ton
American type axle 16ton 13ton
Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake
SUSPENSION
24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
